Summary of Contents for RTC AP22

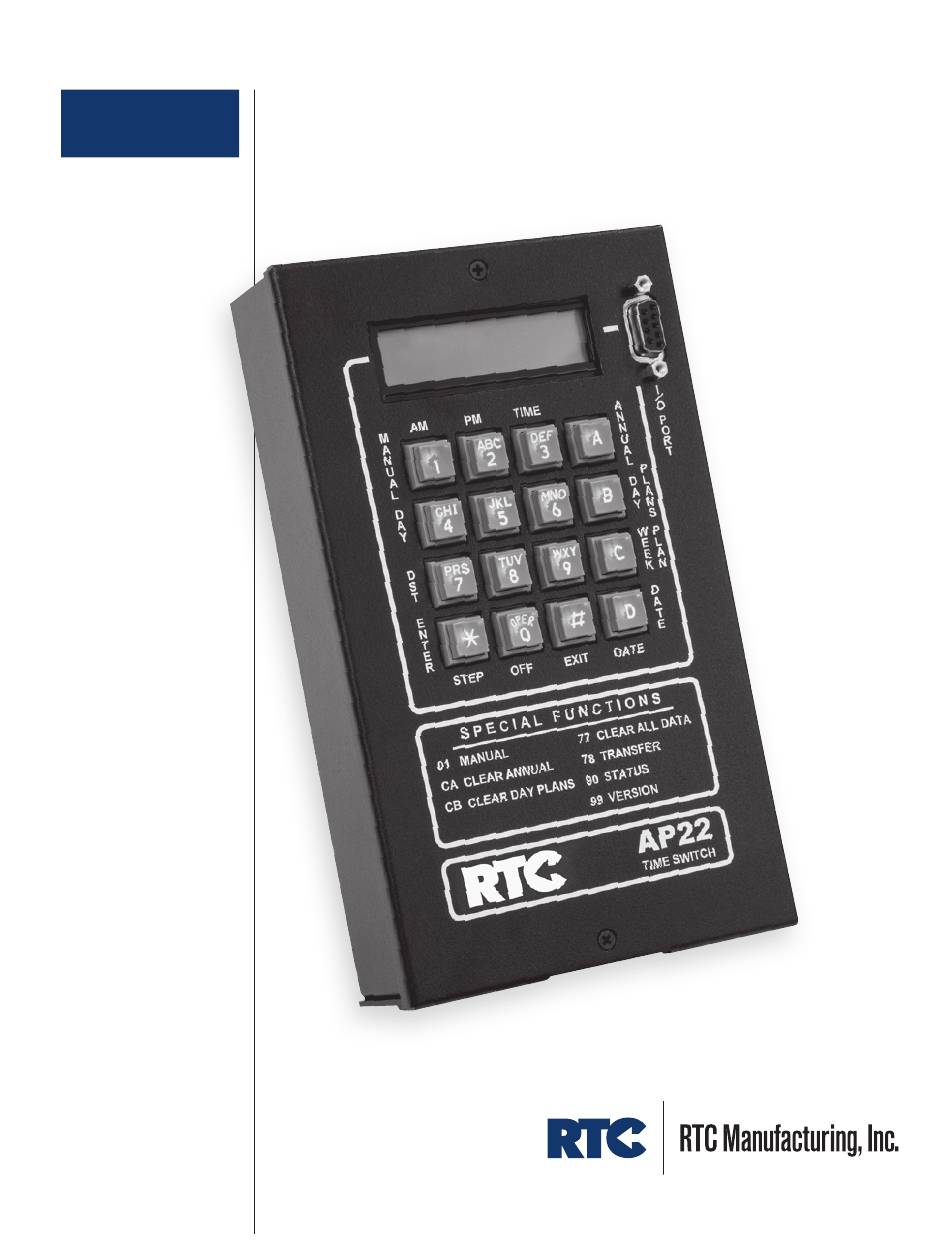

- Page 1 RTC-TRAFFIC.COM AP22 PROGRAMMING MANUAL 012318/18027...
-
Page 2: Table Of Contents
AP22 TABLE OF CONTENTS PROGRAMMING MANUAL Introduction Installation Overview Programming Features Programming Introduction Programming Sequence Primary Programming Function Keys Programming Instructions Program Time-Of-Day Program the Date Program the Day-Of-Week Program Daylight Saving Time Program Day Plans Clear the Program in a Day Plan... - Page 3 View Modem Details Sunrise and Sunset Time Latitude and Longitude Read GPS Coordinates Data Clear Data Transfer Reset the AP22 Status Version Clear Annual Plans Clear Day Plans Digital Adjustment Server Connection Information CONVERTING AP22 SOFTWARE TO RTC CONNECT SOFTWARE WARRANTY...
-
Page 5: Introduction
INSTALLATION OVERVIEW The AP22 may be attached by using the keyhole tab on the back of the enclosure. Two mounting holes on the inside of the enclosure and below the circuit board are accessible for additional support. -
Page 6: Programming Introduction
There are 36 annual plan program steps available. CURSOR — The flashing square character indicating the data entry fields of the AP22. The cursor indicates the data at that position can be entered or changed by using the AP22 keyboard. -
Page 7: Primary Programming Function Keys

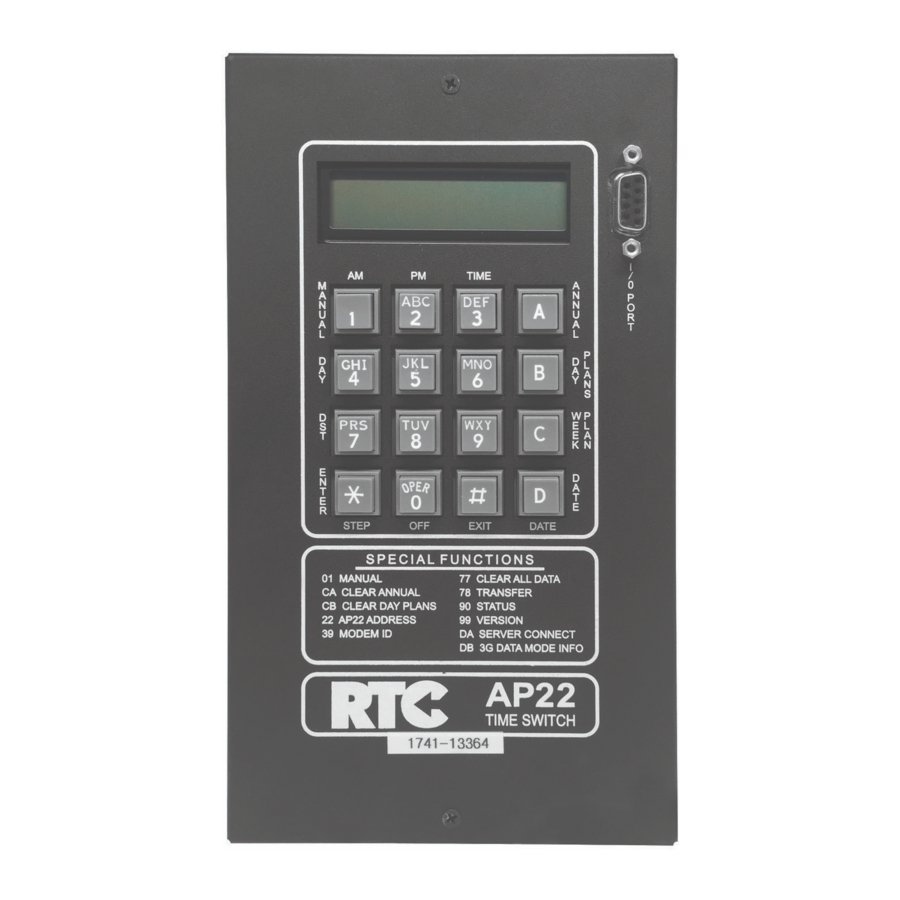

AP22 Programming Manual PRIMARY PROGRAMMING FUNCTION KEYS MAIN DISPLAY ANNUAL PLAN DAY PLAN WEEK PLAN DATE ENTER EXIT... -
Page 8: Programming Instructions
AP22 Programming Manual PROGRAMMING INSTRUCTIONS Programming must begin from the MAIN DISPLAY. The MAIN DISPLAY shows the DAY, TIME, DATE and RELAY status. To Return to the MAIN DISPLAY at any time, press the EXIT (#) key. Press the ENTER () key to “step” through a field without changing the settings. -
Page 9: Program The Date
AP22 Programming Manual PROGRAM THE DATE 1. From the MAIN DISPLAY, press D (DATE) then ENTER (). C o m m a n d ? 0 D Step 1 2. Key in the Month (ie: 01 for January) then ENTER (). -
Page 10: Program The Day-Of-Week
1. From the MAIN DISPLAY, press 4 (DAY) then ENTER (). C o m m a n d ? 0 4 In all versions of AP22 4.04 or earlier this screen allows the day-of-week to be set. In CP22 versions the time switch correctly enters the day-of-week based on the date entered. -
Page 11: Program Day Plans
0 8 : 3 0 A R e l a y s : - - Depicts the programming of PLAN 1, STEP 01 to The AP22 has a total of 10 different day plans. Day Plan 1 is the turn RELAY 1 “OFF” at 8:30 AM. -
Page 12: Clear The Program In A Day Plan
AP22 Programming Manual 5. Key in the Minute for this Step, then ENTER (). P l a n : 1 S t e p : 0 0 0 7 : 1 5 A R e l a y s : - - Step 5 6. -
Page 13: Program The Default Week Plan
B = User selected Day Plans for the Default Week Plan The default week plan is the school schedule the AP22 runs every week. After programming all the day plans, assign any day plan to any day of the week to accommodate the normal weekly school schedule. -
Page 14: Program Annual Plans
AP22 Programming Manual PROGRAM ANNUAL PLANS The AP22 has a total of 36 different annual plans. The annual plan feature uses an exception-day concept for programming school holidays, spring break, early releases, the start and end of summer vacation and summer school, etc. -
Page 15: Clearing Annual Plans
AP22 Programming Manual 7. Key in the End Day, then ENTER (). E n d ? 0 3 / 1 3 / 0 0 E x = 0 2 m m / d d / y y Step 7 8. Key in the End Year, then ENTER (). -
Page 16: Transfer A Program
AP22 Programming Manual TRANSFER A PROGRAM 1. To transfer the program from one AP22 to another, press 78, A t t a c h C a b l e , then press ENTER () on the time switch the program will be transferred from. -
Page 17: Wiring Harness Color Charts
AP22 Programming Manual WIRING HARNESS COLOR CHARTS AP22 PIN # WIRE COLOR FUNCTION STANDARD WIRING BLACK/WHITE 120 VAC WHITE AC-(NEUTRAL) GREEN CHASSIS GROUND YELLOW/BLACK RELAY 1 COMMON YELLOW RELAY 1 N/C BLUE/BLACK RELAY 2 COMMON BLUE/WHITE RELAY 2 N/O ORANGE... -
Page 18: Programming Records
AP22 Programming Manual AP22 PROGRAMMING RECORDS DAY PLAN RECORD NORMAL DAY PLAN 1 RELAY 1 RELAY 2 STEP HOUR AM/PM DEFAULT WEEK PLAN A = Factory selected Day Plans for Default Week Plan 0 = No school Day Plan 1 = Normal Day Plan... -
Page 19: Annual Plan Record
AP22 Programming Manual ANNUAL PLAN RECORD START STEP MONTH YEAR MONTH YEAR PLAN... -
Page 20: Common Screen Commands
COMMON SCREEN COMMANDS This document was last edited September 2017 for version 3.20. Some commands may not be available in previous versions of firmware. Visit RTC-Traffic.com for the latest version of AP22 firmware. INSTRUCTIONS To start any of the command screens below, type the screen number on the keypad from the MAIN DISPLAY and press ENTER (). -
Page 21: Day Plan Setup
AP22 Programming Manual SCREEN 0B — DAY PLAN SETUP This screen is used for setting up a day plan. The day plan number can P l a n : 1 S t e p : 0 0 run from 1–9. Each day plan consists of 16 steps. The steps are the times the relays change to the programmed state. -
Page 22: Gps Status
This screen displays the status of the optional GPS device attached to the connector on the AP22. This device will set the time in the AP22 when it varies more than 10 seconds away from the GPS satellite constellation. G P S A c q u i r i n g S A T The screen will report ‘Not Receiving’... -
Page 23: Modem Time
AP22 time will sync to the tower time. If the AP22 time does not sync, then the modem is not connected to the network. If the time is correct to the minute, but the hour is off then it is likely the AP22 is set to the wrong time zone. -
Page 24: Latitude And Longitude
10, using Command 41. Then use Command 42 and see if the GPS coordinate changes to the position of the time switch. This command also sets the time in the AP22 according to a cell tower or the GPS receiver. -
Page 25: Status
P l a n 1 - 9 SCREEN DA — DIGITAL ADJUSTMENT If the AP22 has a 3G modem with data mode, then this screen 3 G I P allows you to connect to the server and reprogram the device with the latest code. -
Page 26: Converting Ap22 Software To Rtc Connect Tm Software
AP22 Programming Manual Converting AP22 software to RTC Connect software 1. Go to RTC-Traffic.com 2. Click ‘Software/Help’ 3. Under ‘Legacy Software Downloads’, click AP22 Software v2.30 4. Install at prompt 5. Open the AP22 software 6. Go to ‘Utilities’ 7. Click ‘Setup’... -
Page 27: Warranty
RTC will, at its option, either repair or replace the defective product. The customer at its cost shall deliver the defective product to RTC, and RTC will repair or replace the product and return it to the customer at RTC’s cost. - Page 28 RTC-Traffic.com | 800.782.8721 toll free RTC Manufacturing, Inc., 1016 Enterprise Place, Arlington, Texas 76001 ©2017 RTC Manufacturing, Inc. All Rights Reserved.
