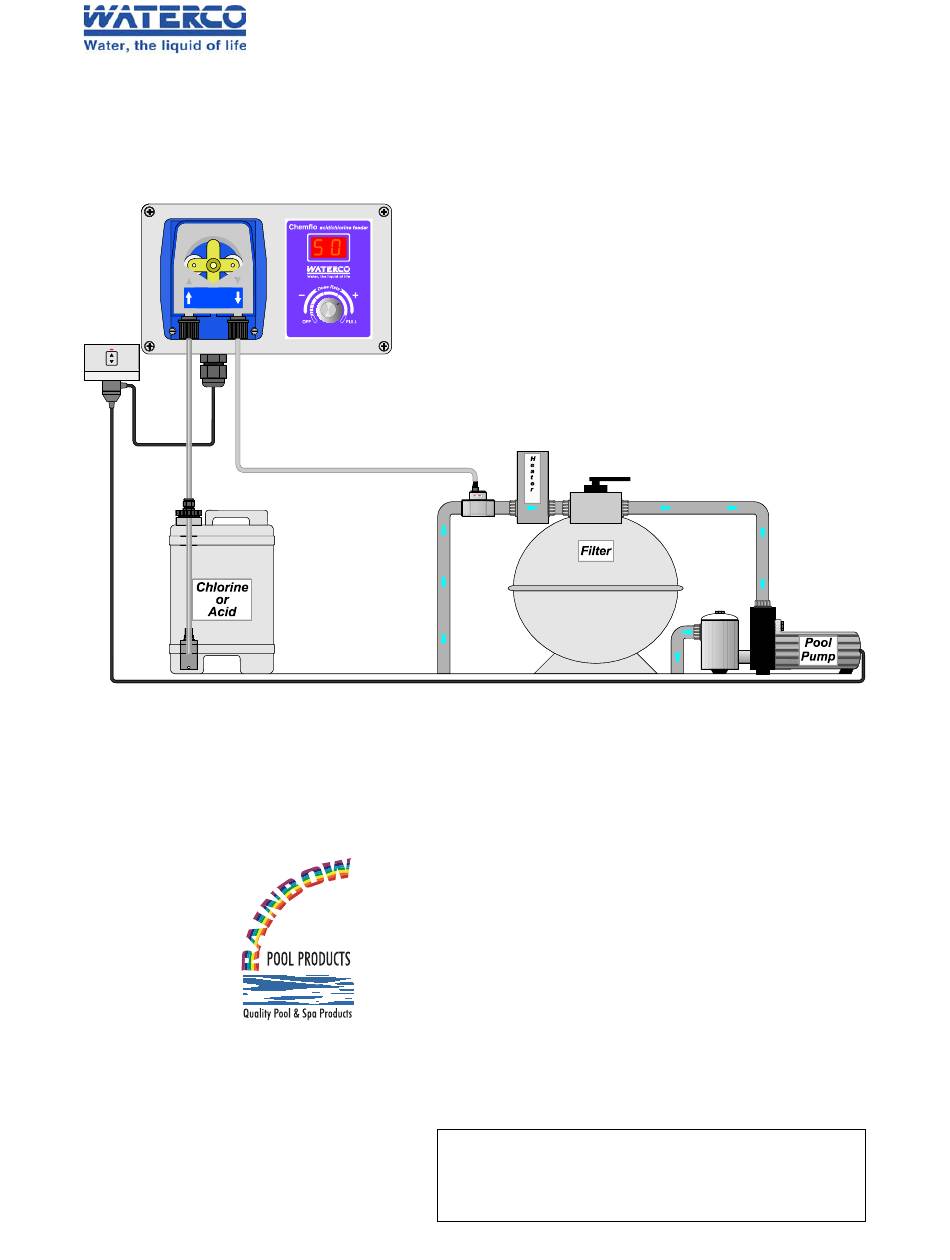

Chemflo 25880 Chemical Feeder
Doses same amount of Acid or Chlorine each day
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: info@rainbowpoolproducts.com.au
Web: www.rainbowpoolproducts.com.au
Chemflo 25880 Acid or Chlorine Feeder Manual
Date
: 1 Sep-2007
Version : 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rainbow Waterco Chemflo 25880
Summary of Contents for Rainbow Waterco Chemflo 25880
- Page 1 Chemflo 25880 Chemical Feeder Doses same amount of Acid or Chlorine each day Rainbow Pool Products PO Box 2388, Mansfield Qld 4122 Telephone STD 61-7-3849 5385 Facsimile STD 61-7-3849 5384 Email: info@rainbowpoolproducts.com.au Web: www.rainbowpoolproducts.com.au Chemflo 25880 Acid or Chlorine Feeder Manual...
-
Page 2: Table Of Contents
Contents Section 1. – Introduction......................4 Chemflo Diagram ..........................4 Unpacking Information ........................5 Section 2. – Installation......................6 Plan the installation ......................... 6 Fit Tubing into Chemical Drums ...................... 7 Fit Tubing to Dosing Pump......................7 Mount Feeder and Connect to Electrical Supply ................8 Section 3. -
Page 3: Introduction
Section 1 – Introduction Section 1. – Introduction Chemflo Thank you for purchasing a feeder. Chemflo dosing unit is designed for maximum reliability to give you many years of service. Chemflo is easy to operate. This manual provides all the details required for correct installation and operation of the unit. -
Page 4: Unpacking Information
Section 1 – Introduction Unpacking Information Please check that you have received all of the items that should have been included with your new Chemflo. Standard Chemflo Kit… Peristaltic Pump Input and Output Tube, 4m Part No : 116360 Chemflo Pool Feeder Model No : 25880 Injection Tee, 50mm... -
Page 5: Installation
Section 2 – Installation Section 2. – Installation Chemflo is supplied with an installation guide. Installers should also refer to this guide. Plan the installation Ensure that… Chemflo feeder is installed in a sheltered location. Chemflo controller is close enough to the expected location of the Injection Tee for the pump output tubing to reach without straining. -
Page 6: Fit Tubing Into Chemical Drums
Section 2 – Installation Fit Tubing into Chemical Drums Insert the suction tubing through chemical drum lid supplied and fit the drum weight, as per the diagram below. Be sure to use the correct type chemical resistant drum. A pool professional can advise on this. -
Page 7: Mount Feeder And Connect To Electrical Supply
Section 2 – Installation Mount Feeder and Connect to Electrical Supply Mount the Chemflo controller on a sturdy wall or post using minimum 3mm or 1/8” stainless steel bolts, screws or masonary anchors. Chemflo controller MUST be installed in a sheltered location. Connect the Chemflo into a suitable power outlet and the Pool Pump into the piggy-back power... -
Page 8: Operating Instructions
Section 3 – Operating Instructions Section 3. – Operating Instructions Setting the Correct Dose Rate The Dose Rate can be set from 1 to 99, where 99 is 100% of the unit’s dosing capacity. The Litres per Hour of this dosing capacity is shown in the table at the end of this section. Note: The flow rate of the Chemflo is controlled by changing its duty cycle, not by... -
Page 9: Chemflo Flow Rates
Section 3 – Operating Instructions Chemflo Flow Rates The flow rate of the Chemflo is varied using a duty cycle, so for most of the time the pump does not operate. For example, the pump will be ON for 2.5 minutes per 15 minute cycle when it is set to 99. -
Page 10: Peristaltic Dosing Pump
Section 4 – Peristaltic Dosing Pump Section 4. – Peristaltic Dosing Pump Lubricating the Pump Tubing Chemflo is shipped with the correct lubrication on the peristaltic pump tubing. If this lubrication needs to be re-applied, suitable Silicon lubricant is available from your dealer in a 3mL syringe (part no 130103). - Page 11 Section 4 – Peristaltic Dosing Pump To fit a new Pump Tube… Turn the roller holder so that the rollers are in a horizontal line. Push the Replace the see-through Re-fit the Input and The power to the left hand side cover on the front of the Output tubing to the Chemflo...
-
Page 12: Troubleshooting
Section 5 – Troubleshooting Section 5. – Troubleshooting Symptom Possible Causes Remedy Main Pool Pump does 1. Pool Pump power lead not Ensure that the Pool Pump’s power not operate when fully inserted into piggy- plug is firmly pushed into the piggy- plugged into Chemflo back plug. -
Page 13: Warranty
Section 6 – Warranty Section 6. – Warranty Warranty Terms and Conditions PLEASE READ 1. These terms and conditions carefully, as failure to comply may affect your legal rights under this warranty; and Any installation and operation instructions carefully before commencing use of any product manufactured by Waterco Limited (“Waterco”). - Page 14 Section 6 – Warranty Pressure gauges have not been exposed to frosting and freezing conditions and due care has been exercised when attaching them to any Waterco products; Electrical equipment has been adequately protected from salt air environments and from salt water; and Any pump used on a filter does not have a shut-off head that exceeds the pressure rating of the filter installed.
- Page 15 Spare parts used in the repair of products are covered by a 12 month warranty and are not covered by the original warranty from date of purchase or installation. The purchaser is responsible for any freight incurred. Rainbow Pool Products PO Box 2388, Mansfield Qld 4122 Telephone STD 61-7-3849 5385 Facsimile STD 61-7-3849 5384 Email: info@rainbowpoolproducts.com.au...
