BLR2 LITE MKII
User Manual
Version1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLR2 LITE MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for WorkPro BLR2 LITE MKII

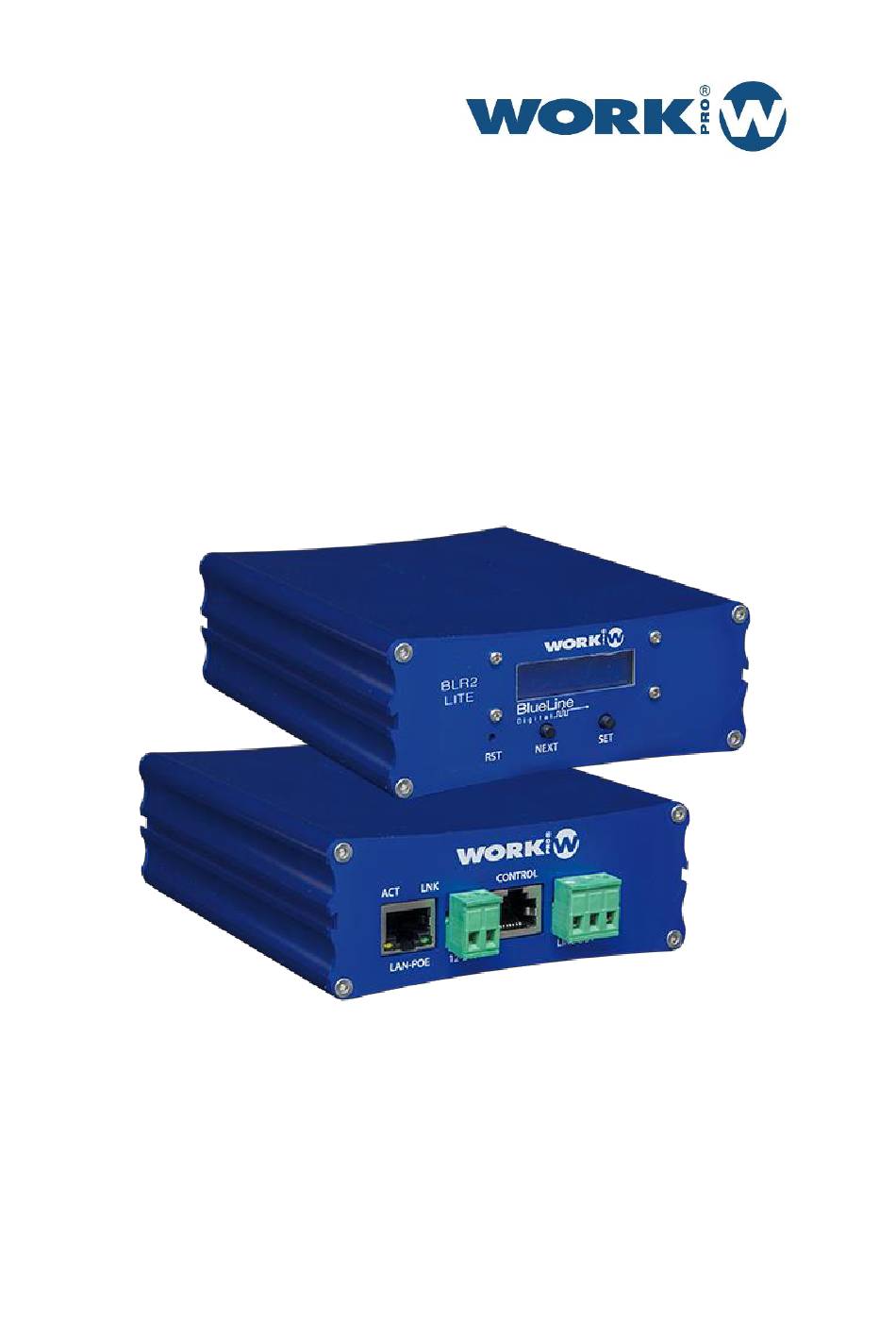

  • Page 1 BLR2 LITE MKII User Manual Version1.2...
  • Page 2 This symbol notifies the user about additional information or optional instructions. WELCOME TO WORK PRO Thank you for choosing the WORK PRO BLR2 LITE MKII system. This document contains essential information on the use of the system. Read this document carefully to become familiar with the system.
  • Page 3: Table Of Contents

    Audio extracting methods......................5 3.1.1. DUAL ..........................5 3.1.2. SINGLE ......................... 5 3.1.3. MONO.......................... 6 3.1.4. INVERT OUT ......................... 6 4. BLR2 LITE MKII........................... 7 Features ............................. 8 Device description........................9 4.2.1. Display ......................... 9 4.2.2. Analog audio output ....................11 4.2.3.
  • Page 4: Introduction

    BLR2 LITE MKII USER MANUAL VERSION 1.2 INTRODUCTION The devices of the BlueLine Digital MKII series allow the streaming of audio over IP through Ethernet, complying with the TCP / IP protocol stack. Using the BlueLine Digital MKII system it is possible to perform from a simple point-to-point audio transmission to a complex multi-channel system with alarm control and management.
  • Page 5: Components Of The Blueline Digital Mkii System

    The BlueLine MKII receivers are devices that are responsible for extracting one stereo audio channel from the network. There are three types of receivers: BLR2 LITE MKII: Receiver of one stereo channel. BLR2 MKII: Receiver of one stereo channel with 2GPIs / 2GPOs.
  • Page 6: Audio Extracting Methods

    BLR2 LITE MKII USER MANUAL VERSION 1.2 Audio extracting methods It is important to emphasize that each audio receiver is only capable of extracting one stereo audio channel from the network. The extraction of this channel can be done in different ways, that can be select in the configuration interface of WorkCAD3 Configurator.
  • Page 7: Mono

    BLR2 LITE MKII USER MANUAL VERSION 1.2 3.1.3. MONO Mono extraction mode. The two input channels (1-L and 2-R), are summed to extract them by both outputs of the receiver. 6 dB are subtracted from each output to compensate for the electrical sum of two input channels.
  • Page 8: Blr2 Lite Mkii

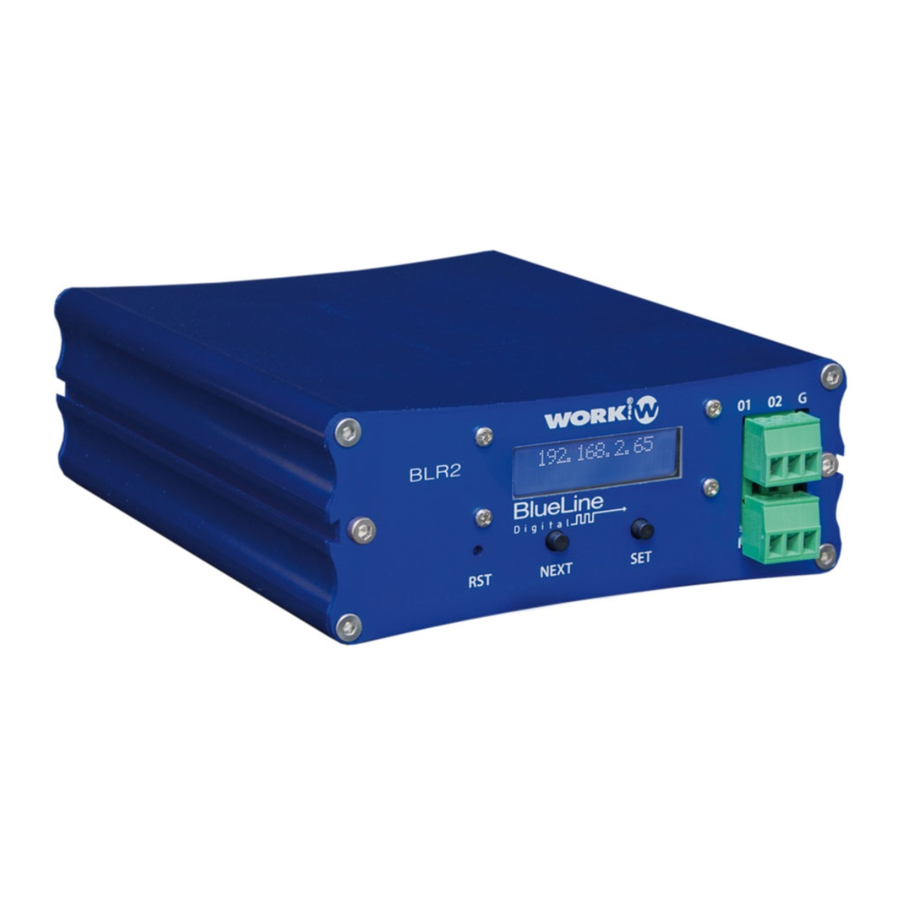

    VERSION 1.2 BLR2 LITE MKII The BLR2 Lite MKII is an audio over IP receiver, that can extract one of the channels transmitted by the Blueline MKII senders. The device can be powered by either PoE or an external power supply.
  • Page 9: Features

    BLR2 LITE MKII USER MANUAL VERSION 1.2 Features Analog audio output Number of channels 1 stereo channel (unbalanced) or 1 single/mono channel (balanced) Audio connector Euroblock, 3 pin 5.08mm Output sensitivity -1.15 dBu (640mV ), balanced Network Connector RJ-45 Audio over IP...
  • Page 10: Device Description

    BLR2 LITE MKII USER MANUAL VERSION 1.2 Device description 1. Reset button. Take the device to its factory configuration 2. Next button. It allows to advance between and through the different screens of the display. 3. Display. It shows different features of the device.
  • Page 11 BLR2 LITE MKII USER MANUAL VERSION 1.2 STATIC IP, this is the static IP address. The device has a static IP address by default in the subnet 10.0.0.0/8. For editing, use the SET (to select and set the digit) and NEXT (for editing upwards) buttons.
  • Page 12: Analog Audio Output

    BLR2 LITE MKII USER MANUAL VERSION 1.2 4.2.2. Analog audio output The analog audio output of the device can be balanced or unbalanced according to the selected extraction mode. keep in mind the following types of connection: STEREO UNBALANCED MONO UNBALANCED...
  • Page 13: Lan Port

    BLR2 LITE MKII USER MANUAL VERSION 1.2 4.2.3. LAN port RJ45 port for LAN connection. Allows PoE power (Class 0 802.3af) Next to the RJ45 connector you will find two LEDs indicating the status of the device: LINK (green) Indicates that the BLS2 LITE MKII is connected to the LAN...
  • Page 14 BLR2 LITE MKII USER MANUAL VERSION 1.2 Zone: This field refers to the zone to which the device belongs, in order to receive OSC control commands. By default, all BlueLine receivers are in zone 1. Generate Ding Dong: Button to execute a Ding Dong signal in the receiver.
  • Page 15: Accessories

    BLR2 LITE MKII USER MANUAL VERSION 1.2 Accessories The BLR 2 Lite MKII includes a series of accessories for mounting on a wall or with the rack accessory BL AR 19 (not included): 2x Wings for mounting in a wall.
  • Page 16 BLR2 LITE MKII USER MANUAL VERSION 1.2 BLUELINE DIGITAL MKII SERIES www.workpro.es...
  • Page 17 BLR2 LITE MKII USER MANUAL VERSION 1.2 BLUELINE DIGITAL MKII SERIES www.workpro.es...
