Summary of Contents for I.B.U. Electronics IBU2

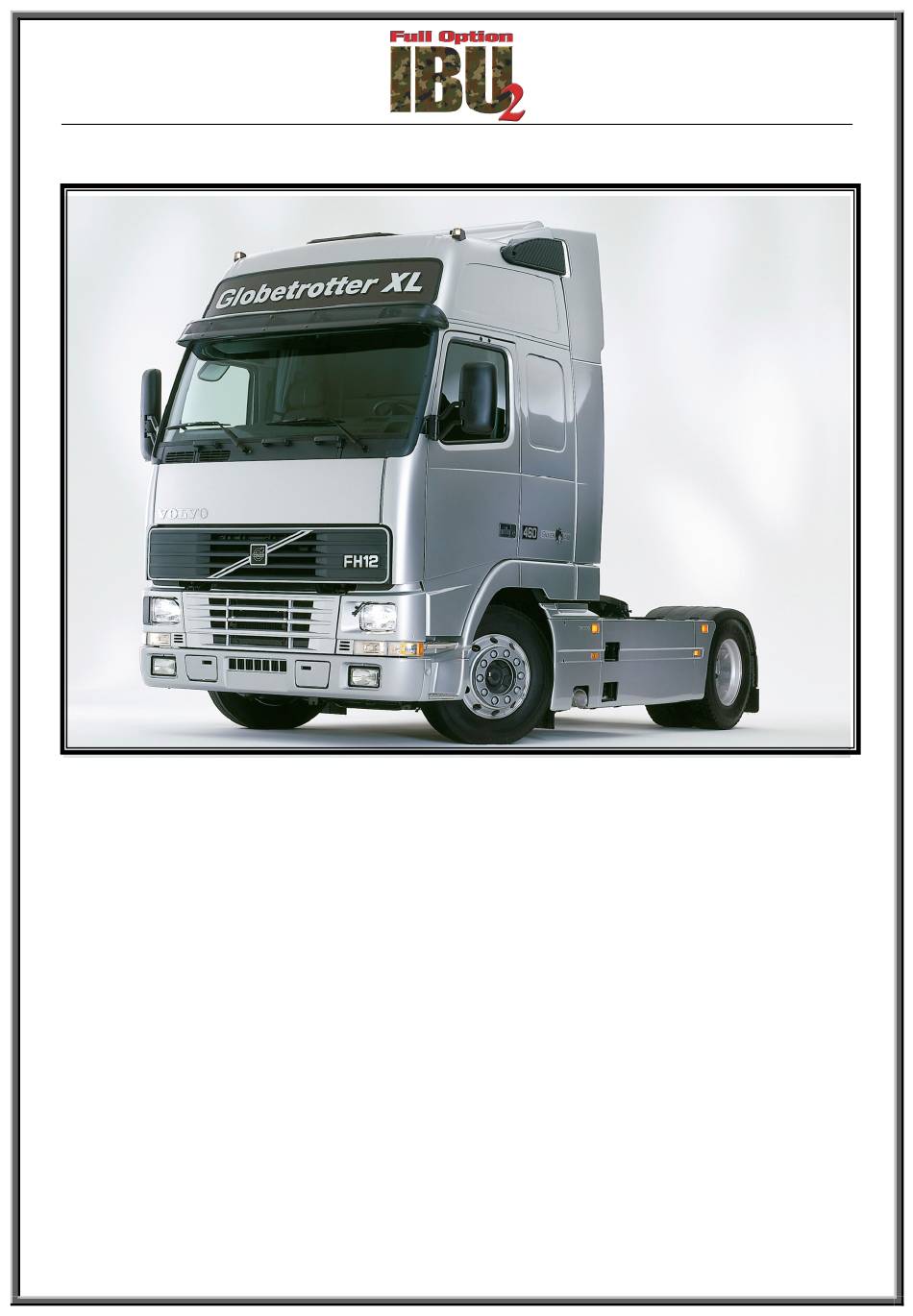

- Page 1 Full Option Electronic Board for R/C Trucks Operating & Installation Manual...
-
Page 2: Table Of Contents
Contents 1 Introduction 2 Features 3 The IBU2 Truck 4 Connecting radio and radio configuration 5 Controls 6 Changing sounds 7 Configuration settings 8 Trouble shooting 9 Authorised dealers 10 Follow us... -
Page 3: Introduction
• Modern ESC allowing ultra realistic speed control even at slow speeds. And higher efficiency allowing longer battery run time. • User changeable protection. IBU2 Truck protected by 2A fuse and 10A fuse for ESC. No more sending back to manufacturer for repair after accidental electrical short. -
Page 4: The Ibu2 Truck
3. THE IBU2 TRUCK Layout of the IBU2 Truck. Connector Utilization Vibration Motor Output for cabin vibration motor Speaker 2W audio output @ 8 ohms (4W @ 4 Ohms) High Beam High beam lights output Right Winker Right turn indicator output... - Page 5 BOARD SETTINGS After installing the board on the truck set the type of battery used through the dip switch on the board below. Battery Type Switch 1 Li-Po battery (*) Ni-Mh or Ni-Cd (*) Radio Programming Switch 2 Programming mode Normal mode (*) Monitors the voltage of the battery pack.
-
Page 6: Connecting Radio And Radio Configuration
• The board is now configured for use with the radio / receiver connected to it. Receiver connected (cable inserted corresponds to channel 1) Inputs IBU2 Connect to the channel relative to the stick / command you want to use... -
Page 7: Controls
If some of the movements are reversed compared to the command you need to reverse its own channel on the radio, or change the parameter for the channel in the file "IBU2_TR.ini" in the root of the microSD board inserted in IBU2 (see chapter 7 below). - Page 8 Additional controls available from the radio controller • Head light control (default = ON) Right stick in the top left corner for 1-2 seconds to turn on / off the lights • High beam lights control stick right up to 1-2 seconds to turn on / off high beam lights •...
- Page 9 To select the set of sounds appropriate for the truck on which is installed the IBU2, do the following: 1. With power OFF, press lightly on the microSD inserted under the IBU2 to release the microSD...
- Page 10 1 Mb or its reproduction will be truncated. The names of the * .wav files are not important, as long as the file is reported IBU2.ini proper correspondence between each file and its sound effect, and provided they are not longer than 8 characters (plus the extension ".wav") and do not contain spaces or periods.
-
Page 11: Configuration Settings
CONFIGURATION SETTINGS "IBU2_TR.INI" In addition to the associations of the sound effects with the corresponding wave file, into the text file IBU2_TR.INI there are other variables that allow you to customize certain features of your IBU2 Truck. Configuring the reverse channel radio... - Page 12 Configuration of the rear lights and brake lights The rear lights and the stop, (typically two LEDs) are powered by the same output, the output is modulated to obtain a low intensity for the tail lights, the parameter: TailLightIntensity = 50; [1..50]% Allows you to adjust the brightness of the rear lights, a lower value will decrease and vice versa a highest increase.
-
Page 13: Trouble Shooting
I turn on the truck but the -No valid RX signals received : check the connections headlights continues to flash between the IBU2 truck and receiver The turning indicators are in - Reverse the channel (Ch4) in the transmitter or in the opposite direction settings file IBU2.ini... -
Page 14: Authorised Dealers
RC Tank Electronics http://rc-truck.weebly.com/ http://rctankelectronics.weebly.com/ Europe / Italy Modeltecnica http://www.modeltecnica.it/catalog/index.php 10 Follow Us https://www.youtube.com/channel/UC1SWKKffZzUtXBU9B4QBRAg https://www.facebook.com/pages/IBU2-Truck/1535099413442564 Design, manufacturing and product support: I.B.U. by Bretti Ivano http://www.ibu-electronics.com Via Vittorio Emanuele, 70 12048 Sommariva del Bosco Cuneo - Italy C. F. BRTVNI60R03E379T P. IVA 03507690042...
