SOUTHERN ENTERPRISES INC.
RELAX...If you can follow a few easy, step-by-step directions
in order .YOU CAN ASSEMBLE THIS ITEM.
.PLEASE FIND HARDW ARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL.
(1) LARGE FLA T HEAD WOOD SCREW
(2) WOOD DOWEL
Ø8X30mm
(3) CAM-BOLT
(4) CAM-LOCK
(5) COVER
(6) SMALL FLA T HEAD WOOD SCREW
(7) HINGE
(8) MAGNET PLA TE
(9) SMALL MACHINE SCREW
HARDWARE LIST
6PCS
Ø4X25mm
5PCS
24PCS
24PCS
24PCS
31PCS
Ø3X12mm
5PCS
2PCS
2PCS
Ø5/32"x3/4"
BE0695 – GOLDEN OAK
STYLE NO.
BE0696 - DARK WALNUT
794-4003
JCP LOT#
(CTN A: 794-4285, CTN B: 794-4286)

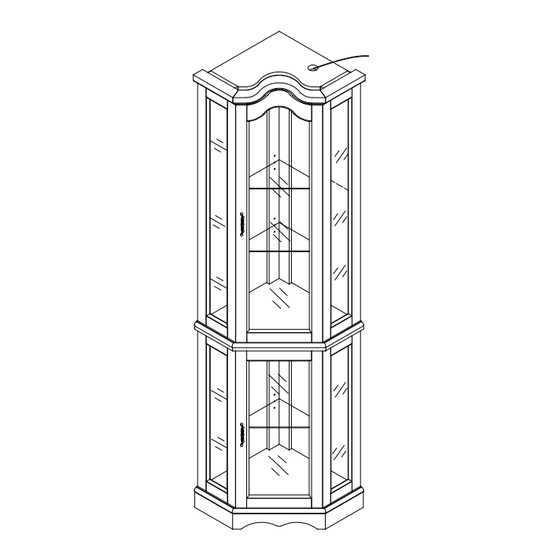

LIGHTED CORNER CURIO
(10) METAL PLA TE
(11) HANDLE
(12) PAN HEAD WOOD SCREW
(13) MAGNET
(14) LARGE MACHINE SCREW
(15) SHELF SUPPORT
(16) METAL SHADE
(17) LIGHT
2PCS
2PCS
68PCS
Ø3x12mm
2PCS
3PCS
Ø1/4"X1"
15PCS
1PC
1PC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SEI LIGHTED CORNER CURIO
Summary of Contents for SEI LIGHTED CORNER CURIO
- Page 1 (CTN A: 794-4285, CTN B: 794-4286) SOUTHERN ENTERPRISES INC. RELAX...If you can follow a few easy, step-by-step directions LIGHTED CORNER CURIO in order .YOU CAN ASSEMBLE THIS ITEM. .PLEASE FIND HARDW ARE IN RED POLYBAG BEFORE DISCARDING PACKING MATERIAL. HARDWARE LIST...
- Page 2 PARTS LIST (A) UPPER RIGHT BACK RAIL (K) LOWER SHELF (B) UPPER LEFT BACK RAIL (L) LOWER RIGHT SIDE PANEL (C) TOP PANEL (M) LOWER LEFT SIDE PANEL (D) UPPER RIGHT SIDE PANEL (N) BASE (E) UPPER LEFT SIDE PANEL (O) LOWER DOOR (F) UPPER SHELF (P) LOWER BACK PANEL...
- Page 3 (H) UPPER BACK PANEL 2PCS (R) SMALL BACK MIRROR 2PCS (I) LOWER RIGHT BACK RAIL (S) GLASS SHELF 3PCS (J) LOWER LEFT BACK RAIL ASSEMBLY INSTRUCTIONS SELECT A SMOOTH, SOFT SURFACE TO PREVENT SCRA TCHING FINISH. YOU MAY NEED A PHILLIPSSCREWDRIVER. INSERT WOOD DOWELS (2) INTO PREDRILLED HOLES ON EDGE OF UPPER LEFT BACK RAIL (B) AND FIT INTO CORRESPONDING HOLES ON UPPER RIGHT BACK RAIL (A).
- Page 4 TIGHTEN CAM-BOLTS (3) INTO PREDRILLED HOLES ON UPSIDE OF UPPER SHELF (F) AND FIT INTO CORRESPONDING HOLES ON BOTTOM EDGES OF PARTS (A, B, D, E). INSERT CAM-LOCKS (4) INTO BIG HOLE ON PARTS (A, B, D, E) WITH SLOT FOR SCREWDRIVER FACING OUTWARD. ROTA TE CAM-LOCKS (4) CLOCKWISE TO SECURE CAM-BOLTS (3).
- Page 5 10. ASSEMBLE LOWER CABINET (INCLUDED PARTS “I, J, K, L, M, N, O, P, R”) IN SAME MANNER AS STEP 3-9. AS SHOWN IN FIGURES 7, 8, 9 & 10. FIGURE 6 FIGURE 7 FIGURE 8 FIGURE 9...
- Page 6 FIGURE 10 11. WITH AN ASSISTANT, PLACE UPPER CABINET ONTO LOWER CABINET, AND TIGHTEN LARGE MACHINE SCREWS (14) THROUGH PREDRILLED HOLES ON LOWER SHELF (K) INTO THREADED HOLES ON UNDERSIDE OF UPPER SHELF (F). AS SHOWN IN FIGURE 11. 12. FIT SHELF SUPPORTS (15) INTO PREDRILLED HOLES ON INSIDE OF PARTS (A, B, D, E, I, J, L, M), AND PUT GLASS SHELVES (S) ON EACH SHELF SUPPORTS (15).
- Page 7 13. FIT THE PLUG TO THE APPROPRIA TE POWER SOURCE AND THE LIGHT IS READY TO BE LIT. TURN THE LIGHT ON AND OFF BY TURNING THE SWITCH ON CORD. AS SHOWN IN FIGURE 13. FIGURE 13 YOUR NEW LIGHTED CORNER CURIO IS FINISHED AND READY TO USE.
- Page 8 Please count, identify and compare parts and hardware list to be sure all parts are present. It may help to divide parts and label them to correspond with part list. Extra hardware may be included. If any items are missing, please contact our parts/service department at (800) 633-5096 or in Dallas (972) 869-0111/ 9am – 4pm Mon-Fri Central time.
-
Page 9: Important Safety Instructions
W ARNING: USE THE PROPER BULB AND THE PROPER POWER SUPPLY LABELED ON THE LAMP HOLDER. THIS PRODUCT CAN ONLY BE USED INDOORS. IMPORTANT SAFETY INSTRUCTIONS WHEN USING ELECTRICAL PRODUCTS, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING . READ AND FOLLOW ALL SAFETY INSTRUCTIONS ...
