MX5000A Development System Manual
1
System Overview
The MX5000A Development System allows manufacturers to easily evaluate and prototype
system improvements by adding MaxxAudio psycho-acoustic processing to existing audio
systems. The MX5000A Development System contains the small MX5000A Prototype
Module as shown in Figure 1, with simple connections for analog stereo input and output.
2
The MX5000A Development System also includes a Telos USB to I
C emulator with a
sophisticated PC graphic user interface. It also can be used without any external controls by
using the on-board potentiometers as audio controls.
.

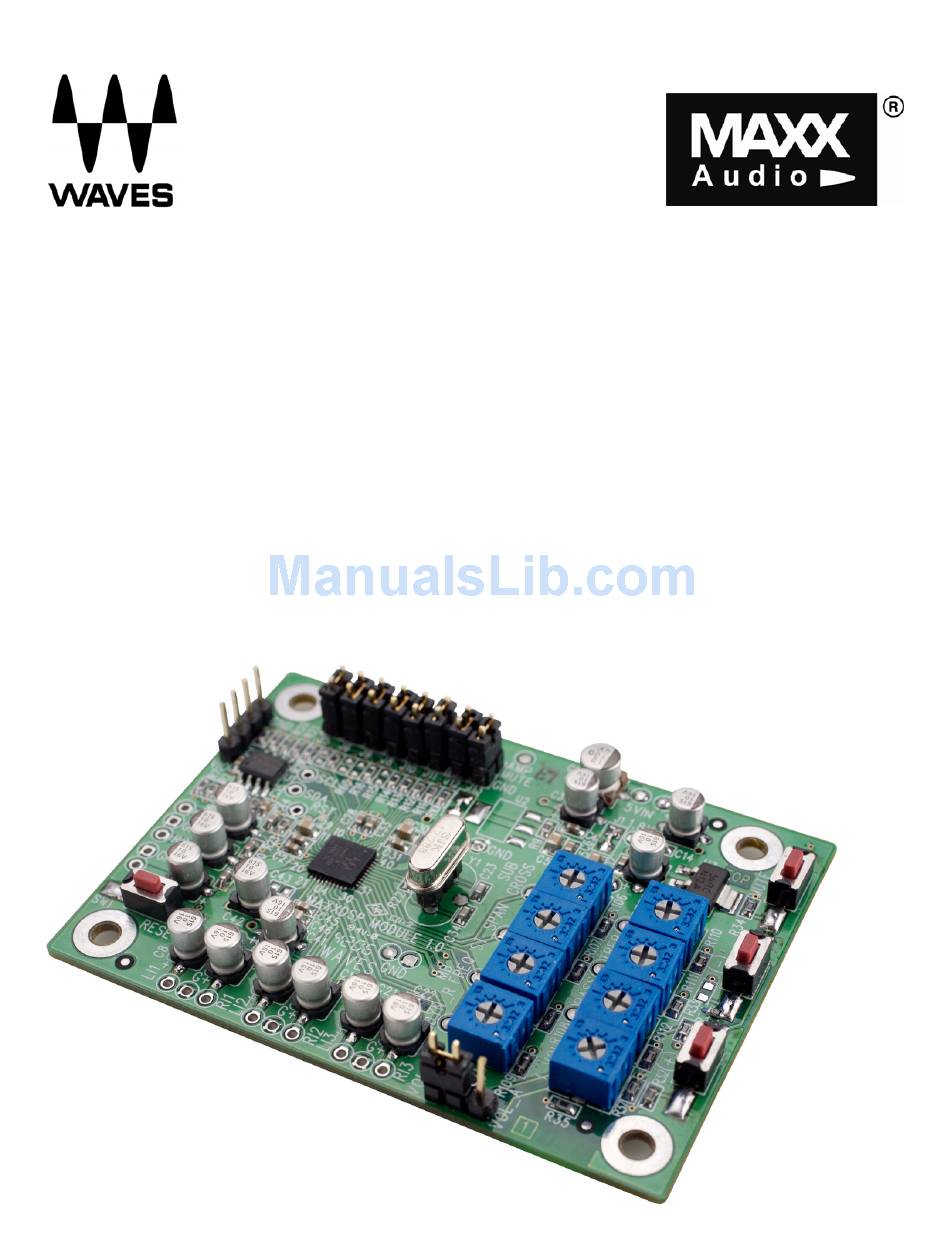

Figure 1. MX5000 Prototyping Module
MX5000A Development System
January 2007
