Summary of Contents for HeatQ NEX 1.0

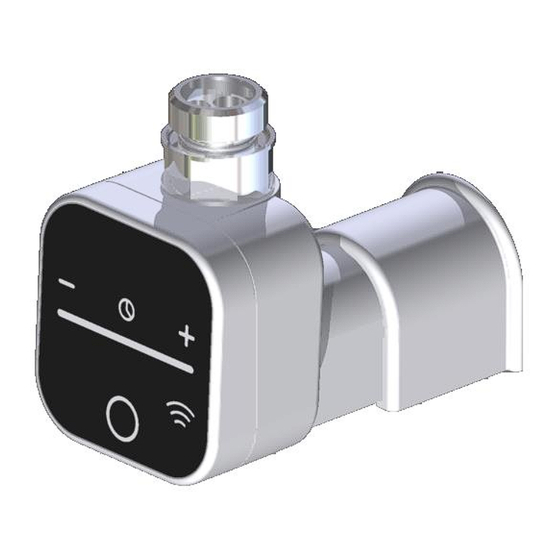

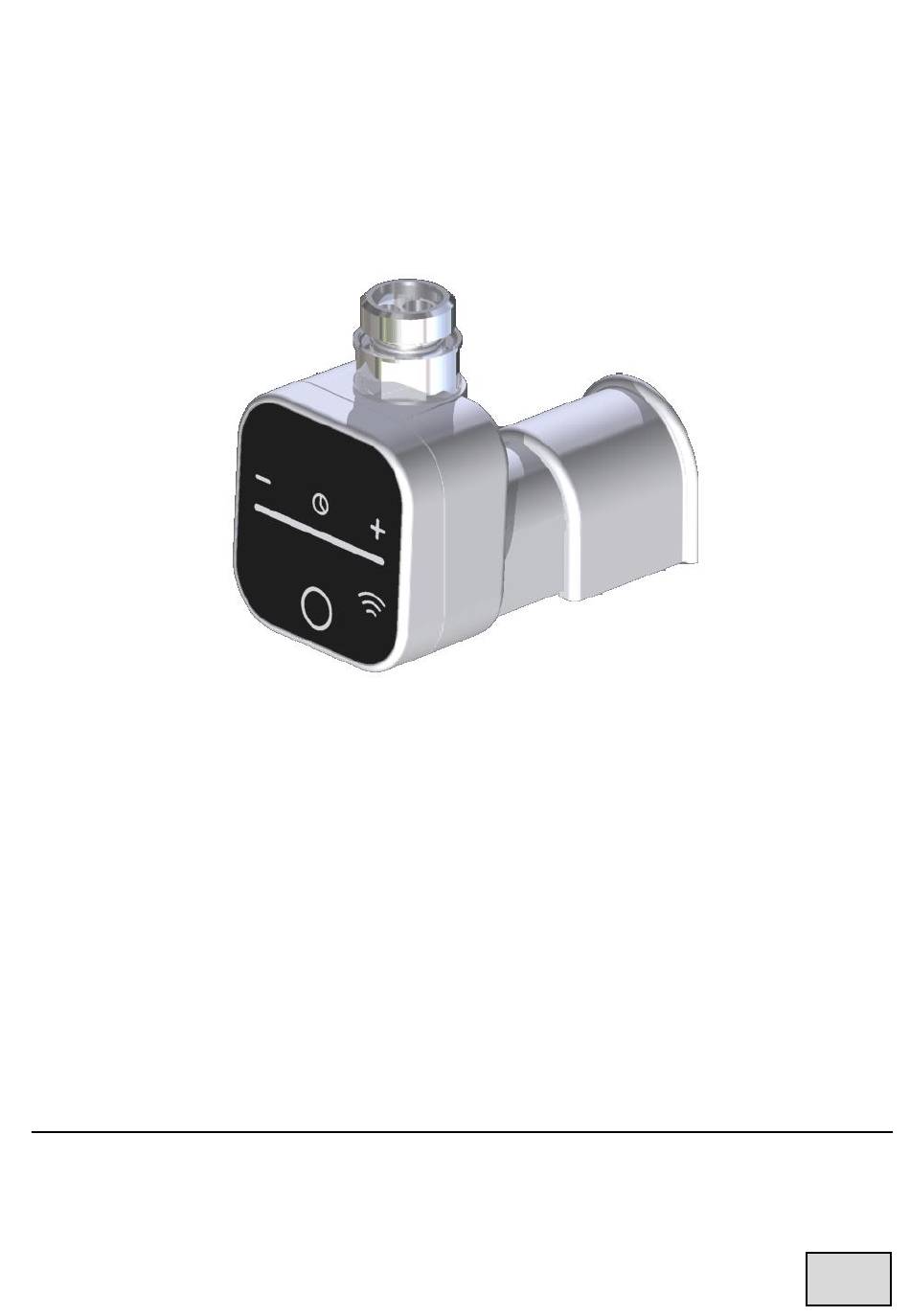

- Page 1 User Manual NEX 1.0 Electric heating element...
- Page 2 Introduction Producer: HeatQ TECHNOLOGY Sp. z o.o. / PL / www.heatq.com Please read this installation and user manual and warranty terms before assembling the electric heating element. After reading the manual, please save it just in case of need in the future Safety requirements –...
- Page 3 e. Do not fill the radiator in with the heating agent at temperature exceeding 70˚C – there is a risk of thermal fuse damage. CAUTION! Electric heating element is equipped with one time activation thermal fuse (irrecoverable), which is activated when the temperature inside the tube exceed 87˚C. Result activation of thermal fuse: the controller is working but the heating element does not heat.
- Page 4 str. 4...
- Page 5 Suppling cable Length of heating elements Heat outputs [W] L [mm] 1000 1200 Technical information 1. Rating plate NEX 1.0 Model name: 230VAC, 50Hz Power supply: Insulation class: 120, 200, 300, 400, 500, 600, 800, 1000, 1200W Heat outputs: IPx5...
- Page 6 The application of advanced electronics at the “operating” mode and the electronics of Ultra-Low-Power Technology at the “stand-by” mode provides the low power consumption. NEX 1.0 – how to use the device Buttons: S1 – ON/OFF S2 –...
- Page 7 Mobile application is available for Android and IOS operational System. For the mobile devices the thermostat should appear as NEX 1.0. In order to pairing the thermostat with mobile device you should select the NEX1.0 device on your mobile phone and press button S2 on the thermostat.
- Page 8 13. When power supply is recovered after its previous disappearance (power cut or unplugging) with the controller on, the electric heating element begins to operate in the mode before the voltage disappearance. 14. The electric heating element is adjusted to operate with a standard timer. Failures In case when the electric heating element does not work properly: 1.
