Issued / Herausgegeben / Pubblicato 09/1998
Instruction Leaflet
Bedienungsanleitung
Foglio d'instruzioni
1

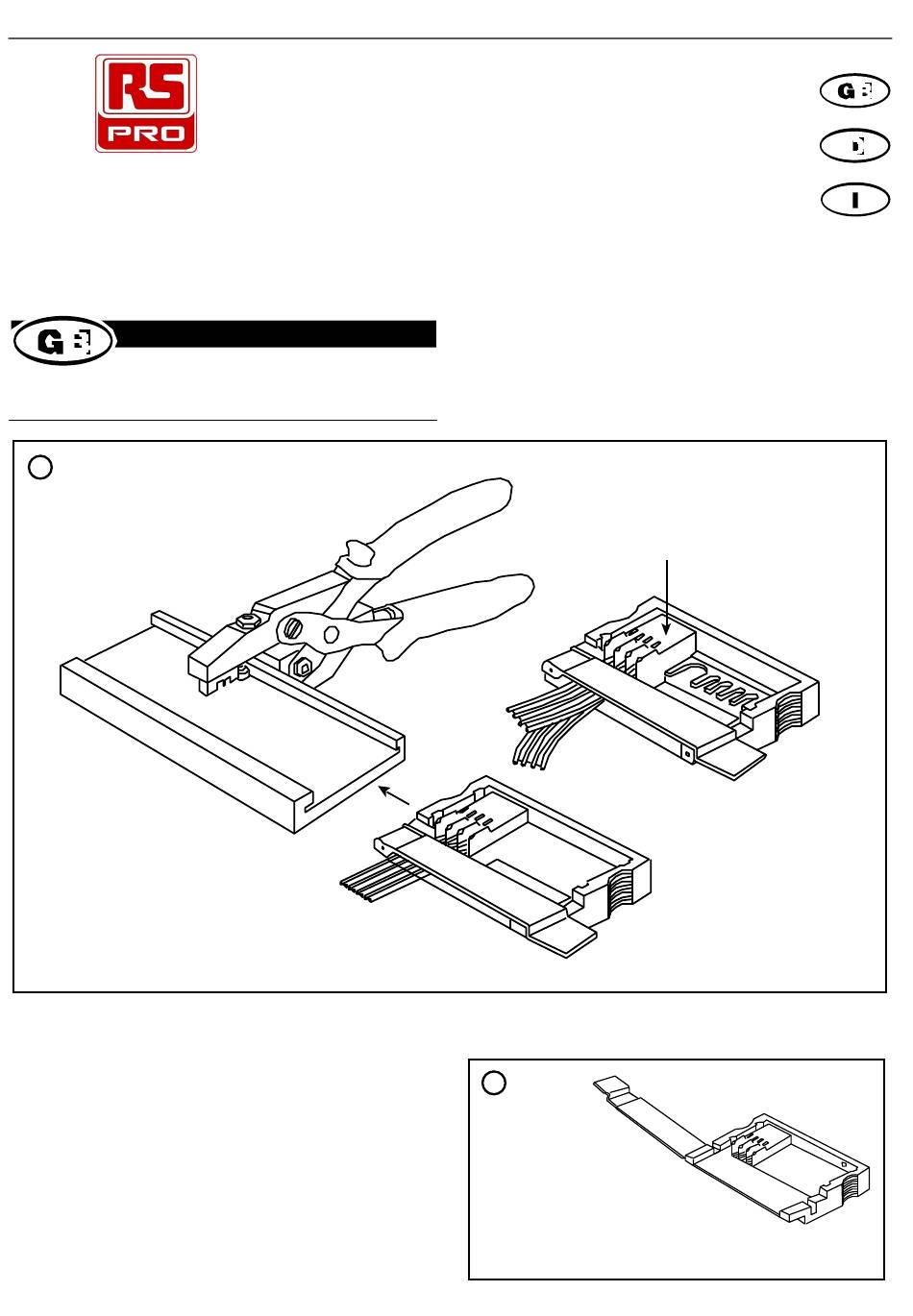

A. Connector body level with carriage wall
(double row carriage only)
B. Double row carriage
C.Single row carriage
D.Plier/base
Assembly instructions
Plier/base RS stock no. 186-2685 is used in conjunction with single
row carriage RS stock no. 186-2691 to terminate IDTsockets RS stock
nos. 532-210 to 532-276 and with double row carriage RS stock no.
186-2708 to terminate IDT sockets RS stock nos. 532-282 to 532-327.
Use IDT ribbon cable or discrete wire (28 to 26 a.w.g. 0.08 to
0.12mm2).
RS Stock No.
(Plier/base) 186-2685
(Single row carriage) 186-2691
(Double row carriage) 186-2708
HE14 IDT Production Tool
HE14 IDT Produktionswerkzeug
Utensili per Terminazioni a
Perforazione di Isolante HE14
Single row IDT socket termination
2
A. Cable clamp
B. Fit connector into either corner
C. Channel
D. Ball indent
V10028
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RS PRO HE14 IDT
Summary of Contents for RS PRO HE14 IDT
- Page 1 V10028 Issued / Herausgegeben / Pubblicato 09/1998 HE14 IDT Production Tool HE14 IDT Produktionswerkzeug Instruction Leaflet Utensili per Terminazioni a Bedienungsanleitung Perforazione di Isolante HE14 Foglio d’instruzioni RS Stock No. (Plier/base) 186-2685 (Single row carriage) 186-2691 (Double row carriage) 186-2708 A.
- Page 2 V10028 As shown in figure 2. with the cable clamp released back, fit a single Taking the double row carriage, with the cable clamp released back, row socket into either corner of the carriage. Snap the connector into fit a double row socket into either corner of the carriage as indicated the channel against the ball indent to secure in position.
- Page 3 V10028 RS Best-Nr. (Zange/Sockel) 186-2685 (Einreihiger Schlitten) 186-2691 (Zweireihiger Schlitten) 186-2708 A. Steckverbindergehäuse mit Schlittenwand (nur zweireihiger Schlitten) B. Zweireihiger Schlitten C. Einreihiger Schlitten D. Zange/Sockel Montageanweisungen Zange/Sockel RS Best-Nr. 186-2685 wird in Verbindung mit dem einreihigen Schlitten RS Best-Nr. 186-2691 benutzt, um die IDT- Buchsen, RS Teilenummern 532-210 bis 532-276 abzuschließen und dem zweireihigen Schlitten R S B e s t - N r.
- Page 4 V10028 Schlitten in Zangensockel schieben und so anordnen, daß sich die erste Position dort befindet, wo der Schlitten mit dem Ende des Sockels fluchtet (siehe Abbildung 4). Verbindung abschließen wie bei den einreihigen Buchsen. Wenn die Verbindung der ersten Reihe abgeschlossen ist, Steckverbinder herausnehmen und umdrehen, um die Verbindung auf der anderen Seite fortzusetzen.
- Page 5 V10028 RS Codici. (Pinza/Base) 186-2685 (Carrello a fila singola) 186-2691 (Carrello a fila doppia) 186-2708 A. Corpo del connettore in piano con la parete del carrello (solo carrello a doppia fila) B. Carrello a doppia fila C. Carrello a fila singola D.
- Page 6 V10028 Inserire il carrello nella base della pinza e localizzare la prima posizione, con il carrello in piano con l’estremità della base (vedi figura 4). Seguire la procedura di terminazione relativa alle prese a fila singola. Una volta completata la prima fila, sbloccare il connettore e rovesciarlo per terminare l’altro lato, seguendo la stessa procedura di prima.
