Summary of Contents for Acclaim Lighting Aria

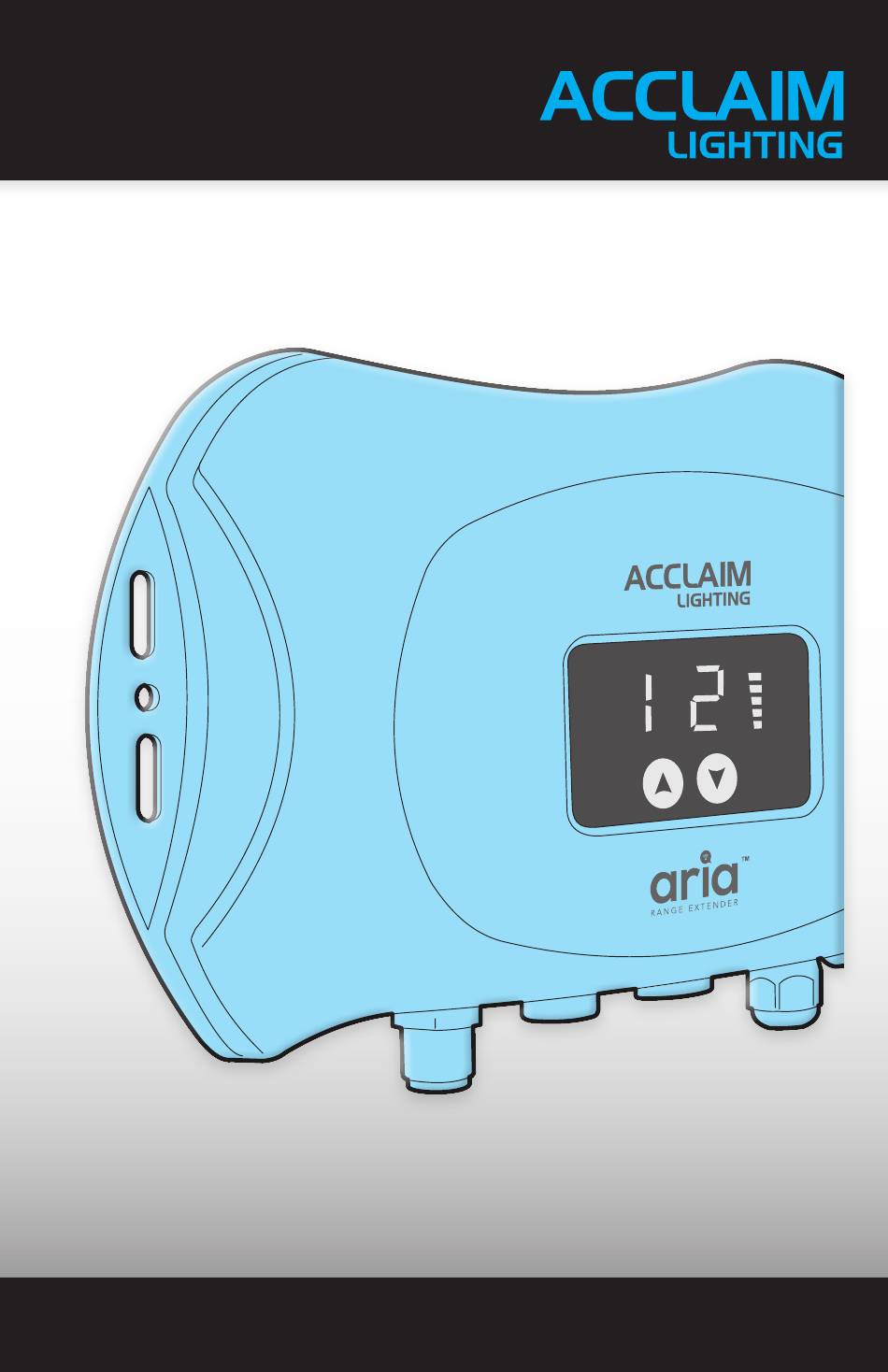

- Page 1 Aria Range Extender User guide...
-
Page 3: Table Of Contents
Supplied items Optional extras INSTALLATION ............4 Choosing the right location Objective 1: Extending range Objective 2: Boosting signals in hard to reach areas Using multiple Aria Range Extenders Transmitter must have later firmware High gain antenna Mounting Connections OPERATION ............12... -
Page 4: Introduction
Range Extender receives the original signal, amplifies it and then re-transmits it. A 5dB onmi- directional antenna is supplied with each Aria unit, together with a 9 feet (3m) extension plus a male-to-male adapter. Optional high gain 10dB directional antennas are also available. -
Page 5: Supplied Items
SUPPLIED ITEMS Aria Range Extender Supplied with 4.2’ (1.3m) power cord. Type N male to male antenna adapter 9’ (2.74m) antenna extension cable 5dB omni-directional antenna plus mount bracket OPTIONAL EXTRAS 10dB high gain antenna [ADA10] www.acclaimlighting.com... -
Page 6: Installation
INSTALLATION CHOOSING THE RIGHT LOCATION Your choice of installation locations for your Aria transmitter(s) and receiver(s), particularly their antennas, can have a significant effect on their range and speed of communication. Where possible: Keep the antenna away from conduit or metal objects. -
Page 7: Objective 1: Extending Range
• When obstructed: 300’ (91m) Ensure that the transmitter, receiver and range extender are all set to the same radio channel. The Aria Range Extender will receive the original signal, amplify it and re-transmit it. Aria Transmitter See page 8 Up to 2600’... -
Page 8: Objective 2: Boosting Signals In Hard To Reach Areas
Position the Aria Range Extender between the Aria Transmitter and the Aria Receiver such that it is visible to both. If necessary, use more than one Aria Range Extender (see page 7) to form a reliable chain between the start and end points:... -
Page 9: Using Multiple Aria Range Extenders
USING MULTIPLE ARIA RANGE EXTENDERS Up to five Aria Range Extenders can be used together, with each passing the signal on to the next. This allows larger distances to be covered and the reliable delivery of the signal to a wide span of receivers (and/or Aria-equipped fixtures) at every stage. -
Page 10: Transmitter Must Have Later Firmware
If an Aria module has a manufacture date earlier than December 2019 you will need to either swap it for a later model or return it to Acclaim Lighting for a firmware upgrade before it can be successfully used to transmit to an Aria Range Extender. -
Page 11: Mounting
MOUNTING IMPORTANT: When installing outdoors, the Aria Range Extender must be wall mounted with its connectors facing downwards to ensure that full ingress protection is achieved. Connectors must be Circular and facing downwards in slotted side exterior installations mounting holes Circular (Ø5mm) and slotted holes are located on each side for mounting purposes - for... -
Page 12: Connections
CONNECTIONS On the underside face of the Aria Range Extender unit, there is a fixed power cord via a sealed gland as well as a moisture-proof air vent and the antenna port. ANTENNA CONNECTION Wherever possible, ensure the antenna has a clear path to that of the paired Aria unit(s). - Page 13 POWER WIRING The power cord enters the casing via a water-tight gland on the underside of the Aria Range Extender unit. The power cord is supplied with bare tails and is roughly 4.5 feet (1.4m) in length. The power requirements are as follows: •...
-
Page 14: Operation
13 for channel details. Notes: If more than one set of Aria units are used in the same area (to transmit multiple DMX universes), maintain a gap of at least one radio channel between sets. There must never be two transmitters using the same radio channel in the same area. -
Page 15: Optimizing Signal Strength Via Channel Selection
WiFi. Aria units use the ISM band in a different manner than WiFi and the two can coexist. However, where distances between Aria units are great and WiFi access points are reasonably close, then interference can become an issue. -
Page 16: Interference Created By Objects
TROUBLESHOOTING Aria Range Extender does not re-transmit the incoming signal. • Check the Aria Transmitter that is supplying the signal. It must have a manufacture date (shown on the rear label) of December 2019 or later. See page 8. FCC COMPLIANCE STATEMENT WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 17: Further Information
DMX address have been set. This product is only to be installed by trained and licensed professionals. • This product can only be used with the Acclaim Lighting antennas mentioned within this guide. • This product is not intended for retail sale. -
Page 18: Dimensions
DIMENSIONS Ø0.2" (Ø5mm) 0.71" 5.94" (151 0.31" (8mm) 8.19" (208mm) 9.1" (231mm) Weight: 3.96 lbs (1.8 kg) 2.17" (55mm) 11.81" (300mm) Ø0.79" Ø0.98" (Ø20mm) (Ø25mm) 2.36" (60mm) Ø0.31" 1.57" (Ø8mm) 1.61" (40mm) (41mm) 0.47" (12mm) Release 1.0a www.acclaimlighting.com... -
Page 19: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 20 www.acclaimlighting.com...
