This interface can insert RGB/composite video into Mercedes 09 version monitors [Monitor with SD card slot]. So RGB
navi map or reverse camera video or
TV/DVD changer image can be displayed.
All
the
installation
plug‐and‐play.
Composite video display
Note: the pictures below are Mercedes E/ML car monitors. This interface can be also used for E/CLK/GL/ML
Mercedes cars[with SD card].

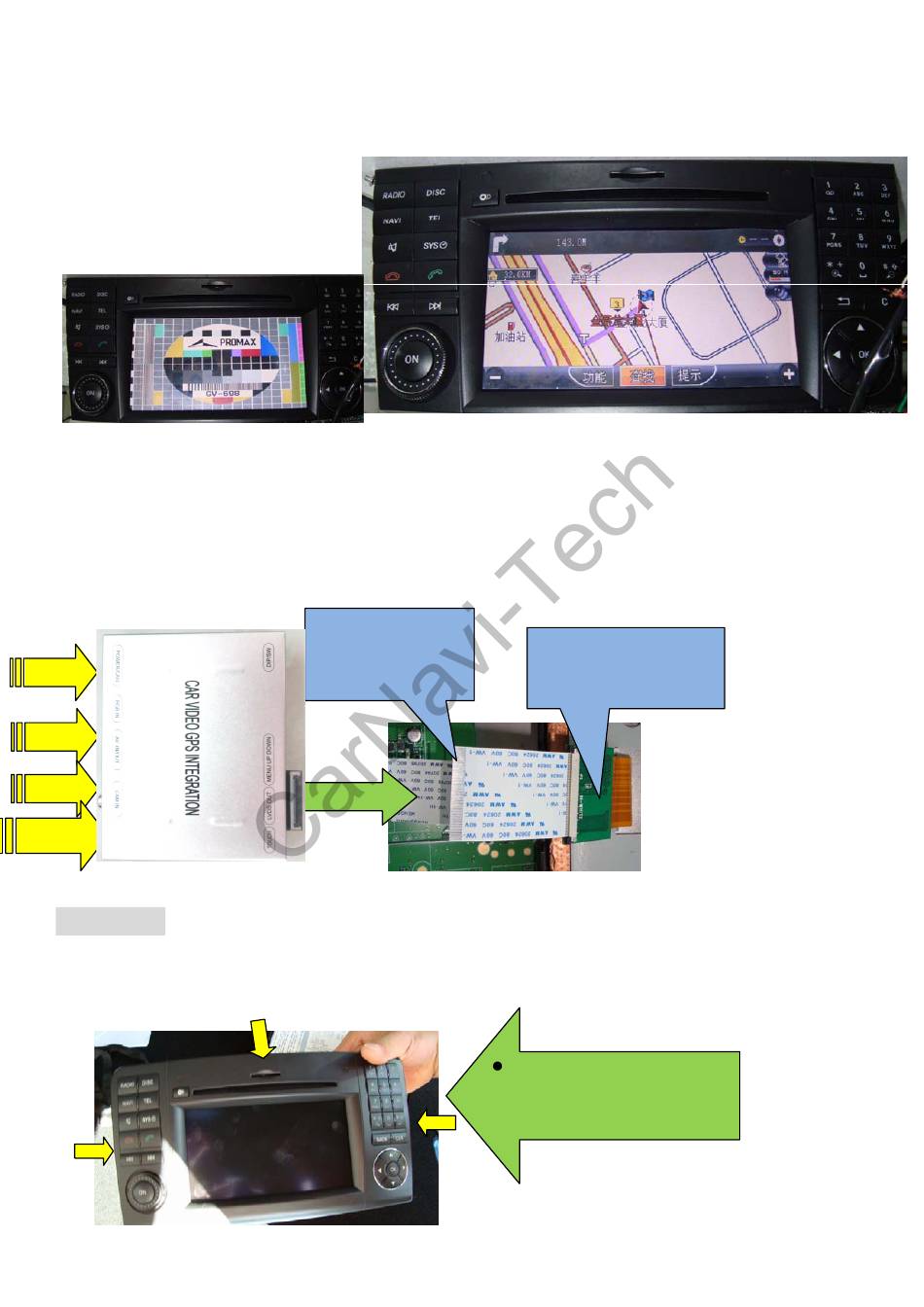

This interface box is made up of two parts, external box and internal daughter board. The internal daughter board
should be inserted onto the 60P ribbon cable to monitor, while the external box is located outside the monitor. One 50P
cable is used to connect these 2 parts.
RGB
AV1/2
CAM
CAN/POWER
Installtion：
（1） Take the monitor out from the car. For W211/220 cars, only necessary to remove the plastic with hooks, the
monitor can be taken down, on screws usually.
（2） Open the monitor's panel side in this way:
1 / 4
CarNavi-Tech Mecedes09 interface installation manual
process
is
60P "IN"‐side ribbon
cables to the socket.
50P ribbon
High resolution RGB‐NTSC display
60P "OUT"‐side socket to
the red original ribbon
cable.
Remove the 4 screws that
fasten the panel to the other
part of monitor.
