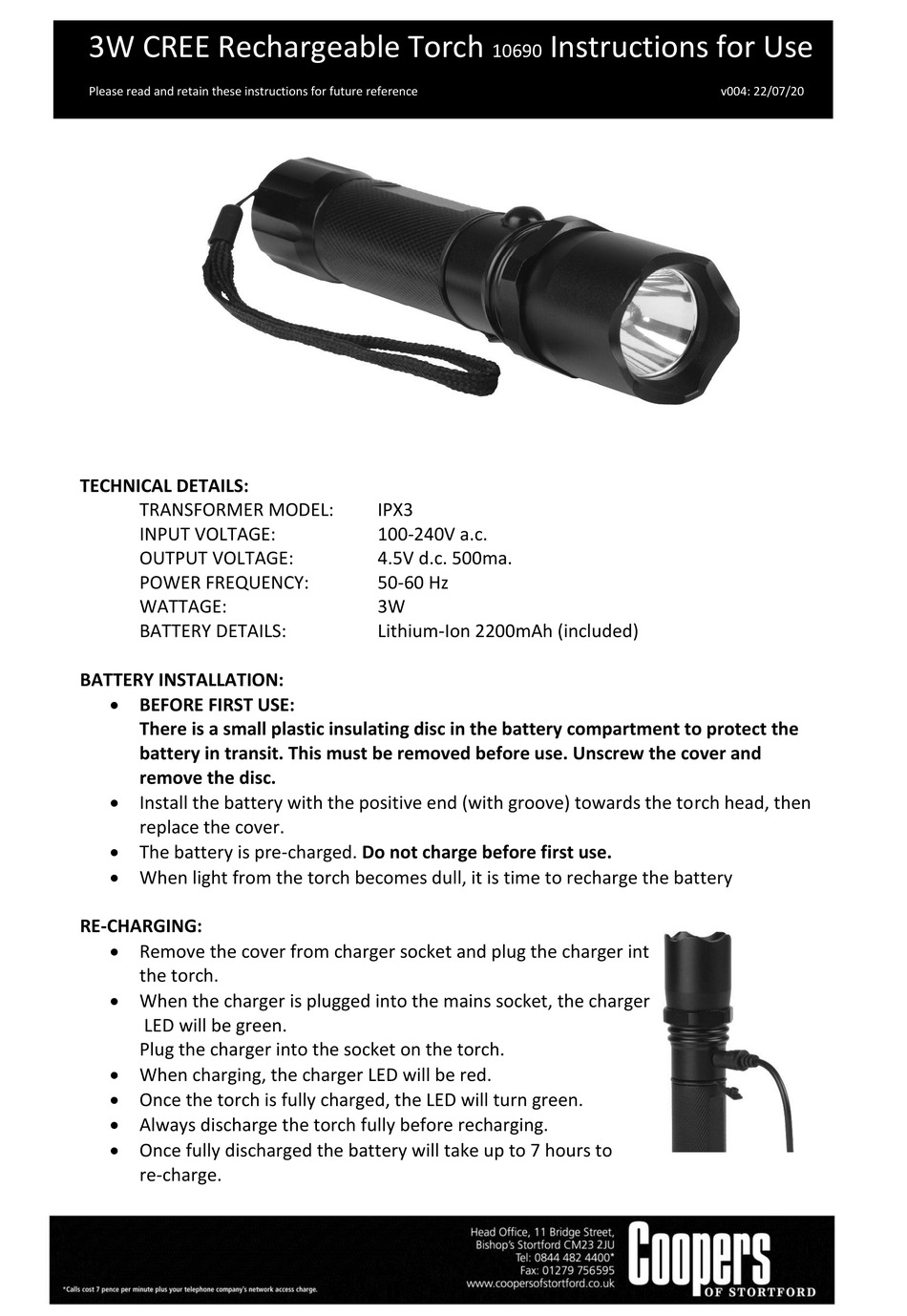

Coopers 10690 Instructions For Use

3W CREE Rechargeable Torch
Please read and retain these instructions for future reference

TECHNICAL DETAILS:

TRANSFORMER MODEL:
INPUT VOLTAGE:
OUTPUT VOLTAGE:
POWER FREQUENCY:
WATTAGE:
BATTERY DETAILS:

BATTERY INSTALLATION:

 BEFORE FIRST USE:
There is a small plastic insulating disc in the battery compartment to protect the
battery in transit. This must be removed before use. Unscrew the cover and
remove the disc.
 Install the battery with the positive end (with groove) towards the torch head, then
replace the cover.
 The battery is pre-charged. Do not charge before first use.
 When light from the torch becomes dull, it is time to recharge the battery

RE-CHARGING:

 Remove the cover from charger socket and plug the charger into
the torch.
 When the charger is plugged into the mains socket, the charger
LED will be green.
Plug the charger into the socket on the torch.
 When charging, the charger LED will be red.
 Once the torch is fully charged, the LED will turn green.
 Always discharge the torch fully before recharging.
 Once fully discharged the battery will take up to 7 hours to
re-charge.
10690
IPX3
100-240V a.c.
4.5V d.c. 500ma.
50-60 Hz
3W
Lithium-Ion 2200mAh (included)
Instructions for Use
v004: 22/07/20
