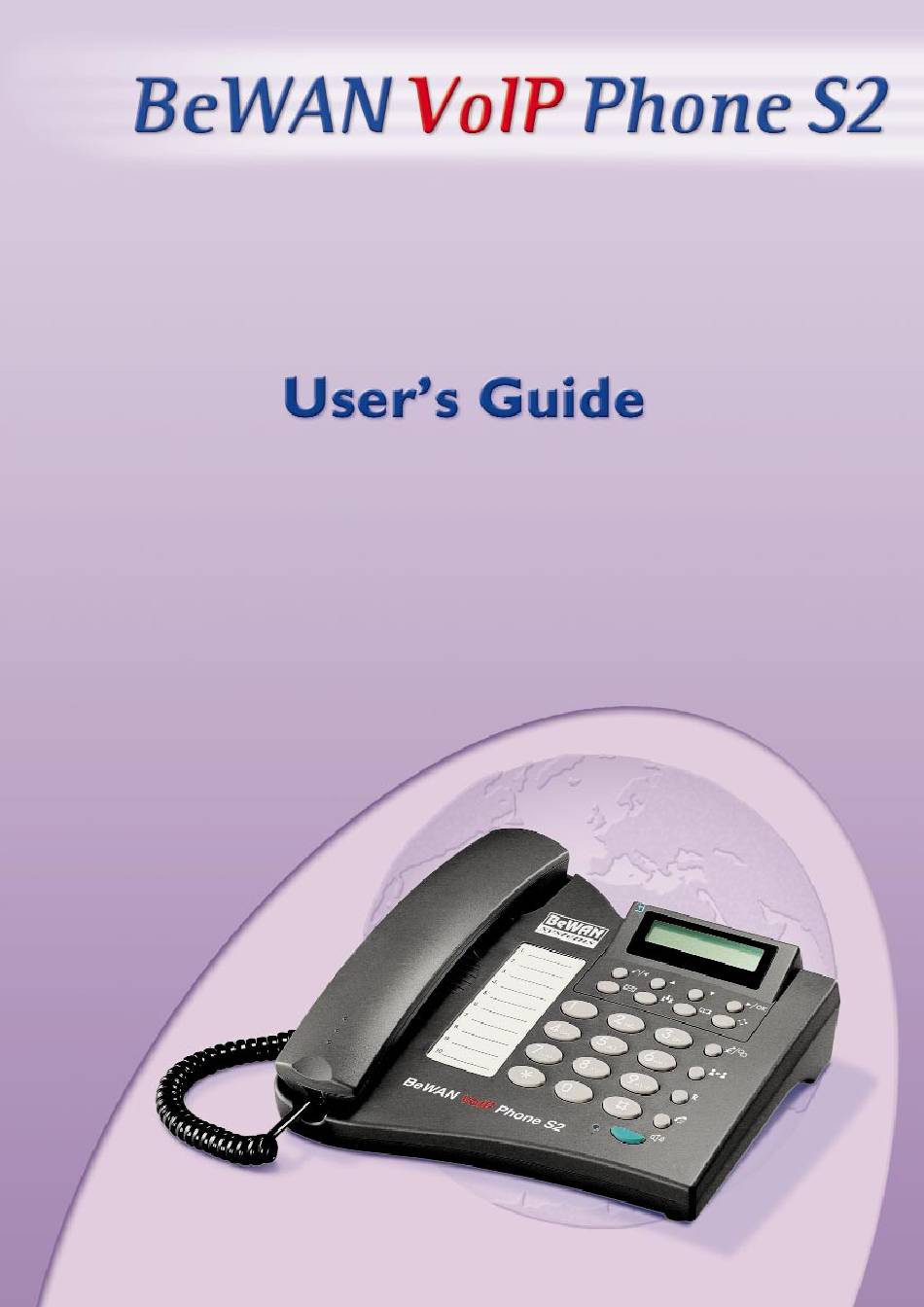

BeWAN VoIP Phone S2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VoIP Phone S2 and is the answer not in the manual?

Questions and answers

Summary of Contents for BeWAN VoIP Phone S2

  • Page 2 Copyright owner. Copyright © 2005, BeWAN systems. All rights reserved. September 2005 edition. Similarly, the product names indicated in this manual for identification purposes may be...

  • Page 3: Table Of Contents

    BeWAN VoIP Phone S2 Table of contents 1. Introduction..................5 2. Package content ................5 3. Technical assistance................ 5 4. Precautions for use ................6 4.1. Location ........................6 4.2. Upkeep and maintenance....................6 4.3. Power supply and cables....................6 5. List of figures..................7 6.
  • Page 4 BeWAN VoIP Phone S2 8.5. DHCP..........................24 8.5.1. Enable DHCP .........................25 8.5.2. Disable DHCP ........................25 8.6. Version........................26 8.7. MAC Address ......................26 8.8. Ringing Type ......................26 8.9. Anony Call Rej (Anonymous Call Rejection)............26 8.10. Anonymous Call .......................27 8.11. CF (Call Forward) No Answer .................27 8.12.

  • Page 5: Introduction

    Power adaptor (DC 5V) 3. Technical assistance The BeWAN VoIP Phone S2 and its documentation are designed to be as simple as possible, so that they can be used not only by professionals but also by individual home users. Before proceeding with the installation of your product, we recommend that you register it on the BeWAN systems website (http://www.bewan.com).

  • Page 6: Precautions For Use

    BeWAN VoIP Phone S2 4. Precautions for use Carefully read the following safety instructions before installing or using the BeWAN VoIP Phone S2. The usage instructions must be followed exactly. 4.1. Location • Avoid using, placing or storing the phone in areas which are exposed to intense light or high temperatures, or close to sources of heat.

  • Page 7: List Of Figures

    BeWAN VoIP Phone S2 5. List of figures SUMMARY OF KEY FUNCTIONS Functions (1) LCD Display Displays menu, time, clock, name, phone number, call status (2) Down Cycle through the phone menu, adjust volume (3) Right / OK Confirm setting change, exit menu, dial, save changes...
  • Page 8 BeWAN VoIP Phone S2 (12) Up Cycle through the phone menu, adjust volume (13) Cancel / Left Deny changes, cancel phone calls, ignore phone calls, backspace (14) Voice Message Check voice message (15) 3-Way Conference Enable 3-way conference (16) Numeric Keypad...

  • Page 9: Connecting The Phone

    BeWAN VoIP Phone S2 6. Connecting the phone To connect your BeWAN VoIP Phone S2, proceed as follows: 1. Take the power adaptor. Connect one end of the cable to the phone’s DC IN 5V port, and plug the other end into a power socket compatible with the specifications printed on the power supply unit.

  • Page 10: Configuring The Phone Using The Web Configurator

    Unconditional, CF User Busy and CF No Answer must be setup from the web browser. Note: To access the BeWAN VoIP Phone S2’s web configurator, you must assign your computer a compatible static IP address (e.g. computer with the IP address “192.168.1.11”).

  • Page 11: Web Login Setting

    BeWAN VoIP Phone S2 7.2. Web Login Setting User Name Configuration menu login name. Password Configuration menu login password. NTP Server IP NTP (Network Time Protocol) is a protocol used to help match your system clock with an accurate time source (eg atomic clock, time server).

  • Page 12: Management Setting - Restore Factory Setting

    BeWAN VoIP Phone S2 7.3. Management Setting - Restore Factory Setting Click on Management. Select Restore Factory Setting and the above screen will display on the screen. Restores all the settings back to factory default settings. Restore Factory Setting 7.4. Management Setting - Firmware update FTP server, Login ID, Login Password and Firmware Filename are preset when you purchase the phone.

  • Page 13: Network Settings - Pppoe

    BeWAN VoIP Phone S2 7.6. Network Settings - PPPoE Choose PPPoE if your ISP uses PPPoE. Most DSL users use PPPoE. PPPoE ID/username provided by your ISP. PPPoE ID PPPoE password. PPPoE Password DNS Server DNS address provided by your ISP.

  • Page 14: Sip Settings - Port, Registrar Server And Outbound Proxy Server

    BeWAN VoIP Phone S2 7.8. SIP Settings - Port, Registrar Server and Outbound Proxy Server SIP (Session Initiation Protocol) is the most popular Voice over IP standard. It enables two or more people to make phone calls, share multimedia and make multimedia conference over the internet.

  • Page 15: Sip Settings - Others

    BeWAN VoIP Phone S2 7.9. SIP Settings - Others This section is for network administrators. Session Timer The time interval in which the phone periodically refresh SIP sessions by sending repeated INVITE requests. These INVITE requests allow the user agent or proxies to determine the status of the SIP session.

  • Page 16: Sip Account Setting

    BeWAN VoIP Phone S2 7.10. SIP Account Setting You may have up to 4 accounts. i.e., the IP Phone can receive up to four different phone numbers. Default Account When you dial a number, the default account is used to dial.

  • Page 17: Stun & Upnp Settings

    BeWAN VoIP Phone S2 7.11. STUN & UPnP Settings STUN Simple Traversal of User Datagram Protocol through Network Address Translators is a protocol that allows applications to determine the types of NATs and firewalls are in between them and the internet. STUN also provides the ability for applications to determine the public IP addresses allocated to them by the NAT.

  • Page 18: Voice Settings And Qos

    BeWAN VoIP Phone S2 7.12. Voice Settings and QoS Codec Voice Compression Algorithm priority settings. Select from the most used codec to the least used codec. RTP Packet Length Real-Time Transfer Protocol (RTP) packet length. VAD detects voice activity and adjusts the signal to a target power level.

  • Page 19: Phone Settings - Phone Setting

    BeWAN VoIP Phone S2 7.13. Phone Settings - Phone Setting Recall you can only enable or disable call forwarding from the key . With the web browser, you can enter the forwarded phone numbers in the Phone Setting menu. Tone Setting Select the tone for particular country.

  • Page 20: Phone Settings - Timer

    BeWAN VoIP Phone S2 Click Busy to enable call forward to another number when user is busy on the phone. Click Unconditional to transfer all incoming calls to another number. Enter the call forward number on the text box. 7.14. Phone Settings - Timer NTP Recycle Timer NTP recycle time.

  • Page 21: Call Tracing Log

    BeWAN VoIP Phone S2 7.15. Call Tracing Log Call Tracing Log keeps a record of all the phone activities. This log is used by our engineers to troubleshoot hardware problems. 7.16. Phone Book Phone Book menu allows the user to add, modify and delete phone numbers. To add, type in the name and number then click New to add.

  • Page 22: Speed Dial

    BeWAN VoIP Phone S2 7.17. Speed Dial Speed dial numbers can be accessed from the IP Phone. Refer to section 9.2. for speed dial info. Number 0x Speed dial phone number. 7.18. Restart System Click Restart to update all the modifications and reboot the system.

  • Page 23: Configuring The Phone Using The Keyboard

    BeWAN VoIP Phone S2 8. Configuring the phone using the keyboard 8.1. Language Selection The BeWAN VoIP Phone S2 supports three languages. 1. Press followed by Language: 2. Use to select the preferred language. English 3. Press when done. 8.2. Time Format You may select the 12Hours or 24Hours time format.

  • Page 24: Adsl Dialup

    BeWAN VoIP Phone S2 8.4. ADSL Dialup Some Internet Service Provider (mostly ADSL) uses PPPoE which requires that the user enter an ID and a password to access the Internet. In this case, enable ADSL DIALUP and enter the PPPoE ID and PPPoE password.

  • Page 25: Enable Dhcp

    BeWAN VoIP Phone S2 8.5.1. Enable DHCP to select ENABLE. Step 1 1. Press IP Address: 2. IP address automatically acquired. 192.168.1.10 Step 2 1. Press Subnet Mask: 2. Subnet mask automatically acquired. 255.255.255.0 Step 3 1. Press Router IP: 2.

  • Page 26: Version

    BeWAN VoIP Phone S2 8.6. Version Version menu displays the firmware version. You cannot modify the version number. 1. Press 2. Enter the password (by default, this setting is 12345), then press 3. Press Version: 4. Firmware version is displayed on screen.

  • Page 27: Anonymous Call

    BeWAN VoIP Phone S2 8.10. Anonymous Call Enables the caller (user) to hide the name and phone number from the receiver. 1. Press 2. Enter the password (by default, this setting is 12345), then press Anonymo us Call: 3. Press (x5) DISABLE 4.

  • Page 28: Do Not Disturb

    BeWAN VoIP Phone S2 8.14. Do Not Disturb This setting allows the user to reject all incoming phone calls. 1. Press 2. Enter the password (by default, this setting is 12345), then press 3. Press (x9) Do Not Disturb: 4. Use to select ENABLE or DISABLE.

  • Page 29: Operating The Phone

    BeWAN VoIP Phone S2 9. Operating the phone 9.1. Dialing 9.1.1. IP Address 1. Lift handset or press 2. Dial IP address. For example: dialing 192.168.0.1 3. Press or wait until the timer expires to dial. 9.1.2. SIP Number Note: You have to register with SIP server to use SIP number.

  • Page 30: Switching To Another Line

    BeWAN VoIP Phone S2 9.4. Switching to Another Line While having a conversation: Press to switch to another line. 9.5. Mute Note: While mute is activated, sound from the caller can be heard from your speaker but your sound can’t be heard by the caller.

  • Page 31: Redial

    BeWAN VoIP Phone S2 9.8. Redial Note: To return to idle mode, press the key. 9.8.1. Last Dialed Number 1. Lift handset or press 2. Press to dial the last dialed number. 9.8.2. Through Call History 1. Press . Do not lift the handset when you press 2.

  • Page 32: Three Way Conference

    BeWAN VoIP Phone S2 9.11. Three Way Conference 1. Pick up the handset and call Person Person A 2. After Person A pick up the phone, press to place Person A on hold. 3. Dial the extension or phone number of...

  • Page 33: Using The Phone Book

    BeWAN VoIP Phone S2 10. Using the Phone Book 10.1. Dialing from the Phone Book 1. Press the key to access the Phone Book. 2. Press to scroll down the list until the name is displayed on the screen. 3. Press to dial.

  • Page 34: Deleting A Number

    BeWAN VoIP Phone S2 10.4. Deleting a Number 1. Press the key to access the Phone Book. 2. Press until the name you want to delete is selected. 3. Press the key again. 4. Select “Delete” and press to delete.

  • Page 35: Troubleshooting

    BeWAN VoIP Phone S2 11. Troubleshooting The following troubleshooting information can be used to help solve most common problems. QUESTIONS RECOMMENDED ACTION Check if there are any loose connections. There are no DIAL tone. Nothing is displayed on the 1. Check if power cord is connected properly.
  • Page 36 Postal Code: 92400 Fax: +33 1 46 91 03 71 Community: Courbevoie - France Product identification Name: BeWAN VoIP Phone S2 Type: VoIP Phone Reference: BWVOIP-PHS2 Declares with full liability that the product described above complies with the essential applicable requirements and in particular with the R&TTE 1999/5/EC Directive.

This manual is also suitable for:

Bwvoip-phs2
