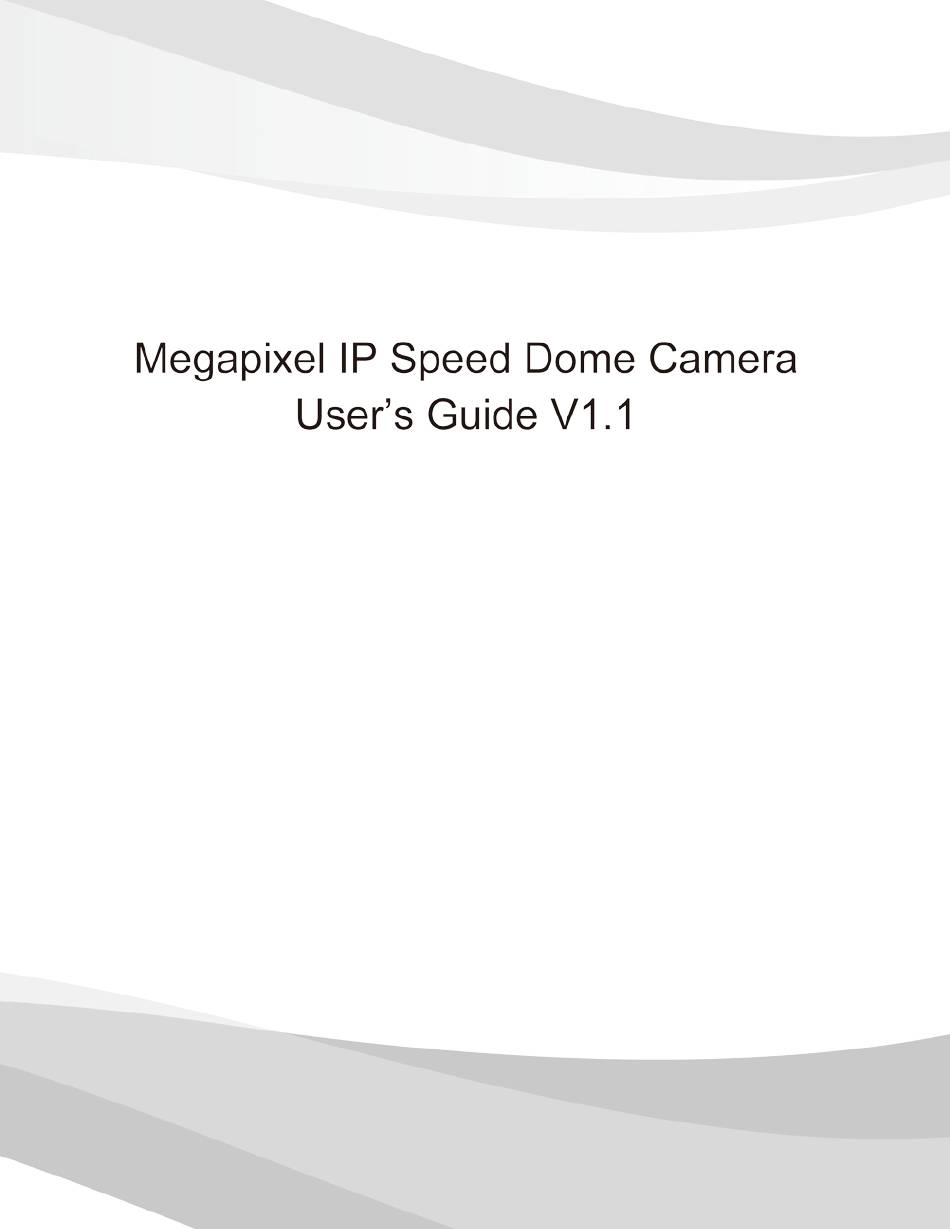

Fortec Star PTI 1320 User Manual

Megapixel ip speed dome camera
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Summary of Contents for Fortec Star PTI 1320

  • Page 2: Table Of Contents

    Table of Contents Precautions ……………………………………………………………… Product Overview ……………………………………………………… Operation Instructions …………………………………………… Menu Functions ……………………………………………………… After- sales Service …………………………………………… … APPENDIX ………………………………………………………………… …………………… ……………………………...

  • Page 3: Precautions

    PRECAUTION Precaution *Please read this manual carefully before the installations and operations. Transportation Security No heavy stress, violent vibration or water splash are allowed during transportation, storage. The unit should be transported in separated packing. In shipments of distributor and delivery of maintenance, any damages caused by integral packing are not covered by warranty.

  • Page 4: Product Overview

    PRODUCT OVERVIEW Product Overview  Special Features •High definition H.264 compression algorithm, save the network bandwidth and hard disk storage space, aspect ratio of 16:9 and 4:3 adjust at will; h. 264 main profile level and M - JPEG video streaming can be output at full frame speed.
  • Page 5 PRODUCT OVERVIEW • Multi-Protocol through RS485 or coaxial cable. • 8 auto scan with use-defined left and right boundaries and settable scan speed • 8 Privacy Zones with defined English camera title • Auto Compatible PELCO_P, PELCO_D compatible • Guard Location: the dome will rotate back to preset position after a period of vacant time •...
  • Page 6 PRODUCT OVERVIEW In the Preset function the dome stores the current pan/tilt angle, zoom and other position parameters in its memory. When necessary the dome recalls these parameters and adjusts the camera to a particular position. The user can store, recall and clear the presets easily and promptly by using the keyboard controller.
  • Page 7 PRODUCT OVERVIEW • Auto Tracking The dome will automatically fix and track the moving object according to the user’s setup via OSD. • Motion Detection The dome will detect the changes in the defined video zone and trigger alarm. It supports to 8 video Locations, each with 4 detection zones. •...

  • Page 8: Operation Instructions

    OPERATION INSTRUCTIONS Operation Instructions  Technical Data Power Supply: DC12V+10% 50W Decoder: Built-in ～360 ～120 Pan:0.01 /S, Tilt: 0.01 /S (high speed) Manual Speed: ～100 ～100 Pan:0.01 /S, Tilt:0.01 /S (Vair-speed) Preset Speed: /S (high speed) / 100 /S (Mid-speed) Pan Angle: continuous pan rotation Tilt Angle:...
  • Page 9 OPERATION INSTRUCTIONS  Main Functions Fast Call Up Our IR Speed dome supports 220 preset positions. You can activate some special functions by calling upon code number 65-99. Serial Command Fast Call Up Note Default to start auto scan Start Auto Scan Call 99 of group No.1 Default to start auto...
  • Page 10 OPERATION INSTRUCTIONS  General Operations 3.1 Factory Setting Products have default network parameters as below for your reference when leave our factory. These parameters can be changed according to your need. IP:192.168.0.99(for customized camera, please refer to specific label instruction) Subnet Mask:255.255.255.0 Gateway:192.168.0.1 WEB Port:8000...
  • Page 11 OPERATION INSTRUCTIONS If the computer displays as below, It suggests that the equipment is not installed well, you can check as the following aspects: 1:Is the firmware connected correctly? 2:Is TCP/IP set up to the same with this IP camera? 3: the network forbid the PING command, please consult the network administrator.
  • Page 12 OPERATION INSTRUCTIONS  WEB browse instructions 3.2.1 Login In the WEB address bar enter IP address :192.168.0.99,a login page appears as below User Name: admin Password: admin Port:8000 3.2.2 Download player components After a successful login, the WEB prompts whether update the new version plugins, double click and download.
  • Page 13 OPERATION INSTRUCTIONS 3.2.3 Preview Screen and operations After player component installment, enter IP address to login page again. With user name and password, click “Login” to preview screen. ICON Instruction Preview screen 4:3 ratio Preview screen 16:9ratio Original preview screen size Self-adaptive preview screen Choose main stream or sub stream volume...
  • Page 14 OPERATION INSTRUCTIONS Record Start 3D Zoom Control the Horizontal and vertical motion, open/close auto scan Zoom Focus Iris PTZ Speed Light Wiper Auxiliary Focus Patrol Preset Pattern Lens Initialization IR Setting Track Setting Preset operation instructions 1:In preset setting screen, display the current operating preset NO.
  • Page 15 OPERATION INSTRUCTIONS Patrol function operation instructions 1:Preset set: Setup the preset number that need to add to patrol route, the steps please refer to “preset set” in preset operation instructions. 2:Choose patrol routes: Choose the patrol route number that need to be edited, such as route 1 3:Add preset number: add preset number that has been set to routes, then set the corresponding time and speed of patrol.
  • Page 16 OPERATION INSTRUCTIONS IR Setting operation instructions: In IR setting screen, users can set IR near consumption1-10,IR far consumption ,compensation, sensitivity, VAL,IR mode. Auto-track Setting: In auto-track setting screen, users can set tracking scene, tracking sensitivity, return(sec),AUX. 1:Tracking sensitivity can be set to be low, middle, high. To low sensitivity, only obvious movement can arouse tracking function of the speed dome;...
  • Page 17 OPERATION INSTRUCTIONS Playback: Click “Playback ”to get into video search and playback screen. Users can search, replay and download stored valid video files in SD card or NAS. Choose a day in the calendar on the right side ,click Eligible video file will be displayed on the timeline. Drag the timeline to the position you want to play.
  • Page 18 OPERATION INSTRUCTIONS Click “Log” to get into search log. User can search, display and export stored valid log information in the SD card or NAS. Choose the type of log and set the query date and the time of starting and ending, then click ,Eligible log information will be displayed in the list.
  • Page 19 OPERATION INSTRUCTIONS Local Configuration Screen Parameter Instruction Protocol : TCP、DP、ULTICAST、HTTP（optional） Live View Performance: real-time、balanced、fluent (optional) Record File Sizes: 256M、512M、1G (optional) Save record files to: the default system disk:\Documents and Settings\User\Web\Record Files, according to the actual situation to change Save downloaded files the default system disk:\Documents and Settings\User\Web\Record Files, according to the actual to :...
  • Page 20 OPERATION INSTRUCTIONS System---Time settings In the Time Settings screen, time sync is operational. “Time Zone” shows the current IP camera’s time zone, and that can be set according to the actual situations. For “Time Sync”, set NTP server address、 NTP port、 Internal, the device will be time sync every once in a while according to the setup.
  • Page 21 OPERATION INSTRUCTIONS Click to reboot the device. Click to reset all the parameters, except the IP parameters and user information , to default settings. Click to restore all the parameters to default settings. Import and export config file can import and export corresponding config files. Click and choose the local upgrade file, then click upgrade the device version.
  • Page 22 OPERATION INSTRUCTIONS System---RS485 In “RS485”screen , Baud Rate factory default is 9600bps. Network---TCP/IP In “TCP/IP” screen, users can set “NIC Type”、“IPv4 Address”、 “IPv4 Subnet Mask”、 “IPv4 Default Gateway”、 “MTU”、 “Multicast Address”、 “Preferred DNS Server” 、 “Alternate DNS Server”. Check “DHCP” and the device obtains IP address automatically.
  • Page 23 OPERATION INSTRUCTIONS System-Port “Port” screen includes: “HTTP Port” （the default is 80） 、 “RTSP Port” （ the default is 554）、 “HTTPS Port”(the default is 443).Through network access the device, users can set corresponding port as needed. After modifying the parameters, click to save the settings.
  • Page 24 OPERATION INSTRUCTIONS corresponds to user registered account user name and password. For IP Server，just fill in the server address and cooperate with IPServer and iVMS client software. Please refer to instruction documents of IPServer and iVMS client software for client using method. After modifying the parameters, click to save the settings.
  • Page 25 OPERATION INSTRUCTIONS Network---SNMP The IP camera supports three types of network management protocols ,namely SNMPv1、SNMPv2 、SNMPv3 and choose related protocol as needed. Through configuration SNMP protocol， parameters and abnormal alarm information of the device can be received. Check “Enable SNMPv1”、 “Enable SNMPv2” ,set “Write SNMP Community”...
  • Page 26 OPERATION INSTRUCTIONS After modifying the parameters, click to save the settings. Note: Before setting SNMP parameters, users need to have the SNMP server and configure all parameters. Network---802.1X Users authority certification to the connected device can be achieved by configuration 802.1X . Check “Enable IEE 802.1X”...
  • Page 27 OPERATION INSTRUCTIONS By configuration QoS can effectively solve the problem of network delay and network congestion. In Network—QoS screen, users can set “Video/Audio DSCP”、 “Event/Alarm DSCP”、 “Management DSCP” After modifying the parameters, click to save the settings. Note: QoS function need network device support of transmission path(such as router).
  • Page 28 OPERATION INSTRUCTIONS Network---Upnp For a IP camera in the intranet environment, UpnP function can make gateway or router to do automatic port mapping, the IP camera’s listening port from the gateway or router mapped to the intranet device, and gateway or router network firewall module opens to other computers on this port.
  • Page 29 OPERATION INSTRUCTIONS Video/Audio---Video In video setting screen, users can set some parameters such as “Stream Type”、 “Resolution”、“Max. Bitrate”. Video Settings Parameters Instructions Stream Type: main stream、sub stream Video Type: video stream、video& audio Resolution: 1280*720p、1280*960 Bitrate Type: variable、constant Video Quality: highest、higher、medium、low、lower、lowest Frame Rate: 25、1/16、1/8、1/4、1/2、1、2、4、6、8、10、12、15、...
  • Page 30 OPERATION INSTRUCTIONS Video/Audio---Audio Audio settings Parameters Instructions Audio Encoding: G.711ulaw、G.711alaw、G.726 Audio Input: MicIn、LineIn Image---Display Settings Sharpness: the higher the sharpness, the clearer the image edge. Focus settings—Focus Mode - 28 -...
  • Page 31 OPERATION INSTRUCTIONS Under “Auto” mode : automatic focusing according to the monitoring scene. Under “Semi-auto” mode: focusing after controlling PTZ and lens zooming, it is no longer to focusing after focus clearly even though the scene changes. Under “Manual” mode: in live view screen, focusing manually. “Min.
  • Page 32 OPERATION INSTRUCTIONS WDR: ON/OFF White Balance: MWB、 AWB1、 AWB2、 Indoor、 Outdoor、 Fluorescent Lamp、 Incandescent Lamp DNR: ON/OFF Noise Reduction The value from 0 to 100 is optional Level: Mirror: Left/Right、Up/Down、Center、OFF Video Standard: 50hz、60hz Lens Initialization: Enable or disable Zoom Limit: Set the value according to the actual requirement Image---OSD Settings “Camera Name”...
  • Page 33 OPERATION INSTRUCTIONS Image---Text Overlay At most four lines of text can be overlaid on the image screen. Enter the required characters in the text line and check the corresponding text line number, then the required characters can be previewed on the image screen. Drag the characters through the mouse to the required display position and click to save the settings.
  • Page 34 OPERATION INSTRUCTIONS Image---Privacy Mask Users can set four privacy mask areas at most. Security---User The current user is admin, the user can set up 31 users at most. Add: click to get in the add user screen and enter the username and password .
  • Page 35 OPERATION INSTRUCTIONS Modify: Select the user that needs to be modified and click . On this screen, you can modify “User Name”、 “Password”、 “Level”. For the added and modified users, you can set up the “basic permission” and “camera configuration”. Delete: Select the user that needs to be modified and click , then click “confirm”...
  • Page 36 OPERATION INSTRUCTIONS Events---Motion Detection means to enable motion detection function. Area Settings: click , click the left mouse on the screen and drag the mouse, then release the mouse and complete a drawing area. You can draw 8 areas at most, when all the drawing areas are finished , click to finish drawing.
  • Page 37 OPERATION INSTRUCTIONS “arming schedule” shows the arming time of the current motion detection. Click to edit the arming schedule. After modifying the parameters, click to save the settings. Linkage method includes normal linkage and other linkage. For normal linkage, there are “notify surveillance center”、 “send email”、 “upload to FTP”、 “trigger channel”.
  • Page 38 OPERATION INSTRUCTIONS Events---Video Tampering means to enable video tampering function. Area Settings: click , click the left mouse on the screen and drag the mouse, then release the mouse and complete a drawing area. You can draw 8 areas at most, when all the drawing areas are completed, click to finish drawing.
  • Page 39 OPERATION INSTRUCTIONS Events---Alarm Input On alarm input screen, users can set “Alarm Input No.”、 “Alarm Name” and “Alarm Type”. Click to edit the arming schedule. Linkage method includes normal linkage and other linkage. For normal linkage, there are “notify surveillance center”、 “send email”、 “upload to FTP”、 “trigger channel”.
  • Page 40 OPERATION INSTRUCTIONS Events---Alarm Output “Alarm output”: users can choose the corresponding alarm output channel. “Alarm Name”: according to the need to set, the name can’t be copied. “Delay”: it means the duration time after the alarm. The optional time are 5s、 10s、 30s、1min、2min、5min、10min or manual.
  • Page 41 OPERATION INSTRUCTIONS Events---Exception “Exception Type”: there are “HDD Full”、 “HDD Error”、 “Network disconnected”、 “IP Address Conflicted” and “Illegal Login” to choose. “Normal Linkage”: there are “Notify Surveillance Center” and “Send Email” to choose. “Other Linkage”: choose the corresponding alarm output channel. After modifying the parameters, click to save the settings.
  • Page 42 OPERATION INSTRUCTIONS “Pre-record”: it is the prerecording time before video recording. “Post-record”: it is the delay time of video recording. and click to edit the record schedule. Choose the periods and type of recording. User can choose “All Day” or “Customize”. For “Customize”, users can choose specific recording period.
  • Page 43 OPERATION INSTRUCTIONS Storage---Storage Management Storage management is used to not only check the capacity and status of storage mediums, but also format the storage mediums. Storage---NAS Through the server address and file path of NAS, data can be stored in the network disk.

  • Page 44: Menu Functions

    OPERATION INSTRUCTIONS “file path” is the file path in the network dish. After modifying the parameters, click to save the settings. Note: Need to restart the IP camera after modifying or configuring parameters of network disk. Events---Snapshot Through snapshot parameters configuration, the device can automatically snapshot.
  • Page 45 OSD MENU INFORMATION OSD Menu VERSION :VR220T-128 TEMPERATURE:31℃ VOLTAGE:12.0V BACK EXIT DOME SETTINGS <IR LED> <WIPER> <IDLE> <ALARM> <ADVANCED> <OTHERS> BACK EXIT DOME SETTINGS MAIN MENU <IR LED> <WIPER> LANGUAGE:ENGLISH <IDLE> < INFORMATION> <ALARM> <DOME SETTINGS> <PRIVACY MASK> <MOTION> <CLOCK> RESTART <PASSWORD>...
  • Page 46 OSD MENU •LANGUAGE The language for the on-screen menus is Selectable. To MAIN MENU change the display language: Click IRIS + to enter and click up LANGUAGE :ENGLISH or down button to select. < INFORMATION> <DOME SETTINGS> All on-screen menus are changed to the selected <MOTION>...
  • Page 47 OSD MENU •SYSTEM INFORMATION The user can check the dome system information as MAIN MENU required. The system information includes: Dome ID, dome LANGUAGE :ENGLISH < INFORMATION> address, baud rate, protocol, temperature, voltage, alarm <DOME SETTINGS> <MOTION> information, dome title, version, date, time,...
  • Page 48 OSD MENU •IR LED The user can open and close the IR LED manually and set up MAIN MENU the IR LED work mode under this OSD mean. (suitable for LANGUAGE :ENGLISH speed dome with IR Led): < INFORMATION> <DOME SETTINGS> <MOTION>...
  • Page 49 OSD MENU •WIPER The user can make adjustment for the wiper under this menu (suitable for wiper-equipped dome) MAIN MENU Numbers : Move the cursor to “NUMBER” and click IRIS LANGUAGE :ENGLISH < INFORMATION> + to enter the setup of Wiper Number. Click the up or <DOME SETTINGS>...
  • Page 50 OSD MENU •IDLE IDLE setting means if there is no command for the MAIN MENU dome for a period of time, the dome will run the actions as LANGUAGE :ENGLISH < INFORMATION> defined. <DOME SETTINGS> <MOTION> TIME: Move the cursor to “TIME” and click IRIS + to enter, RESTART FACTORY DEFAULTS and click up or down button to select among 30 sec, 1 min,...
  • Page 51 OSD MENU •ALARM The dome system has 7alarm inputs and 1 alarm output. MAIN MENU (optional function). When an alarm is received, an input signal LANGUAGE :ENGLISH to the dome triggers the user defined action (such as presets, < INFORMATION> <DOME SETTINGS>...
  • Page 52 OSD MENU •AUX The user can set up the auxiliary output to trigger other MAIN MENU devices from an alarm or a controller. LANGUAGE :ENGLISH < INFORMATION> Move the cursor to AUX and click IRIS＋to enter and click up <DOME SETTINGS> <MOTION>...
  • Page 53 OSD MENU •SOFT LIMIT The user can set up the soft limit to define the left MAIN MENU and right boundaries for the pan movement. LANGUAGE :ENGLISH < INFORMATION> SOFT LIMIT Move the cursor here and click IRIS + to enter. <DOME SETTINGS>...
  • Page 54 OSD MENU •DOME SPEED To make a selection of the dome speed, the user MAIN MENU can enter this menu to set up. Move the cursor to DOME SPEED and click IRIS + to enter LANGUAGE :ENGLISH < INFORMATION> to select the dome speed when doing the pan <DOME SETTINGS>...
  • Page 55 OSD MENU •POWER ON ACTION The user can define the dome action when power MAIN MENU on, Move the cursor to POWER ON ACTION and click IRIS LANGUAGE :ENGLISH < INFORMATION> + to enter the mode of setup. <DOME SETTINGS> <MOTION>...
  • Page 56 OSD MENU •TILT ANGLE The user can set up the tilt angle under the menu of MAIN MENU TILT ANGLE. LANGUAGE :ENGLISH < INFORMATION> Move the cursor to “TILT ANGLE” and click IRIS + to the <DOME SETTINGS> <MOTION> setup of tilt angle . Click the up or down button to select RESTART the angle and click the IRIS + to confirm.
  • Page 57 OSD MENU •OTHERS MAIN MENU The user can set up TEMP MODE, INTERNAL FAN, LANGUAGE :ENGLISH PRESET FREEZE, STOP TIME. MENU OFF TIME and NORTH < INFORMATION> <DOME SETTINGS> ZERO here under the menu of “OTHERS” <MOTION> RESTART TEMP MODE: To set up the control mode of dome fans and FACTORY DEFUALTS heaters.
  • Page 58 OSD MENU •PRESET MAIN MENU The dome supports 220 presets. Please check the LANGUAGE :ENGLISH following steps to set up a preset. < INFORMATION> <DOME SETTINGS> PRESET NO.: Move the cursor here and click IRIS + to enter <MOTION> the setup of Preset Number. Click the up or down button to RESTART FACTORY DEFUALTS select a preset number (1-64 and 100-255) and click IRIS + to...
  • Page 59 OSD MENU •AUTO SCAN MAIN MENU The dome supports 8 groups of auto scan. Please LANGUAGE :ENGLISH check the following steps to set up a scan. < INFORMATION> <DOME SETTINGS> <MOTION> SCAN NO.: Move the cursor here and click IRIS + to enter the RESTART setup of SCAN Number.
  • Page 60 OSD MENU •AUTO CRUISE(SEQUENCE) The dome supports 8 groups of auto cruise and each MAIN MENU cruise supports 32 presets. . Please check the following LANGUAGE :ENGLISH < INFORMATION> steps to set up cruise. <DOME SETTINGS> <MOTION> RESTART SEQ NO.: Move the cursor here and click IRIS + to enter the FACTORY DEFAULTS setup of Sequence Number.
  • Page 61 OSD MENU •PATTERN TOUR MAIN MENU The dome supports 4 pattern tours and each pattern LANGUAGE :ENGLISH cover at most 10 Minutes of 500 commands. Please check <SYSTEM INFORMATION> the following steps to set up a pattern. <DISPLAY SETUP> <DOME SETTINGS> PATTERN NO.: Move the cursor here and click IRIS + to enter <CAMERA>...
  • Page 62 OSD MENU •AUTO TRACKING MAIN MENU Under the auto tracking mode, the dome will auto track LANGUAGE:ENGLISH the moving objects entering the scene. When the object is < INFORMATION> <DISPLAY SETUP> moving out of the scene, the dome will return to a preset <DOME SETTINGS>...
  • Page 63 OSD MENU •RESTART TRACKING SCENE SET: Here the user can set up the MAIN MENU scene that the dome will get back to when finishing the LANGUAGE :ENGLISH action of auto tracking. Move the cursor here and click IRIS + <...
  • Page 64 OSD MENU •FACTORY DEFAULTS FACTORY DEFAULTS will allow the user to recover all the MAIN MENU setting to factory default setting. LANGUAGE :ENGLISH < INFORMATION> Move the cursor here and click IRIS + to enter. Select “OK” or <DOME SETTINGS> <MOTION>...

  • Page 65: After- Sales Service

    OSD MENU After- sales service For speed dome production in our company, our company promises one year warranty. Under warranty, maintenance service is provided for free. But for the following situations, material and manual cost need to be paid. Don’t operate in accordance with 《User’s Manual》 to cause damage. The damage caused by force majeure factors such as lighting and fire, etc The damage caused by other manufacturer’...
  • Page 66 OSD MENU APPENDIX: Lighting and surge protection This product USES the gas discharge tube of TVS diode and protection circuit, can effectively prevent the 3.0 kV following transient lightning and surge lamp all types of pulse signal to the damage of equipment. But, for outdoor installation according to the actual situation on the premise of guarantee the electrical safety to do the necessary protective measures: ...
