Summary of Contents for Mark Fitness XM-4443

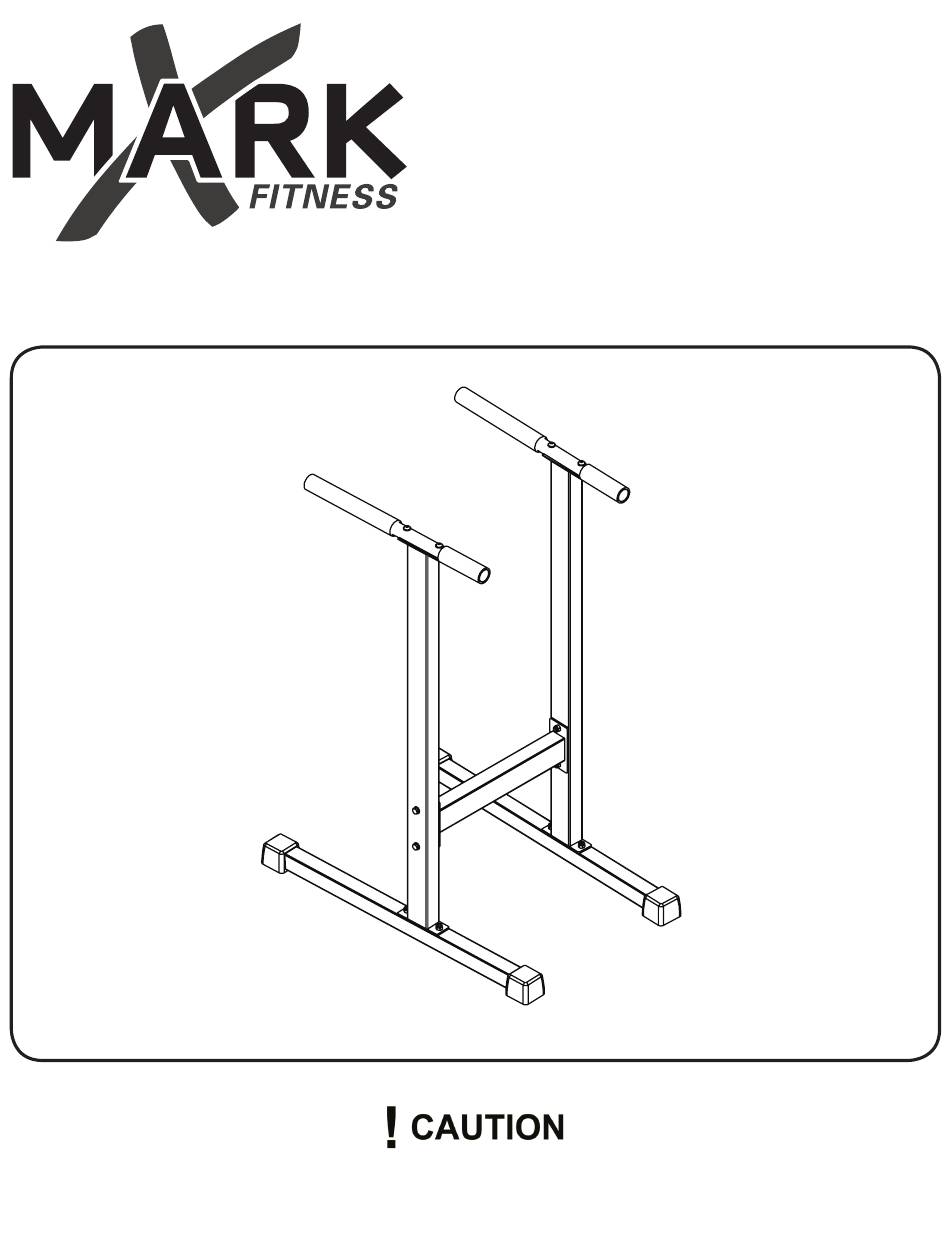

- Page 1 XM-4443 Dip Stand Owner’s Manual Read all precautions and instructions in this manual before using this equipment.
-
Page 2: Table Of Contents
Table of Contents Before You Begin Important Safety Information Assembly Exploded View Parts List... -
Page 3: Before You Begin
CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-4443 Visit www.xmarkfitness.com for warranty information When calling please have the following product information available: Model Name : XM-4443 Date Mfg.: Serial # Model Name Decal Location... -
Page 4: Important Safety Information
Important Safety Information NOTE: Hand tighten bolts and locknuts until machine is fully assembled. Lock nuts may require additional force to tighten completely. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. -
Page 5: Assembly
Assembly Attach the Upright (1) to the Base (3) with two M10 x 65mm Carriage Bolts (11) and two M10 Locknuts (10) ; do not tighten the Bolts yet. Repeat to complete the assembly for the other side. Attach the Crossbar (4) to the two Uprights (1) with four M10 x 70mm Bolts (13), four M10 Washers (8) and four M10 Locknuts (10) ;... - Page 6 Uprights (1) with four M10 x 57mm Button Bolts (12), four M10 Curved Washers (9) and four M10 Locknuts (10). Make sure that all parts are properly tightened before you use the Sit Stand! Congratulations!! You have completed assembly of your XM-4443!
-
Page 7: Exploded View
Exploded View... -
Page 8: Parts List
Part List XM-4443 Key No. Description Upright Dip Handle Base Crossbar Inner Cap Long Foam Grip Short Foam Grip M10 Washer M10 Curved Washer M10 Locknut M10 x 65mm Carriage Bolt M10 x 57mm Button Bolt M10 x 70mm Bolt... - Page 9 XMark Fitness, LLC Customer Service: 1-800-719-4605...
