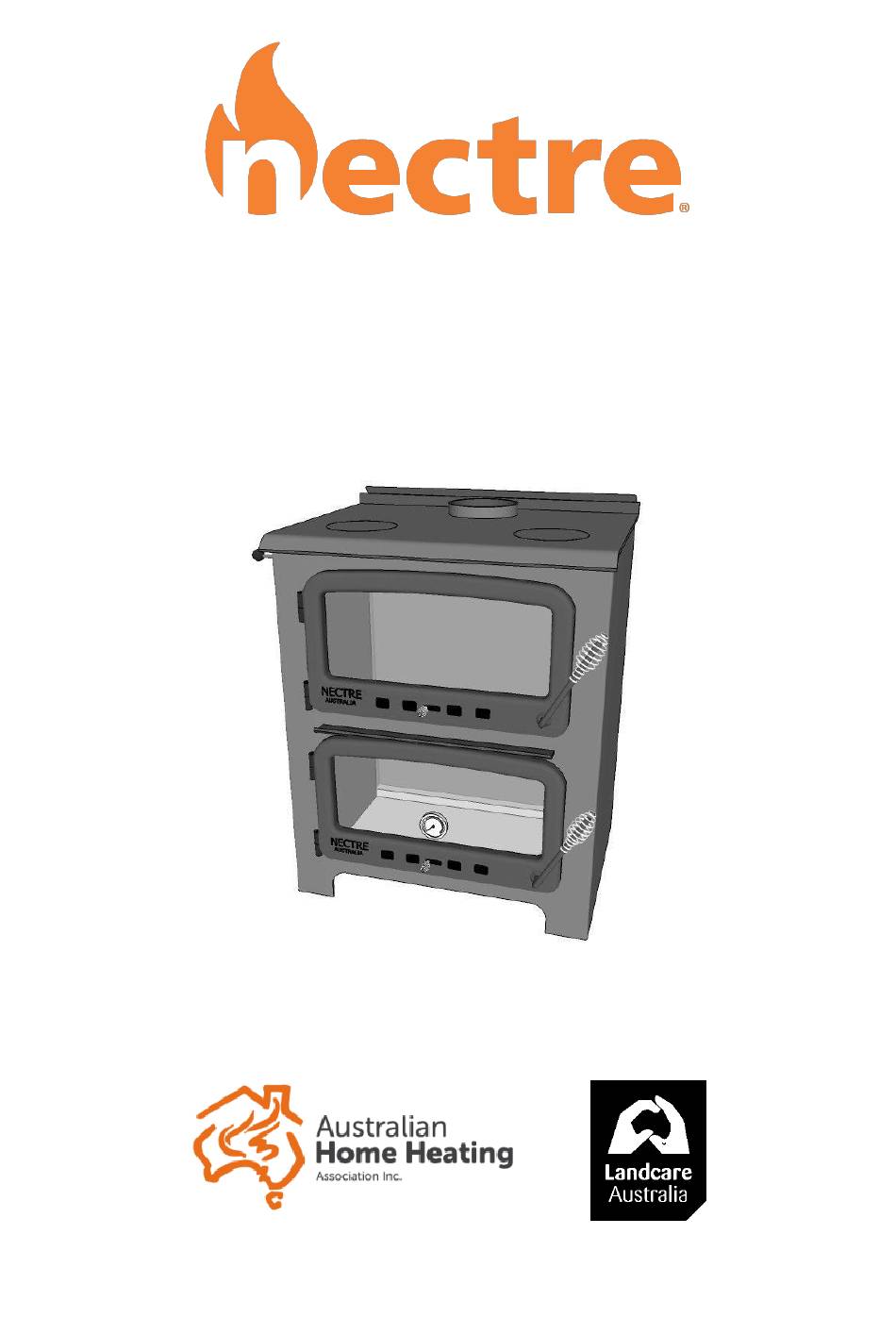

Nectre Big Bakers Oven Operating Instructions Keep these instructions for future reference Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA Revision B...
CONTENTS 1. OPERATING OPERATING ............... 1 THE OPERATING INSTRUCTIONS IN THIS MANUAL APPLY 1.1. IMPORTANT INFORMATION ........1 TO THE NECTRE BIG BAKERS OVEN. 1.2. GENERAL OPERATION ..........2 1.3. USING THE APPLIANCE FOR THE FIRST TIME ... 2 1.1.
Do not touch the paint work while it is curing otherwise it The Nectre Big Bakers Oven has two air controls and a bypass can leave a permanent mark on the appliance. ...
1.6. RUNNING THE APPLIANCE 1.7. OPERATING THE OVEN High Heat Output When using the oven ensure the bypass damper is in the closed position, and the bottom air slide in the oven door is closed. This setting generates maximum heat output and high oven To maintain a constant oven temperature, have the fire temperatures.
Draught is caused by the rising hot air in the flue when the fire 1) Remove the baffle plate (refer to ‘Replacing the Baffle has been lit. Plate’ under Maintenance & Servicing). 2) Hold a small mirror on an angle below the flue, with a The position, height and size of the flue can affect the torch shining towards it, and look for black creosote performance of the flue draught.
2.3. REPLACING THE BAFFLE PLATE 2. MAINTENANCE AND SERVICING The baffle plate helps to retain the heat in the firebox by lengthening the path of the flame before it goes up the flue. 2.1. REPLACING THE FIRE BRICKS Over time, the baffle plate will begin to sag a little due to the excessive heat.
2.6. REPLACING DOOR GLASS 2.7. REPLACING THE DOOR SEAL This task may be easier with the door removed from the This task may be easier with the door removed from the appliance and laid horizontally on a work-bench. appliance and laid horizontally on a work-bench. To replace the door glass: 1) Remove any remains of the old seal from the door.
3. WARRANTY Glen Dimplex Australia Pty. Ltd. warrants this stove to be able to operate under normal use and service and within 10 years from the date of the original purchase on the terms herein shall repair or replace without cost to the original customer any part thereof which shall be returned to our factory, transportation charges prepaid and which our inspection shows would prevent operation.
