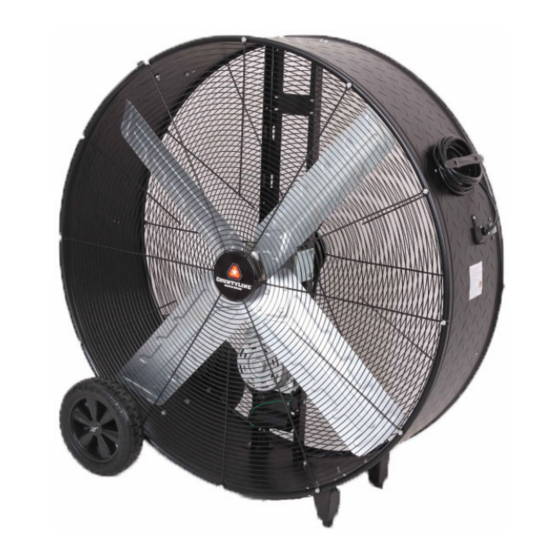

Model Numbers: CL-36-BDF-A, CL-42-BDF-A, CL-48-BDF-A
IMPORTANT: Read and understand all of the instructions in this manual before assembling,
starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for
future reference.
For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive
CAUTION
Materials And Vapors. Never use the fan in spaces which contain products such as
gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown
chemicals.
This product meets and exceeds the requirements of OSHA 1910.212(a)(5), the standard which
regulates electric fan blade safety, and is certified under UL# E355088.
Please note the serial number of your fan, and write it on the back of this User's Manual for future reference. Your serial
number is located on upper rear section of mount bar.
Distributed by: TRACTOR SUPPLY COMPANY 5401 Virginia Way
READ AND SAVE THESE INSTRUCTIONS
BRENTWOOD, TN 37027
For customer support, call: 1-888-376-9601
User's Manual and
Operating Instructions
E355088
CLFB-400
Advertisement
Table of Contents
Related Manuals for CountyLine CL-36-BDF-A
Summary of Contents for CountyLine CL-36-BDF-A
- Page 1 User’s Manual and Operating Instructions Model Numbers: CL-36-BDF-A, CL-42-BDF-A, CL-48-BDF-A E355088 READ AND SAVE THESE INSTRUCTIONS IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.
-
Page 2: Table Of Contents
NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Table of Contents Safety Information ..........2 Troubleshooting ..........5 Installation ............3 Wiring Diagram ..........5 Operation ............3 Replacement Parts List ........6 Belt Maintenance ..........4 Exploded View ........... -
Page 3: Installation
NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Assembly Attaching The Wheels 1. Slide wheel axle through wheel support 2. Slide one (1) wheel onto either side of axle. frame. 3. Secure wheel with one (1) cotter pin. figure 1: Wheel Assembly Installation Locate fan in safe, desired position on level ground, and connect to approved power source. -
Page 4: Belt Maintenance
3. Remove fuse carefully by pulling it outward. 4. Risk of Fire. Replace only with proper Amperage, 125 Volt fuse (as below): - CL-36-BDF-A: 8.0 Amp Fuse - CL-42-BDF-A: 5S 6.0 Amp Fuse - CL-48-BDF-A: 4.0 Amp Fuse www.TractorSupply.com For customer support, call 1-888-376-9601 Portable Air Circulator User’s Manual... -
Page 5: Troubleshooting
NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Wiring Diagram Troubleshooting Guide Problem Possible Cause Corrective Action Fan does not operate Inspect Power Cord for damage. Be sure 1. No power unit is plugged in and turned on Replace Power Switch (Note: To prolong life of Power Switch, it is recommended 2. -
Page 6: Replacement Parts List
NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Replacement Parts Models: Item # Description CL-36-BDF-A CL-42-BDF-A CL-48-BDF-A Fan Blade Assembly 90-003-1050 90-003-2050 90-003-5250 Power Switch Holder 90-016-0100 90-016-0100 90-016-0100 Capacitor 90-004-1000 90-004-1000 90-004-2500 Power Switch... -
Page 7: Exploded View
NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Exploded View figure 6: Exploded View Portable Air Circulator User’s Manual For customer support, call 1-888-376-9601 www.TractorSupply.com... - Page 8 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 1 YEAR LIMITED WARRANTY If the manufacturer finds the item to be in normal operating condition, or not defective, the item will be returned freight collect. This Limited Warranty is in lieu of all other express warranties.
