NDS357X IRD User's Manual
Web-NMS Version: 1.05
Software: 2.00
Hardware: 0.20
Chengdu Dexin Digital Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS357X and is the answer not in the manual?

Questions and answers

Summary of Contents for Dexin NDS357X

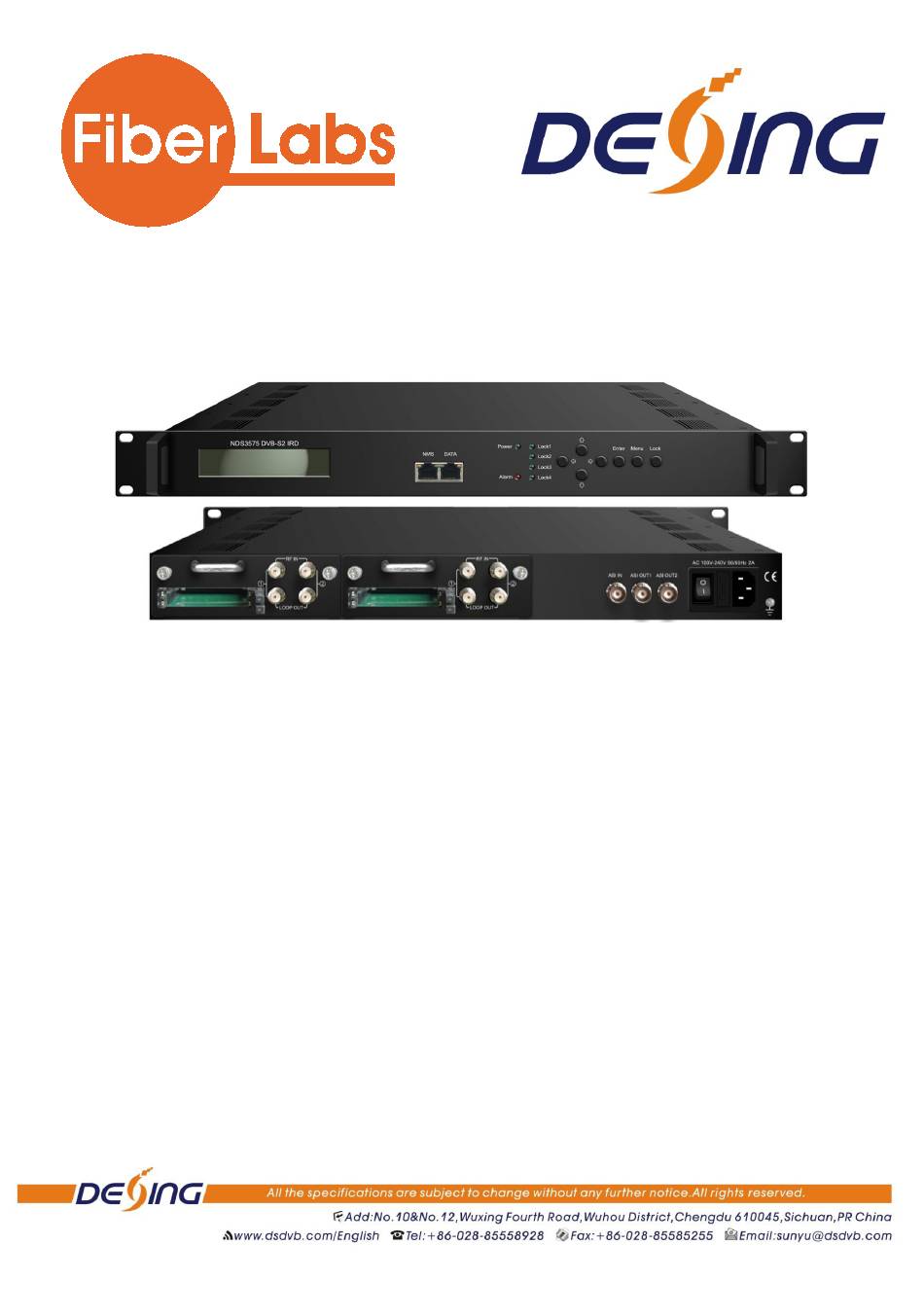

  • Page 1 NDS357X IRD User’s Manual Web-NMS Version: 1.05 Software: 2.00 Hardware: 0.20 Chengdu Dexin Digital Technology Co., Ltd.
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. DEXIN shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    DIRECTORY Chapter 1 Product Outline ................1 1.1 Outline ........................1 1.2 Features ........................1 1.3 Specifications ......................1 1.4 Principle Chart ......................2 1.5 System Connection Sample ..................3 1.6 Appearance and Description ..................3 Chapter 2 Installation Guide ................5 2.1 Acquisition Check .....................

  • Page 4: Chapter 1 Product Outline

    Its pluggable structure design greatly facilitates the change of Tuner modules as needed. To meet customers‟ various requirements, NDS357X is also equipped with 1 ASI and 1 IP input for re-mux, and output with 2 ASI ports and IP port.

  • Page 5: Principle Chart

    Input Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 4x RF (DVB-C, T/T2, S/S2 optional), F type 8/9, 9/10 1×ASI input for re-mux, BNC interface Constellation QPSK, 8PSK 1xIP input for re-mux (UDP) Output 1*MPTS & 8*SPTS over UDP, Tuner Section RTP/RTSP.

  • Page 6: System Connection Sample

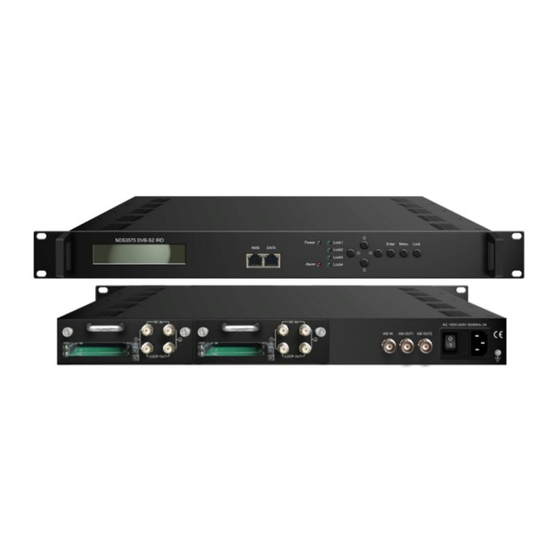

    NDS357X IRD User‟s Manual 1.5 System Connection Sample Tuner 1 ASI Coaxial 1 IP NDS357X Cable Tuner Modulator 1 ASI 1 IP NDS357X 1.6 Appearance and Description Front Panel Illustration: LCD Display NMS Port: connect to PC for device management;...
  • Page 7 NDS357X IRD User‟s Manual and IP input) Tuner Input 3 & 4 ASI input port for re-mux ASI mirrored output Power switch/Fuse/Socket Grounding 4 / 41...

  • Page 8: Chapter 2 Installation Guide

    NDS357X IRD User‟s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  NDS357X IRD 1pcs ...
  • Page 9 NDS357X IRD User‟s Manual Item Requirement When user installs machine frame array in one machine hall, the distance between 2 rows of machine frames should be Machine Hall Space 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 10: Wire"S Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS357X IRD, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 11 NDS357X IRD User‟s Manual  IP Input/output Cable Illustration:  Tuner Cable Illustration:  ASI Input/output Cable Illustration: 8 / 41...

  • Page 12: Chapter 3 Operation

    NDS357X IRD User‟s Manual Chapter 3 Operation The front panel of NDS357X IRD is the user-operating interface and the equipment can be conveniently operated and managed according to the procedures displayed on the LCD: Keyboard Function Description: LEFT/RIGHT: Choose and set the parameters.
  • Page 13 NDS357X IRD User‟s Manual 3.1.1 Max Birate 3 CI Card 3.1 Card A 3.1.2 Input TS Mode 3.1.3 Card Error Check 3.1.4 Parse Program 3.1.5 Descramble Program 3.1.6 Rom Version 3.1.7 Card Status 3.1.8 Descramble Error ‘ ’ (Same content with...

  • Page 14: General Setting

    NDS357X IRD User‟s Manual 3.2 General Setting Switch on the device and after a few seconds‟ initialization, it presents start-up pictures as below: Start up… Start OK… Bitrate: xx.xxx Mbps  IRD: Device‟s name  Bitrate: xx.xxx Mbps indicates the current output bitrate.
  • Page 15 NDS357X IRD User‟s Manual 3.2.2 Input Sets NDS357X supports 4 tuners input, 1 ASI input and 1 IP stream input. Users can enter „Input Sets‟ to configure the tuner/ASI/IP parameters to receive the transport streams and select programs to mux out via IP packages. It displays as below. (Taking DVB-S/S2 as example) Input Sets 2.1 Tuner DVBS/S2...
  • Page 16 NDS357X IRD User‟s Manual For reading the input TS Locked Mux Program bitrate Bitrate: 4.040 Mbps TS Lock Parse Program For reading the number Searching Program Select Program programs from Get 7 Programs Tuner 1 (or 2) Mux Program (0/7)
  • Page 17 Select Program 3.2.3 CI Card NDS357X IRD supports 4 CI cards (Card A, B, C and D) to descramble encrypted programs from RF, ASI or IP. Users can press ENTER key to enter „3 CI Card‟ to configure the 4 cards respectively.
  • Page 18 48 Mbps  Input TS Mode NDS357X has 6 signal sources: Tuner 1-4, ASI, and IP. One CI card can applied to descramble one channel input signal from the 6 signal sources. „Skip CI card‟ means to skip the card which is used for FTA stream.
  • Page 19 Desc Program  Input TS Mode NDS357X has 6 signal sources: Tuner 1-4, ASI, and IP. One BISS can be applied to descramble one channel input signal from the 6 signal sources. „Skip BISS‟ means to skip the card which is used for FTA stream.
  • Page 20 NDS357X IRD User‟s Manual NOTE: BISS A & B are designed to descramble tuner 1 & 2, ASI input and IP input, while BISS C & D A are designed to descramble tuner 3 & 4, ASI input and IP input.
  • Page 21 TS Output bit-rate: Users can set TS maximum output bit rate manually in this menu. TS output bit rate 054 Mbps ASI out select: NDS357X is equipped with 1 pair of ASI mirror out ports which can transfer one channel IP stream out copied from the MPTS or 8 SPTS. ASI Output Select...
  • Page 22 ON ID: Users can set ON ID (original network ID) in this menu. ON ID 00001 3.2.6 IP Stream NDS357X IRD supports 1MPTS and 8 SPTS over IP (UDP, RTP/RTSP) output. Users can set the IP out parameters in this menu.. IP Stream To configure the general...
  • Page 23 NDS357X IRD User‟s Manual address NMS IP connecting the device to PC 192.168.000.136 Subnet Mask 255.255.255.000 Gateway 192.168.000.001 MAC Address 201012345678 Web NMS Port 00080 Reset Password? 3.2.8 System Users can set the system parameters in this menu. Enter „System‟ submenus to separately set corresponding parameters.
  • Page 24 NDS357X IRD User‟s Manual Reset All Sets? Choose yes to restore the device into factory‟s default configuration. Press DOWN/UP key to select LCD Time-out a time out for the LCD lighting 30 s duration (5-120 seconds) Key Password To set a 6-digit password for...

  • Page 25: Chapter 4 Web-Based Nms Management

    NDS357X IRD User‟s Manual Chapter 4 Web-based NMS Management In addition to using front buttons to control the device, users can also control and set the configuration with the web Brower in the PC. 4.1 login The default IP address of this device is 192.168.0.136. (We can modify the IP through the front panel.)
  • Page 26 NDS357X IRD User‟s Manual can have an overview of the device‟s system information and working status. Language shift area System information Input information of the 4 satellite signals, ASI and 4 IP streams. Green light indicates the corresponding signal is properly locked.
  • Page 27 Parameters → CI Card: NDS357X supports 4 CI cards (Card A, B, C and D) to descramble programs from encrypted RF, ASI or IP. Users can click and enter „CI Card‟ to configure the 4 cards respectively and select target programs to decrypt. (Figure-6)
  • Page 28 NOTE!  Input TS Mode NDS357X has 6 signal sources: Tuner 1-4, ASI, and IP. One CI card can be applied to descramble one channel input signal from the 6 signal sources. „Skip CI card‟ means to skip the card which is used for FTA stream.
  • Page 29 NDS357X IRD User‟s Manual  Card Error Check Users can decide whether to enable or disable the card error check function by checking the box. After configuring the above CI card parameters, click button to apply the input data and button to parse programs from the channel selected in „Input TS...
  • Page 30 Figure-8  Input TS Mode NDS357X has 6 signal sources: Tuner 1-4, ASI, and IP. One BISS tag can be applied to descramble one channel input signal from the 6 signal sources. „Skip BISS‟ means not to involve BISS function and it is used for FTA stream.
  • Page 31 NDS357X IRD User‟s Manual (DVB-S/S2 modulators). Input corresponding items and data to active the BISS descrambling as principles be Modulating Side (BISS SCR) Receiving Side (BISS DESCR) Digit (0x----) Mode 1+SW Data Mode 1+Descrambler Key Mode E+ESW Data + Device...
  • Page 32 NDS357X IRD User‟s Manual Number before slash indicates the programs which have been descrambled. Number behind slash indicates the whole programs from the selected channel. Users can also read the program information by clicking „+‟ symbol. Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface...
  • Page 33 NDS357X IRD User‟s Manual ASI output select: NDS357X is equipped with 1 pair of ASI mirror out ports which can transfer one channel IP stream out copied from the MPTS or 8 SPTS. After finishing the configuration, click to confirm.
  • Page 34 NDS357X IRD User‟s Manual : To enable/disable the PID remapping To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output.
  • Page 35 NDS357X IRD User‟s Manual Click “Add” button to add more columns. Figure-13 Parameters → IP Stream: This unit supports TS output in IP (1 MPTS & 8 SPTS). Click “IP Stream” and it displays the interface where users can configure the MPTS/SPTS out parameters. (Figure-14) Figure-14 Parameters →...
  • Page 36 NDS357X IRD User‟s Manual Figure-15 System → LCD/Keyboard: From the menu on left side of the webpage, clicking “LCD/Keyboard”, it will display the screen as Figure-16 where to control the device‟s front panel. Figure-16 System → Password: From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-17 where to set the login account and password for the web NMS.
  • Page 37 NDS357X IRD User‟s Manual Figure-17 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it will display the screen as Figure-18 where to save or restore your configurations. Figure-18 System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it will display the screen as Figure-19 where to backup or load your configurations.
  • Page 38 NDS357X IRD User‟s Manual Figure-19 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-20 where to update firmware for the device. Figure-20 System → Reboot: From the menu on left side of the webpage, clicking “Reboot”, it will display the screen as Figure-21 where to restart the device manually.
  • Page 39 NDS357X IRD User‟s Manual Figure-21 36 / 41...

  • Page 40: Chapter 5 Troubleshooting

    NDS357X IRD User‟s Manual Chapter 5 Troubleshooting DEXIN‟s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products‟ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 41: Chapter 6 Packing List

     RF Loop-through Cables 2pcs  Power Cord 1pcs Ordering Guide NDS357X, „X‟ should be interpreted as different digits which indicate tuners of different standard.  NDS3571 DVB-C IRD  NDS3574 DVB-T/T2 IRD  NDS3575 DVB-S/S2 IRD 38 / 41...
