Summary of Contents for Dynamic iPortal 2

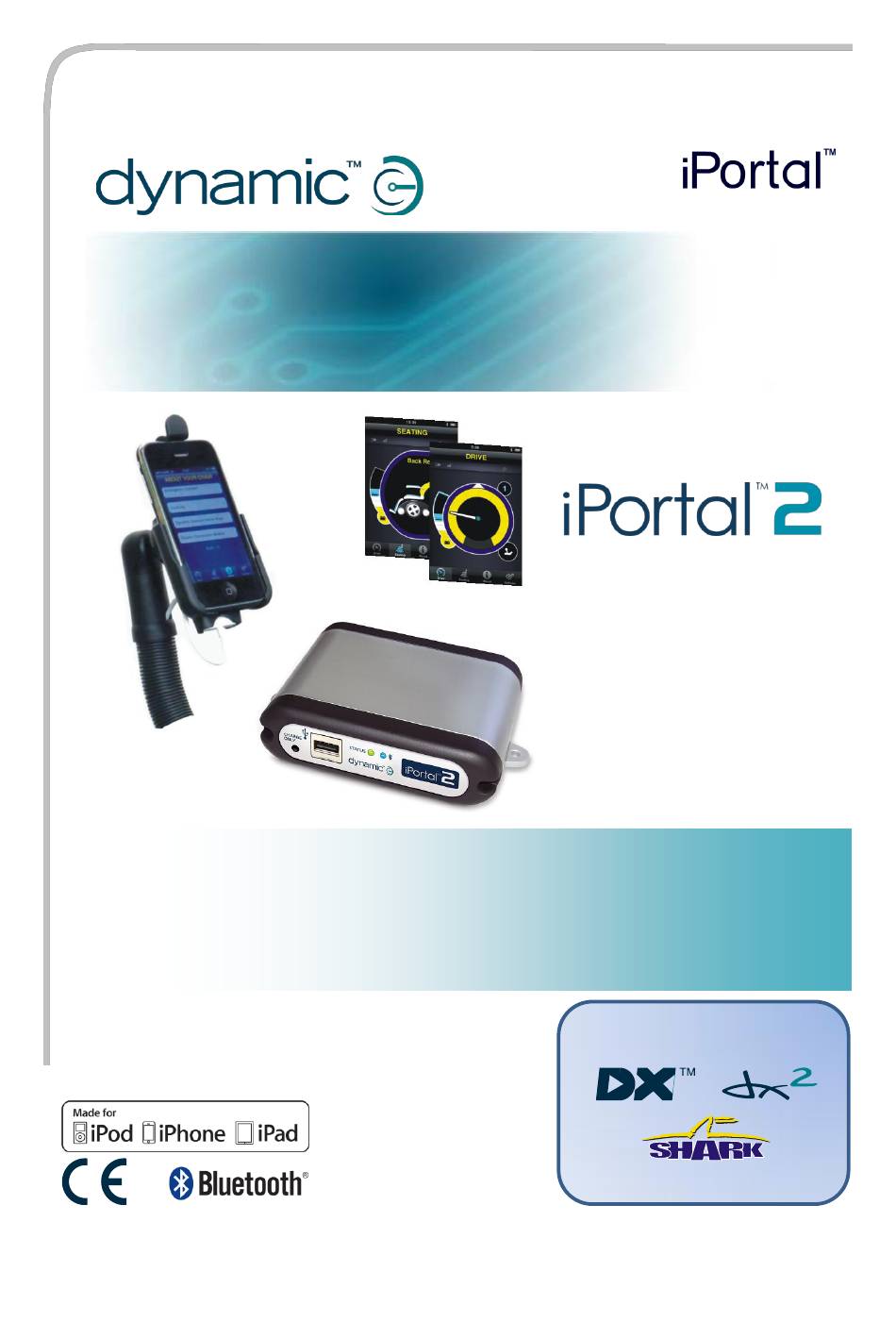

- Page 1 your communication bridge to the world Installation Manual compatible with GBK52981 iPortal2 Installation Manual Issue 1.0, January 2013...
-
Page 2: About This Manual
1 About this manual This manual is an Installation Manual, which is primarily targeted towards the manufacturer/dealer. There is also a User Manual available, which is targeted towards the powered-wheelchair user. This Installation Manual is for manufacturers/dealers. It is assumed that you are an approved manufacturer/dealer preparing to install the iPortal2 module, mounting arm and cradle. - Page 3 Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. iPad is a trademark of Apple Inc. s, the Dynamic logo, the Shark, DX, DX2, iPortal2 and Dashboard logos are trademarks YNAMIC...
-
Page 4: Table Of Contents
2 Contents ABOUT THIS MANUAL ..........................2 CONTENTS ..............................4 INTRODUCTION ............................5 SPECIFICATIONS ............................6 ........................... 6 LECTRICAL SPECIFICATIONS ........................7 ECHANICAL SPECIFICATIONS INSTALLATION ............................8 ........................8 OUNTING AND CONNECTING 5.1.1 Mounting the arm and cradle ......................8 5.1.2 Mounting the module ........................ -
Page 5: Introduction
3 Introduction The iPortal Dashboard for iOS devices displays wheelchair information in real-time using Bluetooth technology to communicate with the wheelchair system. The iPortal2 is fully ® compatible with the Shark, DX, and DX2 control systems. The iPortal Dashboard has the following features: ... -
Page 6: Specifications
NOTE iPortal2 is the new, updated module in Dynamic Controls' iPortal system. In this manual, iPortal refers to the complete system, that is: iPortal2 module, cradle, cables and software etc., where iPortal2 just refers to the latest electronic module, that is, the electronics that the iPortal system connects to. -
Page 7: Mechanical Specifications
4.2 Mechanical specifications DJ-BTINT DJ-GNKS-IPH DJ-GNKL-IPH GBK52981 iPortal2 Installation Manual Specifications... -
Page 8: Installation
5 Installation The installation instructions for the iPortal2 module should be read and understood in conjunction with the installation manual for the Shark, DX or DX2 host system. CAUTION Chemical cleaning agents may cause damage to the iPortal2 module, mounting arm and cradle. - Page 9 NOTE The cradles listed above support the iPhone 3 & 4 variants, and the iPod touch 3. For mounting solutions with other Apple iOS devices, please consult your local Dynamic Controls office or mobility dealer. GBK52981 iPortal2 Installation Manual...
- Page 10 To change the cradle: Remove the cradle from the mounting arm. o Loosen and release the nut from the cradle. o Pull hard to release the cradle from the mounting arm. Replace the cradle on the mounting arm. o Push the cradle firmly into position.
-
Page 11: Mounting The Module
To attach the mounting arm to the chair: WARNING A mounting bracket is not supplied. It is the responsibility of the manufacturer/dealer to design and make a suitable bracket for attachment to the chair. The mounting arm must be attached to this bracket using only the M10 bolt and washers supplied by D YNAMIC ONTROLS ... - Page 12 Permitted module orientation 1. Permitted module orientation 2. NOTE As shown in the diagram above, leave at least 50 mm / 2 inches clearance for the user to insert a USB plug into the auxiliary USB connector on the module. WARNING Mount the module only with the Apple USB connector, DK and DX BUS connectors facing down or towards the rear of the chair.
-
Page 13: Connecting The Module
5.1.3 Connecting the module WARNING Do not use damaged or abused cables or connectors. A damaged cable can potentially produce localised heat, sparks or arcing and can cause burning or fire resulting in injury or death. WARNING Prevent water or dirt entering the module through the unused DX or DK connector. The module is supplied with rubber bungs for both connectors. - Page 14 5.1.3.2 Connect the BUS cable The iPortal2 module connects with either the Shark or the DX BUS. Do not connect the module to both Shark and DX at the same time. No damage will result if both are accidently connected, but the system will not work correctly until one is disconnected. The iPortal2 module automatically detects which bus is connected.
- Page 15 Connecting with the Shark system using a Y cable at the remote If there is no ACU, and if it is more convenient for cable routing, a Y cable (GSM80951) may be used from the Shark remote, as shown in the diagram below. Y Cable Connecting the Shark system for Accessibility or Mouse Mover To use the Accessibility feature, and/or the Mouse Mover feature with the Shark system, a...
- Page 16 5.1.3.4 Connecting the module into a DX or DX2 system Note that the iPortal2 module has only one DX BUS socket. Connecting with the DX system using any available DX BUS connector Use an available connector on any DX module and a short DX cable such as the GSM63005. Alternatively, use an available connector on a DX splitter box (DX-SKT-X4) and a short DX cable such as the GSM63005.
-
Page 17: Connecting The Ios Device
5.1.4 Connecting the iOS device 5.1.4.1 Connecting the charging cable Connect the charging cable to the Apple USB port on the iPortal2 module and to the iOS device. Depending on the way the user has set-up the iOS device, it may beep or vibrate to indicate that the USB port is charging the device. - Page 18 5.1.4.2 Pairing the iOS device with the iPortal2 An iOS device communicates with the iPortal2 module using a Bluetooth wireless ® connection. Before using an iOS device with the iPortal2, a Bluetooth wireless connection ® needs to be established between the two; this is called pairing. Pairing is normally a one-off procedure: that is, once an iOS device has been paired with the iPortal2, it will remain paired during normal operation.
- Page 19 Step 3: When the iPortal2 is displayed on the screen, tap on it to connect to it. After the iOS device and the iPortal2 have successfully paired, the connection is listed on the Bluetooth® menu. Note that sometimes when attempting to pair the iOS device with the iPortal, one or the other may time out while waiting for input from you.
- Page 20 To clear the iPortal2 from the iOS device Bluetooth list: ® From the iOS device Home screen, choose Settings ► General ► Bluetooth ► Forget this Device, and tap Forget Device. GBK52981 iPortal2 Installation Manual Installation...
-
Page 21: Status Leds
5.1.5 Status LEDs 5.1.5.1 Bluetooth wireless link flash codes (blue LED) ® The status of the Bluetooth ® wireless link is indicated by a blue LED on the iPortal2 connection module. Pattern Status On steady Connected to at least one device Bluetooth off, or power off, lost all ®... -
Page 22: Programming
6 Programming The iPortal2 module can be added to any Shark or DX/DX2 System without reprogramming the wheelchair’s control system. New firmware may be downloaded to the iPortal2 module by the Dashboard application. Downloading a new version of the iPortal Dashboard application will check the iPortal’s firmware on the module and automatically upgrade it, if you choose. -
Page 23: Appendices
The iPortal2 is intended for wheelchair users who have difficulty viewing the display or interface on the regular Dynamic Controls Remotes and would benefit from a heads up display of visual feedback on the operational state of the controller system. -
Page 24: Maintenance
(for example by being dropped), have it checked by qualified personnel before operating. 8.4 Warranty All equipment supplied by Dynamic Controls is warranted by the company to be free from faulty workmanship or materials. If any defect is found within the warranty period, the company will at its sole discretion refund, replace or repair the equipment without charge for materials or labour. -
Page 25: Safety And Misuse Warnings
4. DYNAMIC CONTROLS has tested the iPhone to confirm that Radio Frequency Interference (RFI) caused by the iPhone does not change the behaviour of the wheelchair control systems in any way. In the very unlikely case that the iPhone or another mobile communications device would cause the wheelchair to behave erratically, turn off the control system. -
Page 26: Environmental Statement
Apple Product as a result of using the software. 8.9 EU Authorised Representative Dynamic Europe Ltd. Finepoint Way Kidderminster, Worcestershire DY11 7FB, United Kingdom... -
Page 27: Notes
9 Notes (Use this page to add your own notes.) GBK52981 iPortal2 Installation Manual Notes...
