HyperSound™ System (HSS) Demo and Evaluation Systems

Set-Up and Operation Guide

Follow this step-by-step guide for an optimal installation.

Included:

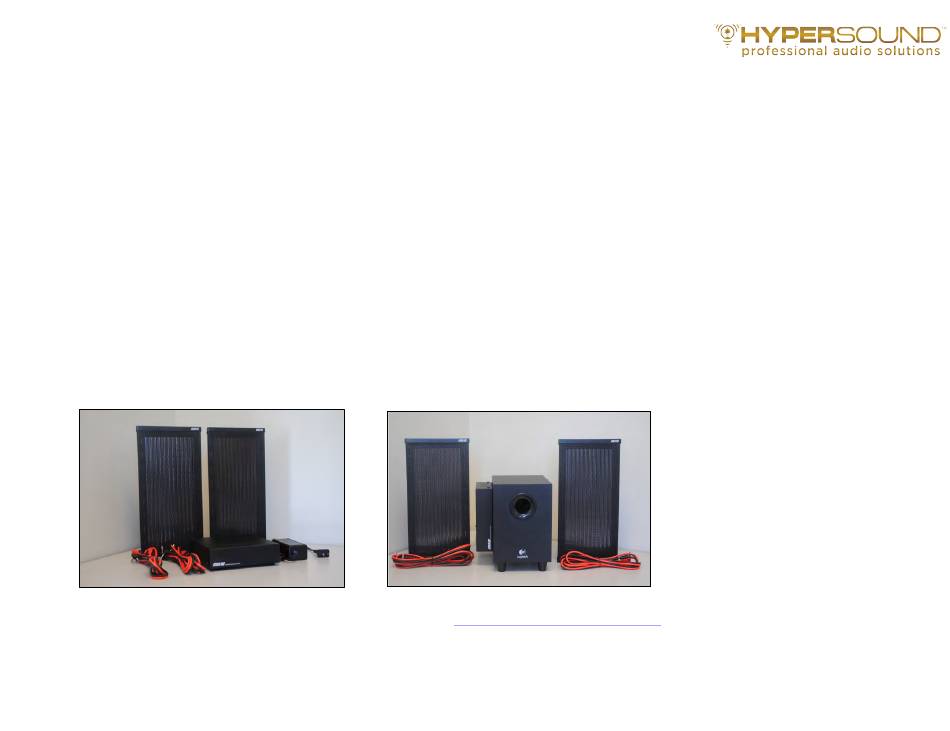

ü 2 HSS Emitters (Speakers)

ü 2 Sets of Red & Black Emitter Cables With Banana Connectors

ü 1 Audio Cable – RCA plugs (male) to 3.5mm Male Stereo Jack

ü 1 Amplifier plus 30 volt DC Power Supply*

ü 1 Instruction Booklet

*If your unit includes the optional Woofer, please reference Woofer-specific instructions (page 3) for set-up.

Without Optional Woofer

This information is also available in video format:

With Woofer

http://vimeo.com/57975131

Table of Contents

Need help?

Do you have a question about the HSS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HyperSound HSS Series

Page 1 HyperSound™ System (HSS) Demo and Evaluation Systems Set-Up and Operation Guide Follow this step-by-step guide for an optimal installation. Included: ü 2 HSS Emitters (Speakers) ü 2 Sets of Red & Black Emitter Cables With Banana Connectors ü 1 Audio Cable – RCA plugs (male) to 3.5mm Male Stereo Jack ü...
Page 2 Connection NOTE: Unplug equipment while configuring all audio and power connections. STEP 1: Red & Black Emitter Cable Connections Connect Cables with red and black Banana connections to the back of each Emitter and the corresponding ends to the back of the Amplifier as shown. STEP 2: RCA Cable Connections Plug the dual RCA Jack end of...
Page 3 STEP 3: Amplifier Power Connection 1. Plug the Amplifier Power Cord into the 30v DC Supply located on the back of the Amplifier 2. Plug the Amplifier Power Supply into a properly grounded AC outlet NOTE: The HSS unit does not have a power switch. It will automatically turn ON when AC power is established. After connecting to the AC power outlet, a small LED light located next to the DC power receptacle will glow green, indicating the unit is on.
Page 4 Optional Set-Up: Single Channel (Mono) 1. Take the dual female RCA cable with the single male RCA cable at the other end, and connect the single male RCA to only the L (left) input channel. 2. Connect only one set of speaker wires to the corresponding L (left) channel.
Page 5 Emitter Set-Up & Alignment STEP 1 Set-Up Location Place the two Emitters approximately 5 feet apart on a level surface, such as a table. Angle the Emitters slightly in (as shown in diagram to right). If your unit includes floor-standing speakers instead of desktop speakers, place the Amplifier next to one of the floor-standing speakers, as shown in diagram on bottom left.
Page 6 STEP 2: Chair Placement Incorrect Emitter Placement Center a chair directly in front of and approximately 5 feet from the Emitters, as shown in the diagram to the left. Have a test Listener sit in the chair. The diagram to the right shows incorrect positioning.
Page 7 Volume is controlled by the audio source device. Adjust the bass with the dial located on the backside of the Woofer (if it is included with your unit). It is suggested that the dial be positioned at the 11 o’clock position. HyperSound Pro Audio Solutions 12220 Scripps Summit Drive, Suite 100 San Diego, CA 92131 hypersound.com Ÿ...
