Summary of Contents for Steady State Fate DivKid RND
- Page 2 Contents Description Installation Specifications Diagram Functional Overview 1. Clock ........1a.
- Page 3 Description Rnd is a random voltage generator and random gate source with an internal clock. The quantized and smooth outputs are completely independent, and each feature an attenuator to fine tune the output voltage between 0V and 10V. This allows for a musically useful range to be defined.
- Page 4 Installation To install, locate 2HP of space in your Eurorack case and confirm the positive 12 volts and negative 12 volts sides of the power distribution lines. Plug the connec- tor into the power distribution board of your case, keeping in mind that the red band corresponds to negative 12 volts.

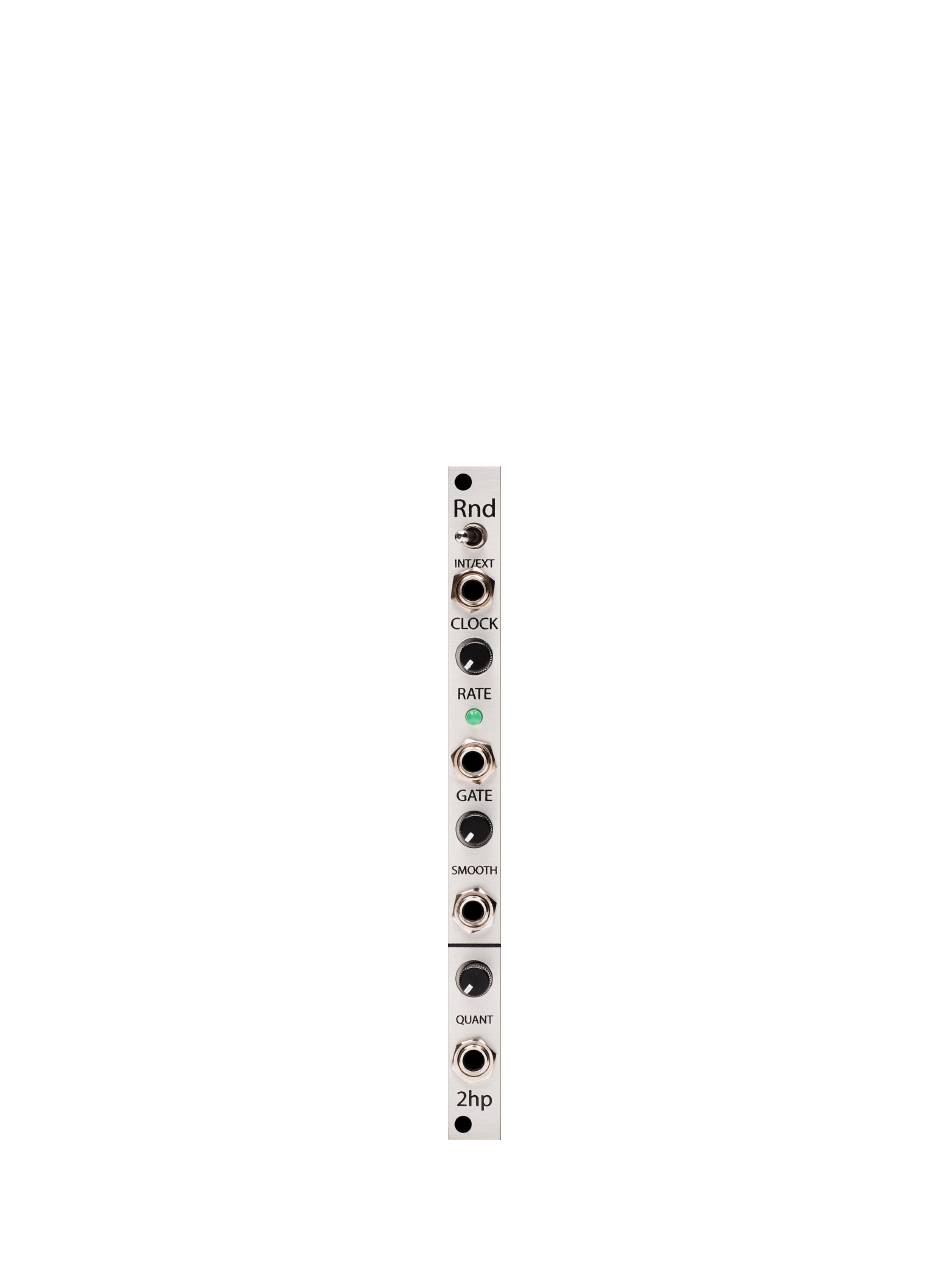

- Page 5 Diagram...
- Page 6 Functional Overview 1. Clock 1a. Int / Ext Switch Sets whether the module is running on an internal or external clock source. When set to the left, the module is set to internal. When set to the right, the module is set to external. 1b.
- Page 7 When the Int/Ext switch is set to external, this output emits random gates with a 50% chance of being high or low at any given moment. The rate of change is controlled by the rate Knob. 4. Smooth 4a. Smooth Attenuator Output level control for the Smooth Output Range: 0V to 10V.
