Instruction Manual

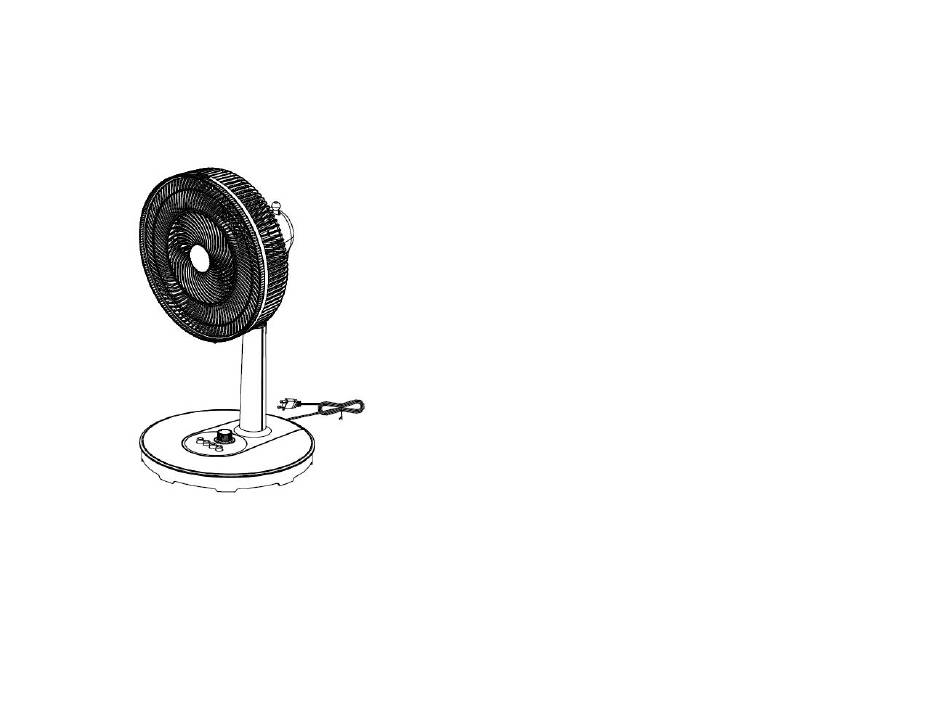

Electric Fan
ETLus
KSTFA12AAG
For Household Use Only
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This fan has a polarized plug (one blade is wider than the other). To reduce the
risk of electric shock, this plug is intended to fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. Do not attempt to defeat this safety feature.
This product employs overload protection (fuse). A blown fuse indicates an
overload or short-circuit situation. If the fuse blows, unplug the product from the
outlet. Replace the fuse as per the user servicing instructions (follow product
marking for proper fuse rating) and check the product, If the replacement fuse
blows, a short-circuit may be present and the product should be discarded or
returned to an authorized service facility for examination and/or repair.
WARNING
– To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This
Fan With Any Solid-State Speed Control Device.
WARNING
– To Reduce The Risk Of Electric Shock, Do Not Expose to Water
or Rain.
WARNING
– This is a fan – not a toy! To reduce the risk of personal injury
and electric shock, it should not be played with or placed where small children can
reach it.
When using electric appliances, basic safety precautions should always be
followed, including the following:
1. Do unplug or disconnect the appliance from the power supply before servicing.
2. Do not use gasoline, thinners, solvents, ammonias or other chemicals for
cleaning.
3. Do not operate any fan with a damaged cord or plug. Discard fan or return to
an authorized service facility for examination and/or repair.
4. Do not run cord under carpeting. Do not cover cord with throw rugs, runners,
or similar coverings. Do not route cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be tripped over.
5. Do not use this product outdoors.
6. Do not use this product on wet surfaces.
7. Do not use this product in a bathtub or shower.
8. Do not use near furnaces, fireplaces, stove or other high-temperature heat
sources.
9. Do not immerse this product in water or allow water to drip into the motor
housing.
SAVE THESE INSTRUCTIONS
P1-14606
P2-14606

Advertisement

loading

Related Manuals for Keystone KSTFA12AAG

Summary of Contents for Keystone KSTFA12AAG

  • Page 1 ETLus outlet. Replace the fuse as per the user servicing instructions (follow product KSTFA12AAG marking for proper fuse rating) and check the product, If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
  • Page 2 User Servicing Instructions Know Your Fan Parts and Features Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. Open fuse cover (A.) by sliding access cover on top of attachment plug towards blades. Remove fuse carefully (B.) by gently prying out the ends of the fuse from the receptacle.

  • Page 3: How To Assemble

    Swing Control and Tilting Adjustment Fixing Rear Guard and Fixing Fan Blade  Press down…Swivel starts. Pull up…Swivel stops. P5-14606 Always switch the fan off  before making a tilt adjustment. The air flow can be adjusted upward or downward simply by moving the guard up or down.

  • Page 4: How To Operate

    disassembling. Fixing Front Guard and Features How to Operate P7-14606  Use tool to lock the screw and nut of the guard, turn counter clockwise fixation the front guard. How to Take off Front Guard  Use tool to unlock the screw and nut of the guard, turn counter clockwise remove the front guard.

  • Page 5: Maintenance And Storage

    How to Disassemble the Base Maintenance and Storage P8-14606 1. Put the motor shaft upward, then unscrew fixing ring by turning anticlockwise. (Refer to the drawing at below) WARNING Holding the base firmly, press the stand hook.  When cleaning, the plug must be removed from the power point. Do not Then pull the base and remove the stand hook.
