Summary of Contents for Berger & Schroeter 31487

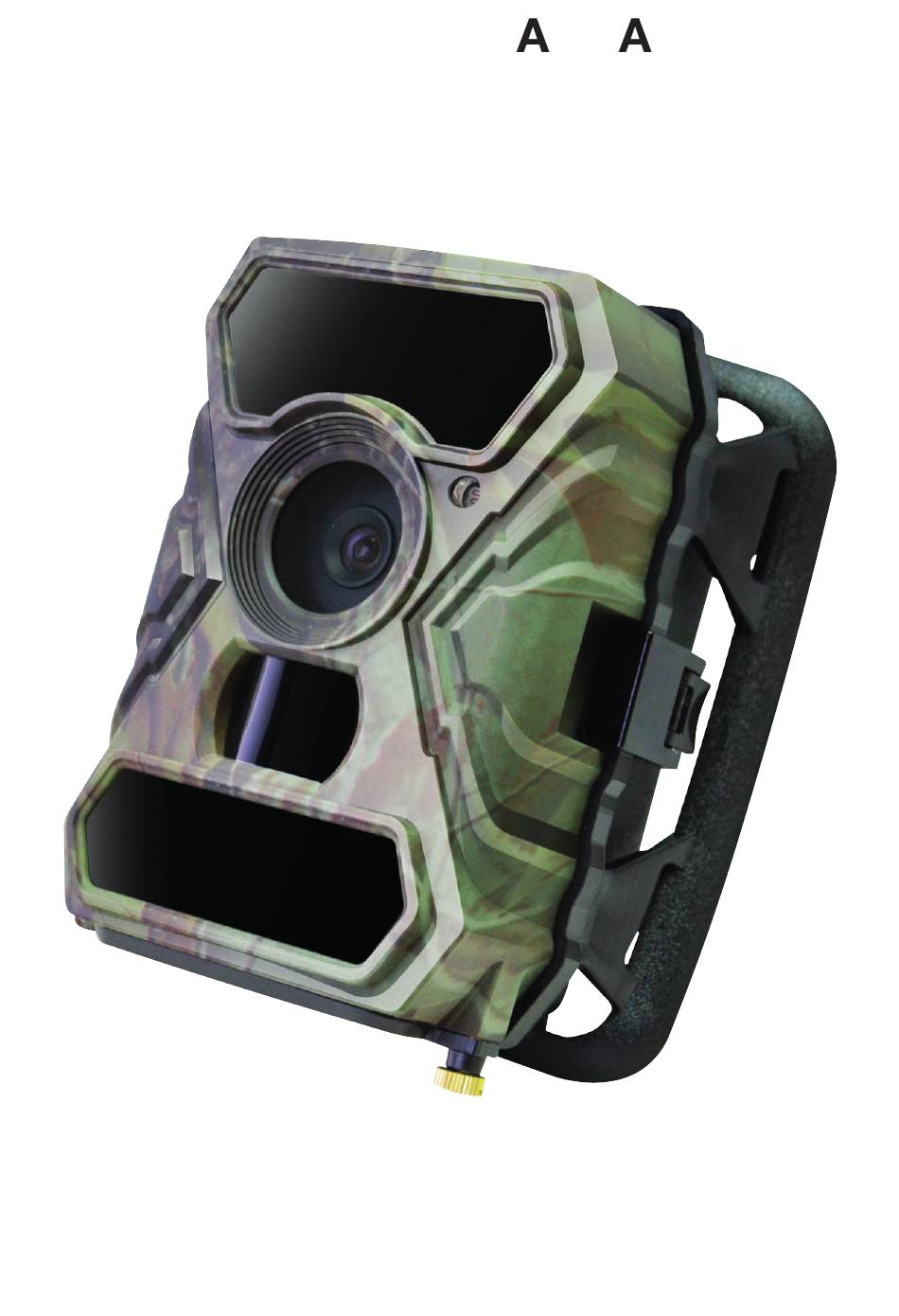

- Page 1 (GB) Users M NU L 12 MP X-trail HD 3.0C Trail Camera Item No. 31487...
-
Page 2: Table Of Contents
Contents 1. Introduction ....................- 19 - 1.1 Fully Functionality Introduction ..............- 19 - 1.2 Application ....................- 19 - 1.3 Power Supply ................... - 19 - 1.4 SD Card Selection..................- 20 - 1.5 USB Connection ..................- 21 - 1.6 Attention.................... -
Page 3: Introduction
1. Introduction Thank you for choosing one of our easy operation highly qualified products. You now may enjoy the excellences reflected on this series product. This 12MP FHD di- gital camera was totally R&D by our diligent and smart engineers based on feed- backs and requirements from customers globally. -
Page 4: Sd Card Selection
Test Condition: LCD screen off. Mode: Power On _PIR intelligent automatically monitoring lkaline Batteries Photos shot per day Working time Video clips shot per day Working time IR LEDs On Max.Range 100 pics 36 days Balanced 100 pics 31 days 10secs video clips 10 clips 37 days... -
Page 5: Usb Connection
1.5 USB Connection When camera is connected via USB cable; screen display MSDC“, press “Menu“ once, “MSDC“ turns to “PC Cam“, camera now can be used as a PC camera; press Menu“ again, camera exits PC camera mode. 1.6 ttention 1. -
Page 6: Whole View And Details Of Camera
2. Whole View and Details of Camera 2.1 Figure 1: Front View of Camera; 25 IR LEDs Indicator Light Light Sensor (day/night) 56 IR LEDs Lens in Total PIR Sensor 31 IR LEDs (Can be turned off) 2.2 Figure 2: Bottom View of Camera; Push slightly to open this cover Battery Slot DC in... - Page 7 2.3 Figure 3: Internal, Side and Back View of Camera Battery Slot...
-
Page 8: Function Keys & Other Details
2.4 Function Keys & Other Details . Switch Buttons IR LEDs Group Switch Power Switch GPRS Switch Camera/Video Switch Power Switch 1) Switch ON to enable camera to work; Note: indicator light flashes 5 times before camera starts to work on PIR (PIR uto Mode) 2) Switch ON, then press OK once to wake up camera LCD screen to enter TEST Mode;... -
Page 9: Quick Start
3. Quick Start 3.1 How to Start in Camera? Switch ON ”Power Switch” Note: Camera comes pre-programmed with factory default settings. So for test pur- pose, user only needs insert a SD card and batteries to start test by powering on. 3.2 How to Set the Functions? a Switch ON ”Power Switch”, Press ”OK”... -
Page 10: Operation List
4. Operation List 4.1 Video/Photo Playback Switch ON ”Power Switch”, Press ”OK” once to enter Test mode, press arrow but- ton ” ↑ ”, to enter Playback; press ” ” and ” ” for selection, ”OK” to play photo/video. → 1) Press button ”... - Page 11 Settings Programmable Options Cam ID Select ON , press OK , to set 4 digits/ alphabets for each camera. Such function can help user to identify photos are from where and which camera. Cam Mode Photo, PIC+VIDEO, Video 1) Switch ON Photo/Video Switch to Pic icon—Photographing mode, or PIC + Video mode;...
- Page 12 Settings Programmable Options Sensitivity High, Middle, Low Higher sensitivity is 1) more sensitive to movements by smaller subjects; 2) longer detection distance; 3) easier for sensor to detect difference between body heat and outdoor temperature; 4) easier to trigger camera to record. In high temperature environment, body heat of subjects and environment temperature is hard to tell by camera, suggest setting High.
- Page 13 Other Settings Programmable Options Language English... Date/Time Month : date : year; hour : minute : second Note: Pls adjust camera date/time to ensure some functions work as expected. Time Stamp Imprints of programmed camera ID, moon phase, temperature, date, and time on photo Beep Select ”OFF”...
-
Page 14: Auto Power Off
5. Specification Image Sensor 5 Mega Pixels Colors CMOS Effective Pixels 2560x1920 Day/Night Mode R range IR Setting Top: 25 LEDs, Foot: 31LEDs Memory SD Card (8MB – 32 GB) Operating keys Lens (Wide lens model) F=3.0; FOV=100° ; Auto IR-Cut-Remove (at night) Lens (Regular lens model) F=3.0;... -
Page 15: Trouble Shooting
Low battery lert 8.8V (8.8V: alert; 8.6V: power off) Interface TV out/USB/SD Card/DC Port MountinG Strap; Tripod Operating Temperature -30° C to 60° C Storage temperature -30 ° C to 70° C Operation Humidity 5%-90% Waterproof spec IP54 Dimensions 131.42 x98.72 x77.44mm Weight 404g Certification... -
Page 16: Photos Do Not Capture Subject Of Interest
3. Max Range offers better IR flash range. Given IR flash range values are based on Max Range setting; so please adjust Night Mode to Max Range for better night vision flash range; 4. High-quality 1.5V NiMH or Lithium rechargeable AA batteries can also offer much better IR flash range;...
