Ultrawarm UWS-TOUCH Manual

Touch screen thermostat

Advertisement

Quick Links

Our touchscreen thermostat is easy to install and program,
giving you complete control of your underfloor heating.

IMPORTANT NOTICE:

Ensure the mains supply is isolated before installation,
maintenance or testing.
Ensure you use a dedicated 30mA RCD.
Ensure final connections are carried out by a
qualified electrician.
Ensure all work conforms to the 17th Edition of the
Wiring Regulations.

TECHNICAL DATA

Voltage: 230V
Maximum load: 16A
Power Consumption: 2VA
Range: 5 o C – 90 o C
Floor Limit: 5 o C – 60 o C
INSTAL L ING:
Ensure the thermostat is mounted on the wall with air
flowing freely around it. DO NOT install in direct
sunlight.
Install the thermostat around 1.5m above the ground.

FLOOR SENSOR:

conduit.
2/ Recess the conduit in a groove cut in the insulation
cable loops. DO NOT set it directly below a cable.
3/ Tape the end of the conduit to protect the sensor.
from adhesive ingress.
Approved in accordance with:
EN60730-2-9:2002+A2:2005
EN 61000-3-2:2006
EN 61326:1997+A1:1998+A2:2001
Read all the instructions before commencing installation.
Before installation of the finished flooring, test the resistance of the heating element to
ensure it is not damaged. PLpease test the sensor for resistance before connecting
should give a reading or between 7K and 42K Ohms. If it does not the sensor is
faulty and should be replaced.
PRODUCT MAY VARY FROM IMAGES SHOWN. PLEASE RETAIN ALL MANUALS FOR FUTURE REFERENCE.
DISPOSAL OF OBSOLETE APPLIANCES
DISPOSAL OF OBSOLETE APPLIANCES
DO NOT dispose of this appliance
DO NOT dispose of this appliance
in your general waste. Your local
in your general waste. Your local
authority or retailer will be able to
authority or retailer will be able to
provide further advice
provide further advice

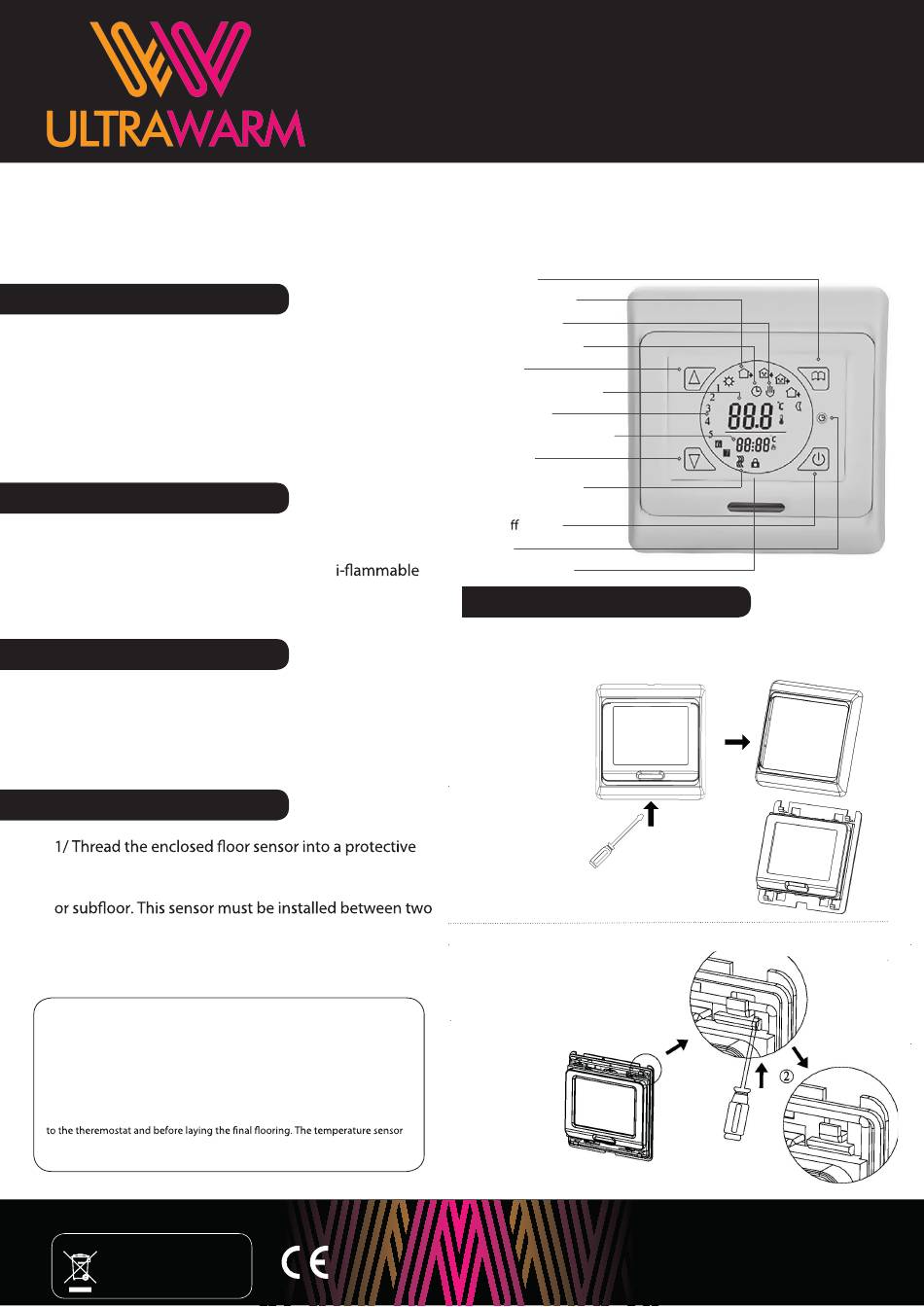

TOUCH SCREEN THERMOSTAT
Accuracy: ±1 o C
Protective Index: IP20
Material: Ant
Dimensions: 86mm x 98mm
x 43mm
Menu key
Period from 1 to 6
Plus key
Measured temperature
Day Number
Time/temperature display
Minus Key
Heating Indicator
On/O Switch
Clock
Lock Indicator
PC

MOUNTING:

1. Release the front cover by
inserting a screw driver into
the bottom
2. Unclip the back panel
www.ultrawarm.com
www.ultrawarm.com
