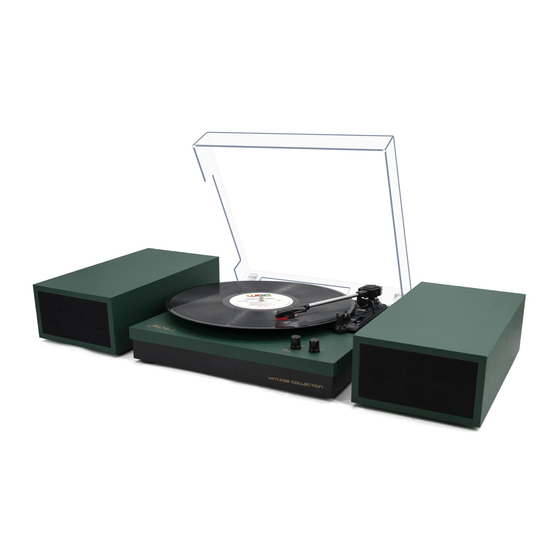

- Page 1 Vintage Turntable Model: LPSC-017 User Manual...
- Page 2 BEFORE USE 1. Choose a safe location and avoid placing the unit in direct sunlight or near any heat source. 2. Avoid environments subject to vibration, excessive dust, cold or moisture. 3. Due to the risk of electrical shock, do not open the cabinet. Should a foreign object accidentally find its way into the interior of the unit, contact your local dealer.
- Page 3 1. Speaker 2. Turntable Platter 3. Slip Mat 4. Lift Lever 5. Turntable Arm Lock 6. Auto Stop Control Switch 7. Speed Selection Switch 8. Turntable Shaft 9. Turntable Arm 10. Volume Knob 11. Phono Stylus Cartridge 12. Removable Dust Cover 13.
- Page 4 LISTENING TO A RECORD 1. Raise the dust cover 2. Press the Power ON/OFF Button. 3. Place a record on the turntable platter and set the player speed to match the record speed. NOTE: when playing a single (a 45 rpm record) and/or records with large centre holes, use the 45 rpm adapter.
- Page 5 1. Hold the tip of the needle headshell and insert it by pressing in the direction illustrated by”B”. 2. Push the needle headshell upwards in the direction illustrated by “C” until the needle locks into the tip position. RECORD YOUR VINYL TO YOUR WINDOWS PC 1.
- Page 6 4. Playback Control Toolbar Audacity will display a control toolbar for you to edit and manage your recordings. 5. Playing Your Record Play the record you want to record by following the procedure described in the section “LISTENING TO A RECORD” 6.
- Page 7 so that you select the RECORD button at the beginning of your track. Start playback on the USB turntable. You will see the waveform of the audio on the screen as it is recording. You will hear the audio coming from the output of your computers soundcard.
- Page 8 Audio Levels Select your entire recording by selecting “Edit,” then “Select…” then click “All.” Select the “Effect” menu and choose the desired effect. There are various types of effects which are described further on Audacity’s website. Selecting “Normalize” should be used to have Audacity auto-correct volume on the recording.
- Page 9 Noise Reduction Drag your cursor over a portion of the audio track which contains unwanted noise. We recommend using the beginning or end of a track where there is no music and only noise. - Select “Effect” and then “Noise Removal” from the drop down menu to bring up the “Noise Removal Window”...
- Page 10 - Click “Get Noise Profile” and the window will close automatically. - Select the entire track of audio you wish to remove noise from. - Adjust the amount of audio that you would like to filter by moving the slider in the “Noise Removal”...
- Page 11 The Editing Toolbar The Tools Toolbar Before editing, you must make a selection of the recording you would like to cut or copy. This will trim any music from the previous track, or any silence on the record between tracks. To select the part you wish to cut, copy or paste, use the selection tool.
- Page 12 To extend or contract your selection, hold down the SHIFT button and click on the area you wish your selection to extend or contract to. If you click at a spot that is on the right hand side from the middle of the current selection, you will set the right hand boundary of your new selection.
- Page 13 4. If you must use a needle cleaning fluid, use very sparingly. 5. Gently wipe the dust cover and turntable housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable and dust cover. 6.
- Page 14 Vinyl Record Cleaning Brush---cleaning the dust on the record effectively Felt Mat—it can better the vinyl player’s performance.
Need help?
Do you have a question about the LPSC-017 and is the answer not in the manual?
Questions and answers

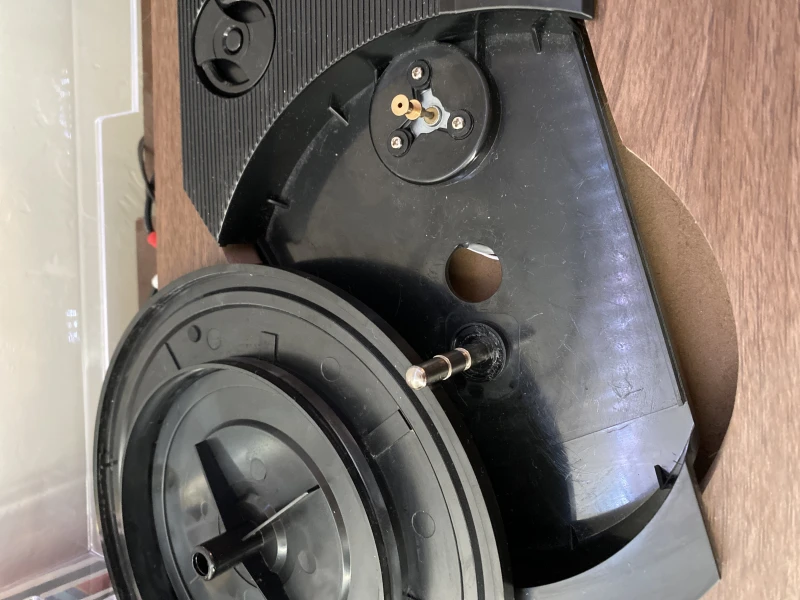

My record player stopped spinning. I was out of town for a while and wasn’t using it. When I came back to tried and play a record, the turn table wasn’t spinning, but the gold thing on the inside was. I tried troubleshooting, but nothing is working. I’m not sure what to do!
The context does not provide specific troubleshooting steps for when the LP&No.1 record player model LPSC-017 has stopped spinning. However, based on operation instructions, you can check the following:
1. Ensure the Power ON/OFF Button is pressed to turn the unit on.
2. Confirm the record is placed correctly on the turntable platter.
3. Make sure the Speed Selection Switch is set correctly.
4. Check if the tone arm is moved over the record, as the platter begins to rotate only when the arm is moved toward it (if Auto Stop Control Switch is ON).
5. Verify that the Auto Stop Control Switch is functioning as expected.
If these steps do not resolve the issue, further troubleshooting details are not provided.
