Summary of Contents for ilco Triax A/T

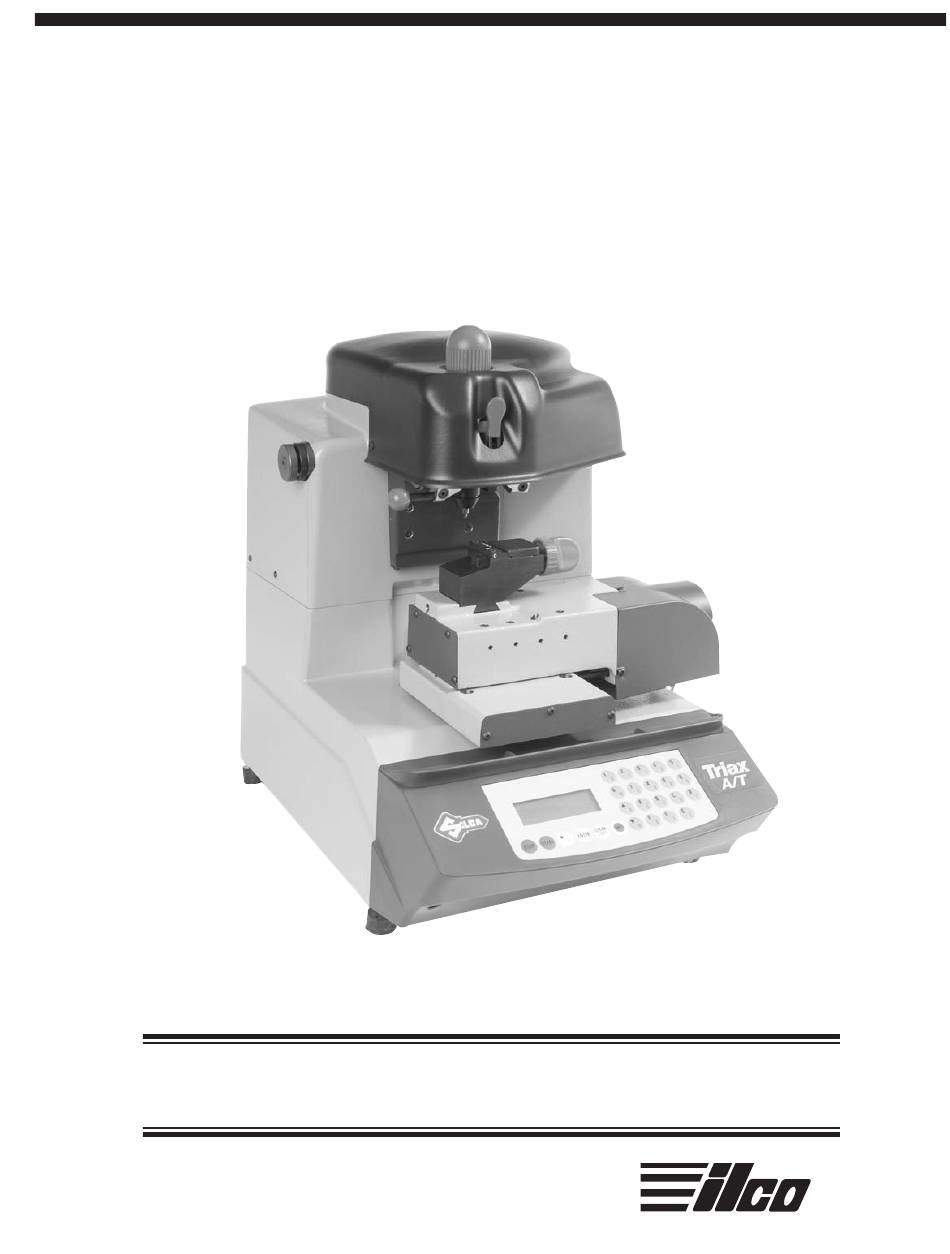

- Page 1 Triax A/T UICK TART UIDE ™...
- Page 2 1 Triax A/T internal card list 1 Triax A/T Quick Start Guide 1 power supply cable 1 tool kit *The warranty card should be filled out and returned to Kaba Ilco as soon as possible. INCORRECT! CORRECT! B. When the Triax A/T has been unpacked, place it directly on its workbench;...
- Page 3 E. Attach the power cord to the Triax A/T and plug it into an 110V/AC circuit. The on/off main rocker switch is located on the back left hand side of the machine.
- Page 4 C. In order to successfully cut keys on the Triax A/T machine, it is recommended the Triax A/T be calibrated before attempting to advance with any other functions. 3. Calibration of R1 Clamp* NOTE: R1 Jaw is pre-calibrated prior to shipment.
- Page 5 To save the data, press the ENTER button. If the STOP button is pressed, the new settings will not be saved, and the previous settings will remain valid. L. The settings will be accepted by the Triax A/T if the tolerances remain with- in a range of +/-.0012 thousandths of an inch.
- Page 6 G. After the calibration is complete, raise the TRACER TOWER by the red ball handle to the idle position (up). H. Press the STOP button twice to return to the Triax A/T main menu. 5. Cutting Keys By Duplication (Decode) A.
- Page 7 S S T T A A R R T T viewed, press the START button. The key will then be cut. G. The screen will display the message “CUT- TING IN PROGRESS”. The screen will also Triax A/T Quick Start Guide...
- Page 8 Clamp: R1 Pos: 3 operation by pressing STOP button. Cutter: W101 (start) J. To return to the Triax A/T’s main menu, push the STOP button until the menu screen appears. S S T T A A R R T T...
- Page 9 • To search by SSN (Silca Serial Number) Lexus (Toyota) (2) use the Triax A/T) internal card list to TOY40P (4T-8W) select the appropriate card number. Use TOY48P (4T-5W) the number and letter buttons, to type this card number onto the appropriate line, then press ENTER.
- Page 10 ENTER button Axis: 1 or to end the operation by pressing the STOP button. Cutting in Progress J. To return to the Triax A/T main menu, push Copy: 1 of 1 the STOP button until the menu screen Side: 0°...
- Page 11 ENTER but- ton or to end the operation by pressing the STOP button. S S T T A A R R T T Triax A/T Quick Start Guide...
- Page 12 Triax A/T owner’s manual. We strongly advise you to keep both of these doc- uments safe and readily available. They will prove very useful in the future. Should you require addition assistance or support, please feel free to contact the Ilco Technical Assistance Dept.
