Summary of Contents for Budget I.I.D AAS 2.0

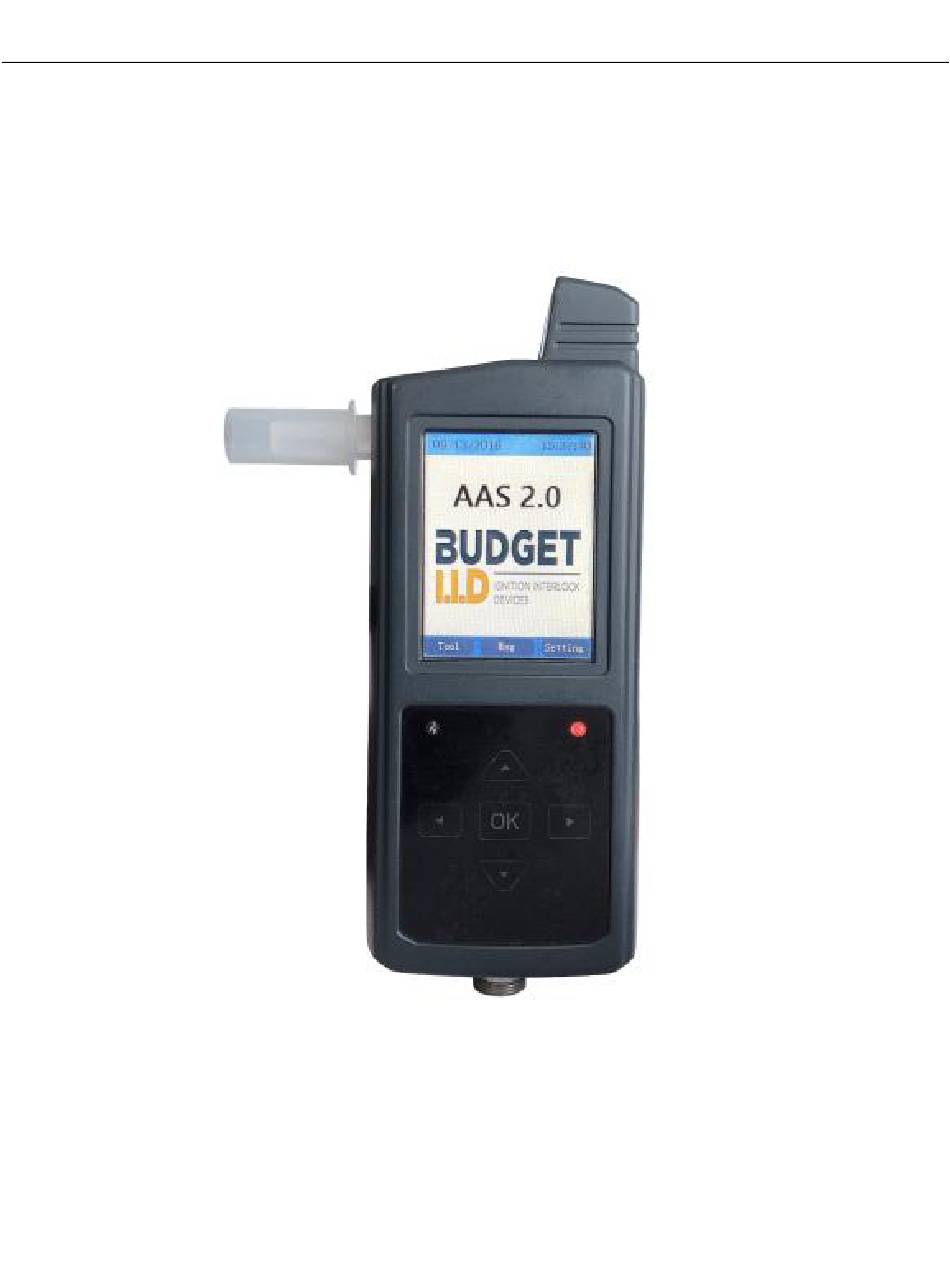

- Page 1 AAS 2.0 interlock user manual Ver:1.0 Breath Alcohol Ignition Interlock AAS 2.0 User Manual All rights reserved...
- Page 2 The AAS 2.0 is a highly advanced breath alcohol ignition interlock device utilizing the latest technology providing real time reporting and GPS location services. Once the AAS 2.0 is installed in a vehicle, the driver must pass a breath alcohol test before starting the engine. The car can only be started when the driver has a lower BAC than the set alcohol amount in the device.
-
Page 3: Product Feature
AAS 2.0 interlock user manual Ver:1.0 2．Product Feature ♦ Sensor: Fuel cell ♦ 5 Button Interface ♦ Operation Temperature: -40 to+85 Degrees ♦ RTOS System, Simple and Stable ♦ Multiple Languages ♦ 240X320 TFT Screen ♦ Storage for More Than 20,000 records including test results, test time, and date events ♦... -
Page 4: Specifications
AAS 2.0 interlock user manual Ver:1.0 4．Specifications Item Specification Measurement Principle Electrochemical sensor Working temperature -40ºC ~+85 ºC Operation pressure 600~1100hPa ≤20s（20 ºC） Warm-up time ≤2.5s （-40 ºC） 240X320 TFT dot matrix color screen with 260 thousand Display colors, clear and intuitive... - Page 5 AAS 2.0 interlock user manual Ver:1.0 7. Interlock Function Description Working procedure 7.1.1 Initial testing process If the door of the vehicle is unlocked/opened or the car ignition key is turned to the on position, the initial testing process is started automatically. The tester will at first need to conduct the initial testing and violation record query.
- Page 6 AAS 2.0 interlock user manual Ver:1.0 7.2 Alcohol Test The alcohol tests include the Initial test (before starting car) and the rolling retests (while driving). When an alcohol test is required, the handset will instruct the user that a blow is required through a series of beeps and a notification on the display screen.
- Page 7 AAS 2.0 interlock user manual Ver:1.0 After displaying the result, and if the initial test is passed, the handset will send a message to the control box to start the engine. After starting of the engine, the handset screen will notify the driver: The engine started, please drive carefully! As shown in figure 7-5. If initial test failed, engine will not start, and after a period of waiting time, the second initial test will be generated.
- Page 8 AAS 2.0 interlock user manual Ver:1.0 After the engine starts, and the key is turned to the OFF position, the control box will wait and constantly detect the key ignition position for a period of time based on the settings. If the key has not been turned back to the ON position in the set time frame, the vehicle will enter lock state and control box will enter sleep mode to save power.
- Page 9 AAS 2.0 interlock user manual Ver:1.0 8.2 Sample free start The sample free start function is only for use for emergency cases. A password is required. As shown in Figure 8-2, select “Unlock without test to enter the sample free start function. Press yes when you see the prompt “You’re using the override (emergency bypass) function, it will...
- Page 10 AAS 2.0 interlock user manual Ver:1.0 8.3 Manual test If the device is in lockout mode, a password can be entered to conduct a manual test to start the car. Select “Manual test” as shown in Figure 8-2, press yes when you see the prompt “Enter the password provided by administrator to start a test, continue?”...
-
Page 11: Handset Setting
AAS 2.0 interlock user manual Ver:1.0 9.Handset setting As shown in Figure 8-1, press the right button for the settings of the handset. Back light can be set and system information can be checked. As shown in Figure 9-2, press up and down button to adjust the brightness. Press Default to return to original settings. -
Page 12: Safety And Precautions
AAS 2.0 interlock user manual Ver:1.0 10. Safety and Precautions Before using the device, please be sure to read the user manual in order to insure proper use. Make sure the handset is connected to the control box using the coil cable.
