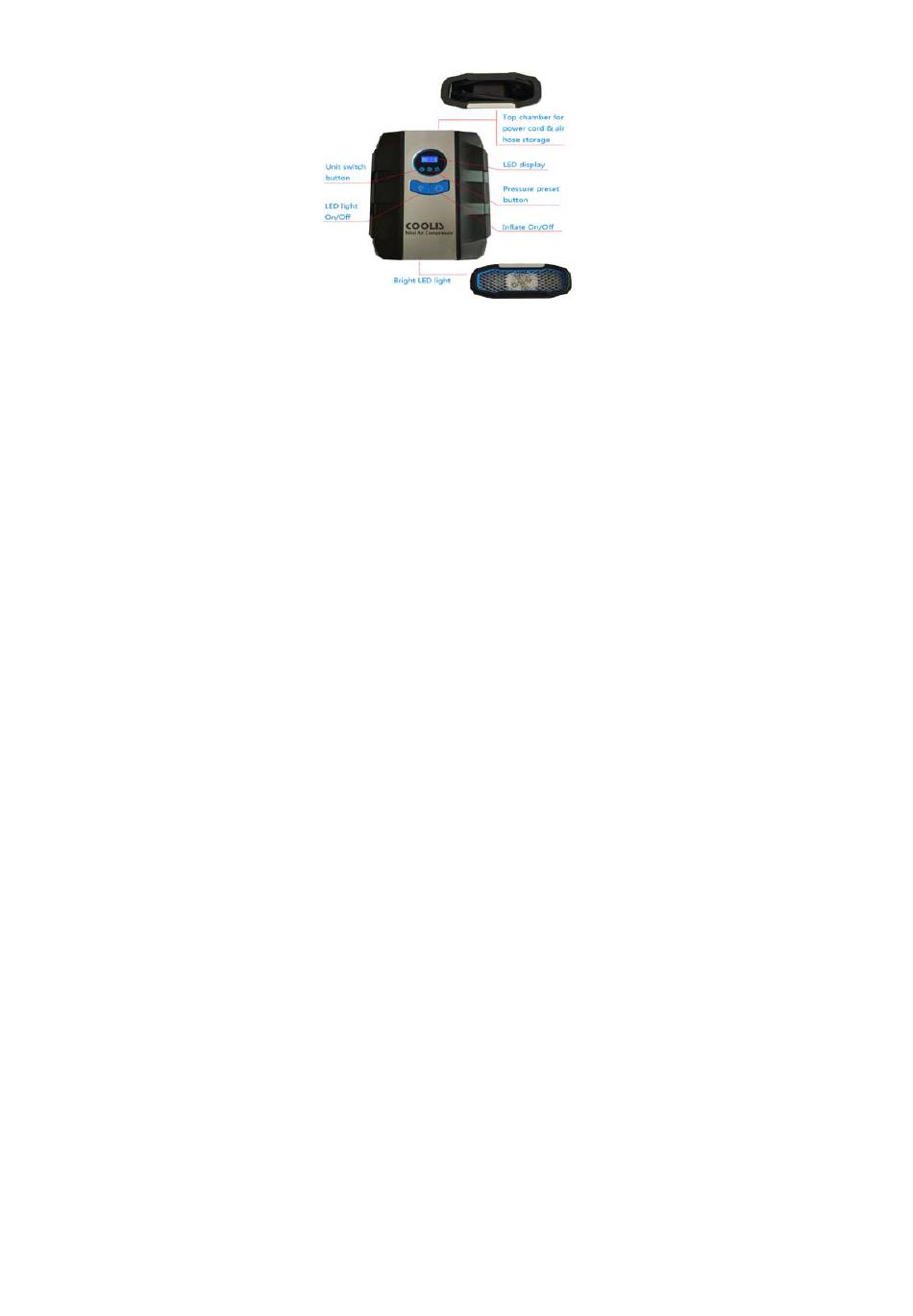

COOLIS Air Compressor
User manual
Most important note:
★This unit limited to inflation for 12V car.
★Please cool down 12minutes after a continuous 12minutes
working.
★Engine must be running during use to avoid to use up your car
battery.
★Please only turn on the pump switch after it's ready, otherwise,
the pump will not working.
Advertisement
Table of Contents
Summary of Contents for Coolis YY-3601
- Page 1 COOLIS Air Compressor User manual Most important note: ★This unit limited to inflation for 12V car. ★Please cool down 12minutes after a continuous 12minutes working. ★Engine must be running during use to avoid to use up your car battery. ★Please only turn on the pump switch after it’s ready, otherwise, the pump will not working. ...
- Page 2 Safety and maintenance •Do not allow children to use this unit. •Correct tire pressure provides greater safety, longer tire life and Better fuel economy, tire pressure readings should be taken on cold tires, please check your vehicle handbook for appropriate tire pressure recommended. •Do not use the compressor in explosive atmospheres, in the presence of flammable liquids, gases or dust. •In case of any electrical or mechanical malfunction, please immediately switch off the compressor and unplug it. How to inflate your tire 1,Plug the power cord to your car cigarette lighter. 2,The backlit display will light up and show “0.0” after initialization, then you can press the key “R” to change the unit among PSI. BAR. KPA. KGF/cm2. 3,Press the key “+”, the display will show the last preset pressure value and flashing, then you press “+” / “‐“ to increase / reduce the value to your wanted value.(you can set 1 PSI higher than your wanted pressure as it will have some air leakage while you remove the air hose nozzle), the display will show “0.0” again after you finished your setting. 4,Connect the air hose nozzle to your tire nozzle, and fold the spanner to fix the air hose nozzle. 5, Press the “ON” switch, the compressor start to work and the display will show the instant pressure. 6,Inflator will be stopped automatically at the set pressure, then please switch off the unit, disconnect it from the tire nozzle, and place the dust cap back on. 2 ...
- Page 3 ★★★ Please only turn on the pump after it’s ready, Otherwise, the pump will not working. Product specifications Power supply 12V car cigarette lighter Max pressure 150PSI Flow speed 27L/Min Inflate speed For a mid‐size tire, <3.0 Min. from 0 to 30PSI, <3.5 Min. from 0 to 35PSI Work temperature ‐10℃~60℃ Pressure gauge display PSI.KPA.BAR.KGF/CM2 Weight 890g Size(mm) 215*170*70 CE,FCC Compliance Yes 3 ...
- Page 4 Trouble shooting 1, Died, the pump not working and the LED display not light after connect to a car cigarette lighter. It’s should be the fuse burned, please exchange a new fuse according to below sketch map. Warranty This product is provided with a warranty service for 6~12 months from the date of purchase (you can refer to Amazon listing for the exact warranty period). Warranty only coverage the quality problem occur in the normal use. If the quality issue caused by the wrong operation or disassemble, no warranty provided. Contact Us You can contact us by sending e‐mail to ocean@cooliselectronics.com. 4 ...
