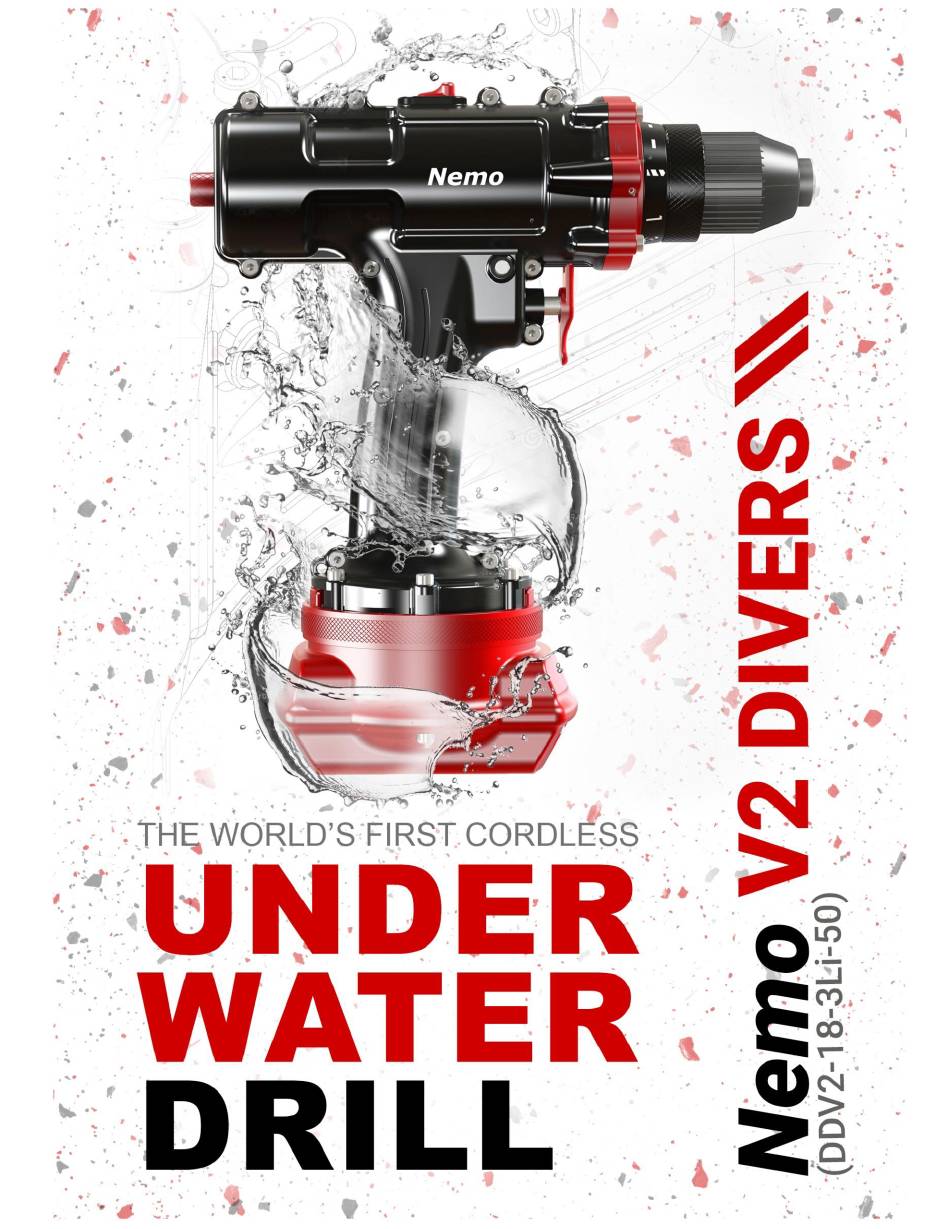

Nemo V2 Divers Manual

Under water drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2 Divers and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nemo V2 Divers

  • Page 2 Nemo Submersible Tools Li-ion Cordless Drill Driver DDV2-18-3Li-50...

  • Page 3: Product Features

    Product Features The numbers of the product’s features below refer to the illustration of the machine on the inside cover. 1. Corrosion-resistant keyless chuck 2. Torque pre-setting ring 3. Gear selector 4. LED light 5. Drill handle 6. Battery locking ring 7.

  • Page 4: Functional Description And Specifications

    5. This Nemo drill (DDV2-18-3Li-50) may be used in salt water. Please rinse the drill in fresh water immediately after use in salt water to help ensure a long life for your drill’s paint job.

  • Page 5: General Power Tool Safety Warnings

    General Power Tool Safety Warnings SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool” in all of the warnings refers to your battery-operated (cordless) Nemo drill. 1) Work-area safety a) All work carried out should be done in accordance with the local, state, and government occupational safety and health guidelines.
  • Page 6 Work only on secured, stable items. Do not hold in one’s hand any item to be drilled or worked on by the Nemo drill. Secure the workpiece, clamped with clamping devices or in a vice, to ensure safety. d) Always wait until the machine has come to complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

  • Page 7: Battery Charging

    ASSEMBLY 1. Battery charging Use only the battery charger provided with the drill. Only this battery charger is matched to the lithium-ion battery of your power tool. Please use the charger in a dry environment. The charger is not waterproof. Note: The battery is supplied partially charged.

  • Page 8: Changing The Tool

    Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transportation and storage, set the rotational direction trigger to the center position. Unintentional activation of the On/Off switch can lead to injuries. 2. Changing the tool The drill spindle is locked when the On/Off switch (9) is not pressed.

  • Page 9: Operation

    It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. OPERATION 1. Inserting the battery Use only the lithium-ion battery from the original factory with the voltage listed on the nameplate of your power tool.

  • Page 10: Adjusting The Speed

    4. Gear speed selection The gear speed selector (3) can be activated at a standstill. Two speed ranges can be pre-selected with the gear speed selector (3). If the gear speed selector (3) cannot be pushed through to stop, lightly turn the drill chuck with the drill. This is a normal occurrence.
  • Page 11 ADDING AIR PRESSURE TO YOUR DRILL FOR UNDERWATER USE This Nemo drill may be used in any wet conditions and may be submerged and used underwater at depths of up to 50m. For ALL underwater use, it should be pressurized according to the instructions and table below.

  • Page 12: Maintenance And Service

    Belt clip With the belt clip (5), the machine can be attached to a belt. The user has both hands free and the machine is always on hand. Recommendations for optimal handling of the battery Store the battery only within a temperature range of 0˚C - 45˚C (32˚ F - 113˚ F). Please see notes below on the proper disposal of the battery.

  • Page 13: Technical Data

    FUNCTIONAL DESCRIPTION OF CHARGER Product features: The numbering of the product features refers to the illustration of the battery charger below. 1. Battery 2. Green/Red battery charging indicator 3. CHOGORI Connector 4. Battery socket Technical data: MODEL NO. DSS-220200 Charging time approx. 55 minutes Charging output voltage Charging input voltage...

  • Page 14: Meaning Of Indicator Lights

    Connecting the battery to the charger In order to connect the CHOGORI connector to the battery, press it into the socket located on its upper shell. Notice that there is an overlap between the connector and the battery socket, and there is only one way to insert the CHOGORI connector into the battery socket.
  • Page 15 MAINTENANCE AND SERVICE OF CHARGER Maintenance and cleaning If the battery charger should fail despite the care taken in manufacturing and testing procedures, repairs should be carried out by an authorized after-sales service agent. TROUBLE AND SOLUTIONS FOR CHARGER Problem Possible reason Solution No charging procedure...
  • Page 16 Nemo Power Tools Ltd www.nemopowertools.com...

This manual is also suitable for:

Ddv2-18-3li-50
