LIFEGARD ALL-IN-ONE FILTER SYSTEM
INSTRUCTIONS

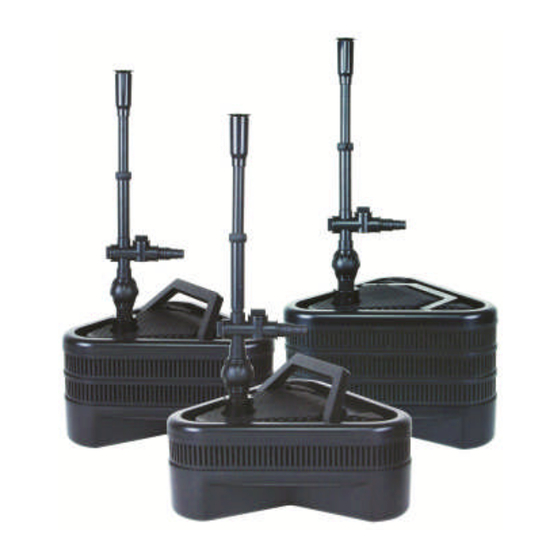

R442001 All-In-One Single Up To 1000 Gallons
R442002 All-In-One Double Up To 1500 Gallons
R442003 All-In-One Triple Up To 2000 Gallons
LIFEGARD UNO, DUO, TRIO FILTER KITS
INSTRUCTIONS
Page 7 - 12
R440021-UNO Filter Kit Up To 1000 Gallons
R440022-DUO Filter Kit For Up To 1500 Gallons
R440023-TRIO Filter Kit For Up To 2000 Gallons
LIFEGARD UNO, DUO, TRIO FILTER
KITS INSTRUCTIONS
Page 12 - 17
R440011-UNO Filter For Up To 1000 Gallons
R440012-DUO Filter For Up To 1500 Gallons
R440013-TRIO Filter For Up To 2000 Gallons
Page 2 - 6
1
