ZÄHL RACK 500 DUAL
Zähl 500 series desktop case
with external PSU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACK 500 DUAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Zahl RACK 500 DUAL

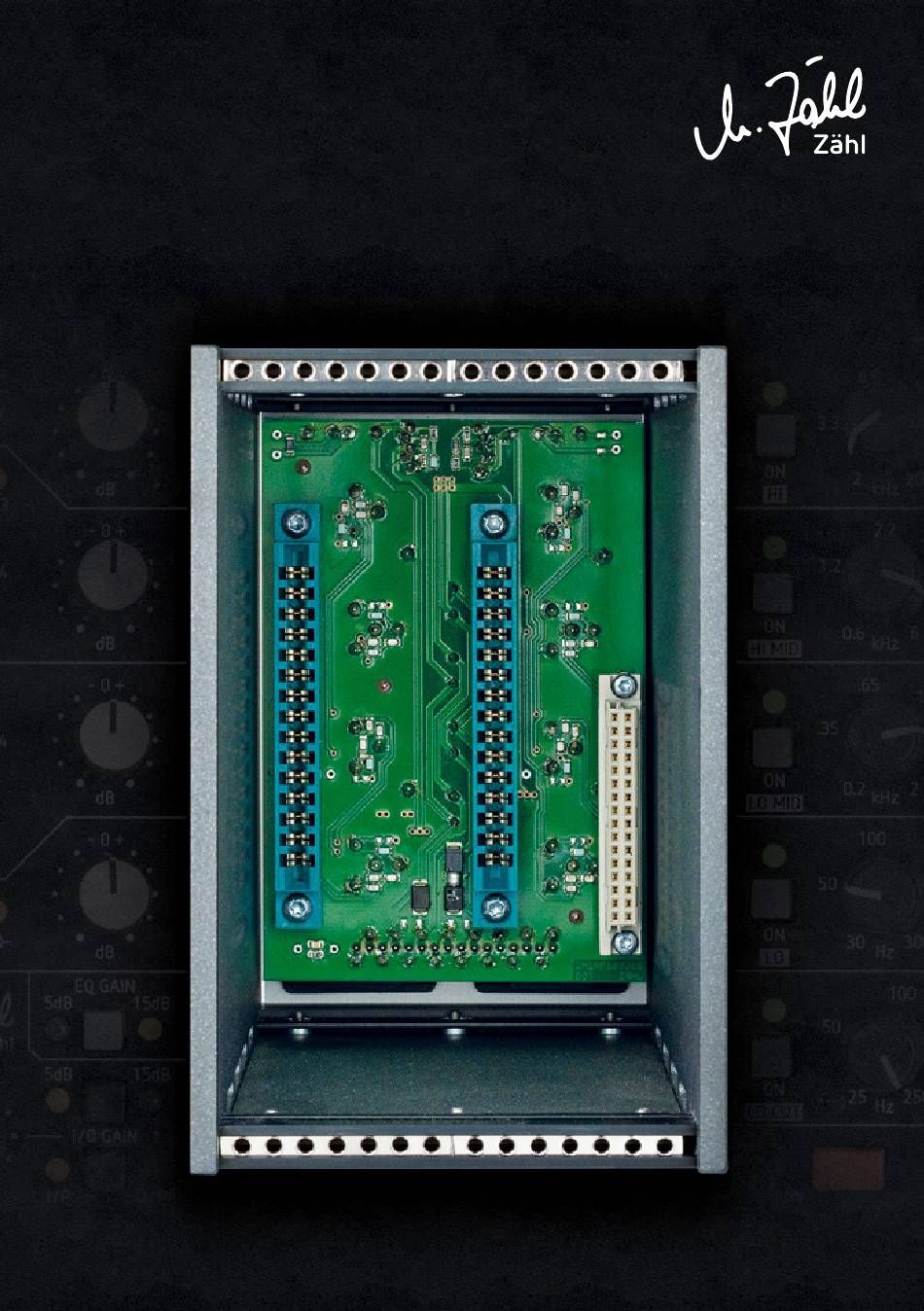

  • Page 1 ZÄHL RACK 500 DUAL Zähl 500 series desktop case with external PSU...

  • Page 2: Power Supply

    ZÄHL Rack 500 Dual 500 series desktop case w/ external PSU FEATURES high quality rack providing the perfect technical environment for ZÄHL EQ1 and IM1 or other high grade 500 modules fully compatible to the API 500 standard special 8-XLR rear panel as an option, providing all audio I/Os needed for the Zähl IM1 INSERT MASTER.

  • Page 3: Scope Of Delivery

    48V on the 4 XLR standard rear panel otherwise equipment might be damaged. Warning: Always disconnect power lead before performing any changes of the set-up. Otherwise equipment might be damaged. Rack 500 Dual must not be operated at ambient temperatures above 35°C and below 5°C...

  • Page 4: Functional Description

    FUNCTIONAL DESCRIPTION Zähl Rack 500 Dual was primarily designed as a high quality rack for ZÄHL 500 series units, but it is also a perfect choice to operate high grade 500 series units from other manufacturers. It consists of a case which accepts two one-slot or one two-slot API 500 series unit(s) and a remote power supply.
  • Page 5 TYPICAL APPLICATIONS AND BENEFITS Rack 500 Dual is ideally suited as a desktop unit. Due to its light weight and small size the user can even take it on his lap while operating it - thus staying relaxed in the “sweet spot” instead of bending towards equipment mounted in a rack.
  • Page 6 DATA Mains Voltage 230V +/-8% 50Hz...60Hz or 115V +/-8% 50-60Hz internally set-up, labelled above the mains connector of the PSU Mains Power 30W max. DC supply +/-16V, 130mA per slot minimum. Higher current may be drawn for limited time. Connector Pin-Out Card Edge 15 pin 0.156“...
  • Page 7 NOTES, SAFETY INSTRUCTIONS, WARRANTY to operate the equip-ment. Have the equipment 1. The equipment must only be used for the purpose checked at your dealer’s workshop or a person described in this manual. who is qualified to do such checks. 2.
