Summary of Contents for Line Seiki G48 Series

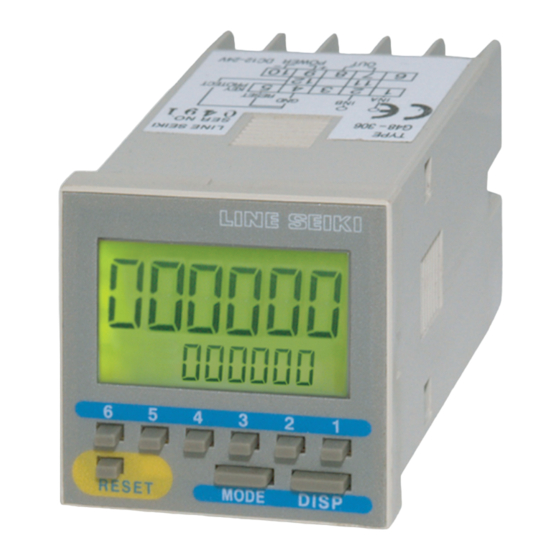

- Page 1 LINE SEIKI DIN 48 x 48 PRESET COUNTER EASY EDITING (INDIVIDUAL DIGIT KEYS) LCD DISPLAY WITH BACKLIGHT PRESCALE KEY LOCK FREE WRITE...
- Page 2 MODELS Model Digit Preset Power source Input Body length G48-305 AC100~240V 100 mm 1 level preset Contact / Open collector DC12~24V G48-306 64 mm Voltage input (SELECTABLE) G48-315 2 level preset 100 mm AC100~240V G48-325 1 level preset + prewarn FRONT PANEL FEATURES Count display Output indicator...
- Page 3 BASIC OPERATION The G48 has 2 operation modes. Settings such as selection of input modes and count modes are done in the Program Mode. Counting and Preset Values setting are done in the Run Mode. Use the key to enter the Program Mode and the key to return to the Run Mode.
- Page 4 PROGRAM MODE OPERATION Press MODE to select program menu items. Press individual digit setting keys to change setting values. Program Item Program Item Display Setting Values Setting Key Default Value Key 1 will select IN Hz Count Speed (Hz) the desired value MODE Key 1 will select ( contact /...
- Page 5 WIRING AND REAR TERMINALS G48-305 G48-315 G48-325 G48-306 MODELS 1 level 2 levels 1 level + prewarn 1 level PRESET LEVELS IN B IN B IN B IN B IN A RESET IN A RESET IN A RESET IN A RESET 1 2 3 4 5 1 2 3 4 5...
- Page 6 OPERATION MODE AND OUTPUT MODE One of the following Operation mode and output mode can be selected. Operation Output Operation Example Type Mode Mode OUT1 : one shot or HOLD1 OUT1 : one shot or HOLD1 OUT1 : HOLD2 OUT2 : one shot OUT2 : HOLD OUT2 : one shot In case of 1 level preset...
- Page 7 Operation Output Type Operation Example Mode Mode OUT1 : one shot or HOLD1 OUT1 : HOLD2 Mode F OUT2 : one shot OUT2 : one shot Reset In case of 1 level preset Standard Output models operation SET2 auto-reset at is the same as OUT 2 falling edge SET1...
- Page 8 45 Panel Cut Size : direction of the clip. * Specifications Subject to Change Without Prior Notice All Rights Reserved, Copyright © 2012 Line Seiki Co., Ltd. 2012.02.13...
Need help?
Do you have a question about the G48 Series and is the answer not in the manual?
Questions and answers
I wont to set a G48 305N timer to close terminals 7 & 8 then to open when a preset value is reached.
The provided context does not contain specific instructions on setting the Line Seiki G48-305N timer to close terminals 7 and 8 and then open when a preset value is reached. However, based on general functionality of preset counters, follow these steps:
1. Power On: Ensure the device is powered using the appropriate voltage (AC 100-240V or DC 12-24V, depending on the model).
2. Enter Programming Mode: Use the preset/programming setting display to access configuration settings.
3. Set Preset Value: Input the desired preset value using the individual digit setting keys.
4. Configure Output Mode: Set the output mode to ensure terminals 7 and 8 close when counting starts and open upon reaching the preset value.
5. Confirm Settings: Save the configuration and reset the counter if needed.
6. Test Operation: Run a test cycle to verify that terminals 7 and 8 behave as expected.
For precise wiring and programming instructions, refer to the manual for the G48-305N model.
This answer is automatically generated
