Current MP410 Manual

CURRENT PRODUCTS
HP LEVEL
1
0 10
10 distribution headphone
Super high-quality sound
High power
XLR through out is with it
19 inches 1U size

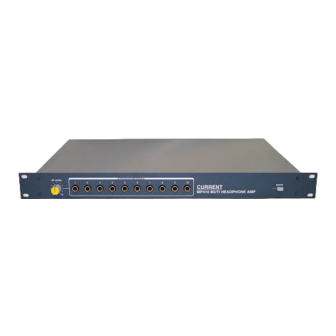

MP410 is the multi headphones amp which is available in 10
simultaneously. It provides powerful, clear sound by using
circuit configuration identical to SC8016A of the CUE system
for recording studios where there is the reputation for
sound quality in the power amp section and parts.
"Line input"
The input of MP410 provides in the throughout with XLR connecter,
and the way of using inserting on the way of a line is possible.
"Monitor"
There are 10 headphone jacks to front panel and can monitor 10
people simultaneously. A headphone level is only a master level.
"Others"
Please refer about the manufacturing of the type that level control is
possible individually.
2-26-11 AKATSUTSUMI, SETAGAYA-KU, TOKYO, 156-0044 JAPAN TEL:81-3-3321-9559 FAX:81-3-5376-2735
M U LT I H E A D P H O N E A M P
HEADPHONES MONITOR
2 3 4 5 6 7
The specifications are subject to change without notice.
(c)CURRENT,INC. www.crnt.co.jp
model:MP410
8 9 10
CURRENT
MP410 MULTI HEADPHONE AMP
S P E C I F I C A T I O N S
AUDIO INPUTS: BALANCED, 12kΩ
INPUTS CONNECTOR: XLR3-F
MAXIMUM INPUT LEVEL: +24dBu
CONTROL: HEADPHONES LEVEL
HEADPHONES OUTPUT: 10
FREQUENCY RESPONSE: 20~20kHz, ±0.1dB
THD: < 0.01%
NOISE: < -90dBu
MAXIMUM OUTPUT: 2.5W at 50Ω
CONTROL: HP(MASTER) ,EXT MIX 1,2 LEVEL
MAINS: 100VAC 50/60Hz MAX 25W
DIMENSIONS: 482W x 44H x 303D 4kg
Headphones amp
accessory :
1
MAINS
MP410 ¥248,000
AC cable
