Summary of Contents for Digiplan Portable Folding Chair

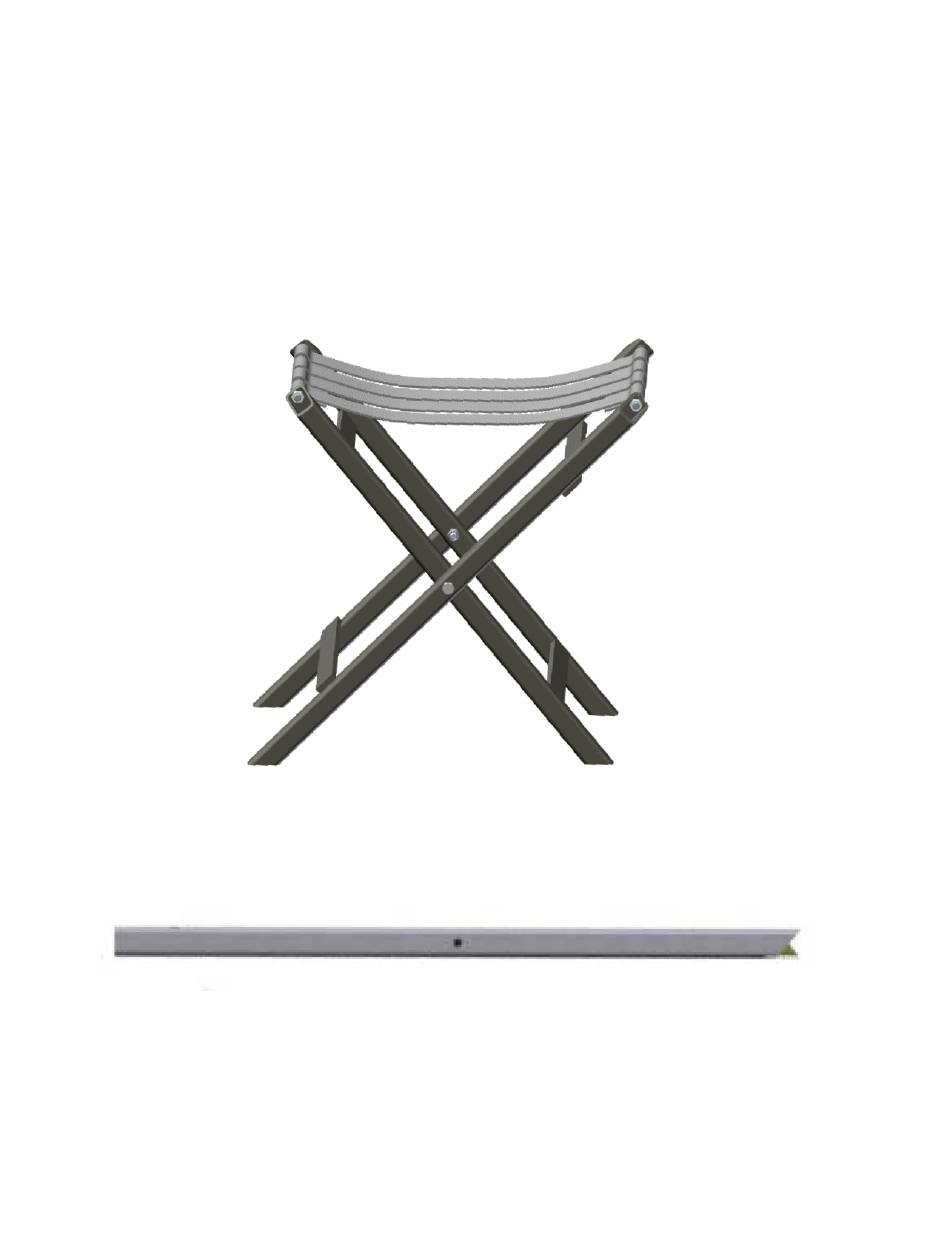

- Page 1 ® ® ® ® DIGIPLAN presents … Portable Folding Chair Unfolded View Folded Side View 2001/07/08 rev 1.00...
- Page 2 If you have questions or concerns when building this chair, please send us a note at prod.support@treestandplans.ca and expect a reply within 24 hours. Good luck and please visit us again at www.treestandplans.ca www.digiplan.ca for other products we offer. Sincerely Quinn Zander President...
- Page 3 Step 1 – Required Tools Time and effort spent building this stand will depend greatly on the tools available to you. At a minimum, you will need the following: • Hacksaw • 3/8” drill and bits • Soapstone • Tape Measure •...
-
Page 4: Important - Please Read
We cannot be responsible for incorrect construction of this product. Please make sure all welds are strong before using this climbing stick. Also note these plans are protected under copyright law, unauthorized reproduction or distribution of these plans is prohibited without written consent from Digiplan 2001/07/08 rev 1.00... - Page 5 Short Leg Assembly Weldment Weldment Weldment FOLDED POSITION FOLDED POSITION FOLDED POSITION ERECTED POSITION ERECTED POSITION ERECTED POSITION MATERIAL Digiplan Weldment TITLE UPPER LEVEL ASSEMBLY DRAWN Folding Chair Folding Chair Assembly WEB ADDRESS CONTACT INFO DWG NAME www.treestandplans.ca prod.support@treestandplans.ca Folding Chair...
- Page 6 5/16 UNC Grade 5 Nut 5/16 UNC Grade 5 Nut 18 1/2 18 1/2 18 1/2 4 1/2 4 1/2 4 1/2 MATERIAL Digiplan Weldment TITLE UPPER LEVEL ASSEMBLY DRAWN Folding Chair Long Leg Assembly WEB ADDRESS CONTACT INFO DWG NAME www.treestandplans.ca prod.support@treestandplans.ca...
- Page 7 MATERIAL: 1 X 1 X .100 SQ TUBE MATERIAL: 1 X 1 X .100 SQ TUBE QTY: 1 PCS REQ'D QTY: 1 PCS REQ'D QTY: 1 PCS REQ'D MATERIAL Digiplan As Specified UPPER LEVEL ASSEMBLY TITLE DRAWN Long Leg Assembly...
- Page 8 17 7/16 17 7/16 FLUSH TO TUBE FACE FLUSH TO TUBE FACE FLUSH TO TUBE FACE 3 7/16 3 7/16 3 7/16 MATERIAL Digiplan Weldment TITLE UPPER LEVEL ASSEMBLY DRAWN Folding Chair Short Leg Assembly WEB ADDRESS CONTACT INFO DWG NAME www.treestandplans.ca prod.support@treestandplans.ca...
- Page 9 MATERIAL: 1 X 1 X .100 SQ TUBE 39° 39° 39° QTY: 1 PCS REQ'D QTY: 1 PCS REQ'D QTY: 1 PCS REQ'D MATERIAL Digiplan As Specified TITLE UPPER LEVEL ASSEMBLY DRAWN Short Leg Assembly Short Leg Piece Cuts WEB ADDRESS...
- Page 10 FLAT NYLON WEBBING FLAT NYLON WEBBING FLAT NYLON WEBBING QTY: 4 PCS REQ'D QTY: 4 PCS REQ'D QTY: 4 PCS REQ'D MATERIAL Digiplan 1/8 X 2 Nylon Web TITLE UPPER LEVEL ASSEMBLY DRAWN Hunting Chair Seat Strap Web WEB ADDRESS...
