Installation and Maintenance Instructions

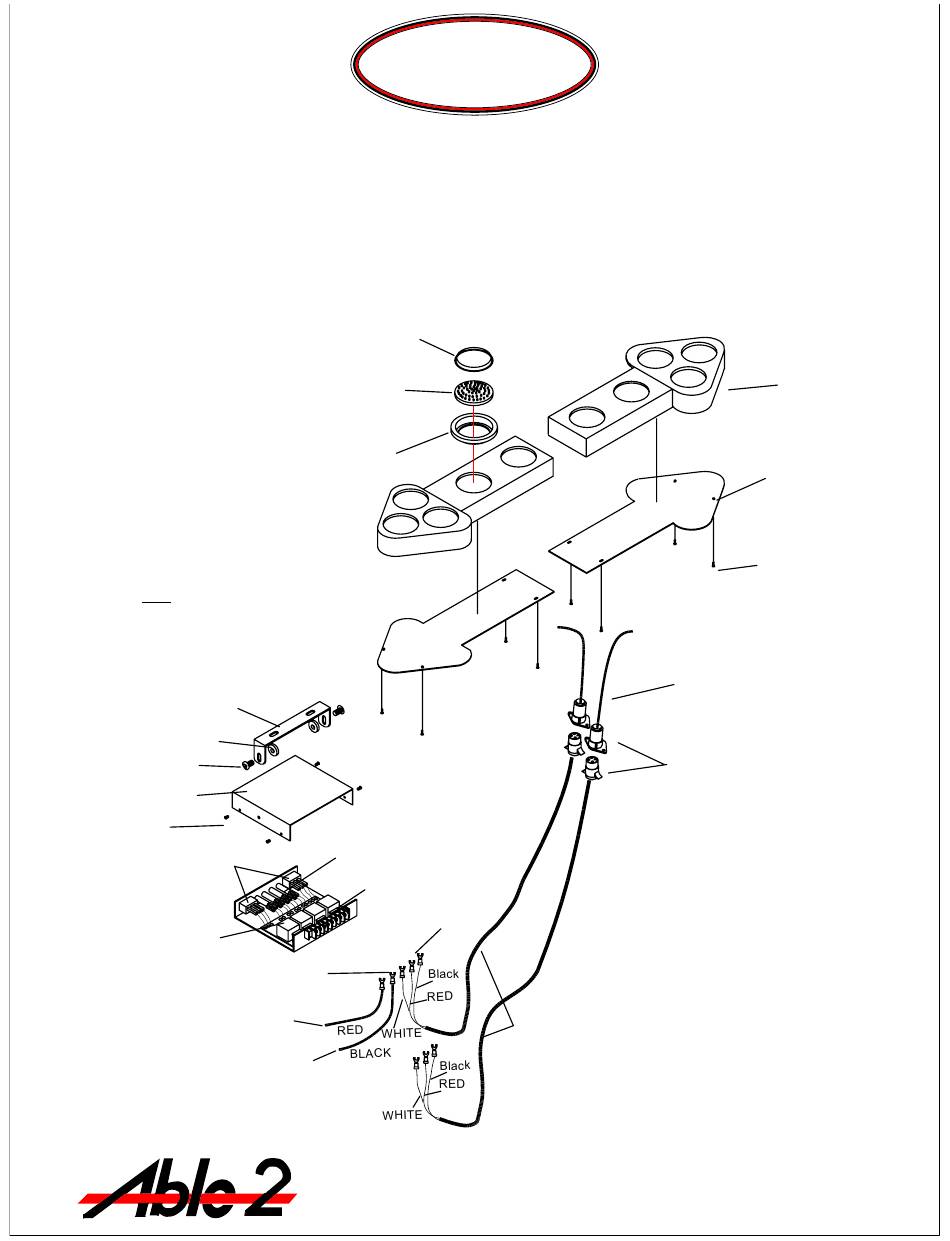

ARROW BOARD AND BACK
PANEL NOT DRAWN TO SCALE
05.0410 Mounting
Bail
90.4524 Metal
Washer (2)
90.4424 Bolt (2)
90.4972 Cover (1)
90.4320 Machine
Screw (4)
05.0502 SPDT
Switch (2)
02.6256 Circuit
Board Assembly
81.0198 #6 Blue
Spade Connector (2)
41.0141.010Red (4')
41.0141.010Blk (4')
SHO-ME
Model No. 02.6216-6234-6252
LED Arrow Board
with Control Box
17.0845.A00
PAR 36 Lens (10)
11.8516
11.8534
11.8552
PAR 36 LED(10)
90.6756 Rubber
Gasket (10)
90.3939 Red
Pilot Lamp (4)
90.3804 10 AMP
Fuse (4)
81.0198 #6 Blue
Spade Connnector (6)
PRODUCTS COMPANY
U.S. and Canada Toll Free Numbers Phone: 800-641-4098 FAX: 800-526-1240
E-mail: sales@able2products.com WEB: www.able2products.com
®
44.2184 Cable Harness
90.3704 4-Way
Connector (2)
02.6020 20' Cable
Harness with Connector
804 East Hwy 248
Cassville, MO 65625
90.4942 Frame
(2)
90.4943 Back
Cover (2)
90.4006 #8 x
1/2" Phillips Pan
Screw (8)
1-09-08
Advertisement
Summary of Contents for SHO-ME 02.6216-6234-6252
- Page 1 SHO-ME ® Model No. 02.6216-6234-6252 LED Arrow Board with Control Box Installation and Maintenance Instructions 17.0845.A00 PAR 36 Lens (10) 90.4942 Frame 11.8516 11.8534 11.8552 PAR 36 LED(10) 90.6756 Rubber Gasket (10) 90.4943 Back Cover (2) 90.4006 #8 x 1/2" Phillips Pan...
- Page 2 All connections are external. There is no need to open the control box during the installation process. Mount the SHO-ME ® Two Piece Arrow Board Panels on the vehicle as desired. Route each cable from the Arrow Board to the drivers compartment or wherever the control box will be located.
- Page 3 Wiring for 02.6216-6234-6252 Arrow Boards White to Yellow White to Yellow Red to Yellow Red to Yellow Black to Black Black to Black Black Ground +12V SHO-ME ® Made In U.S.A. - 3 -...
