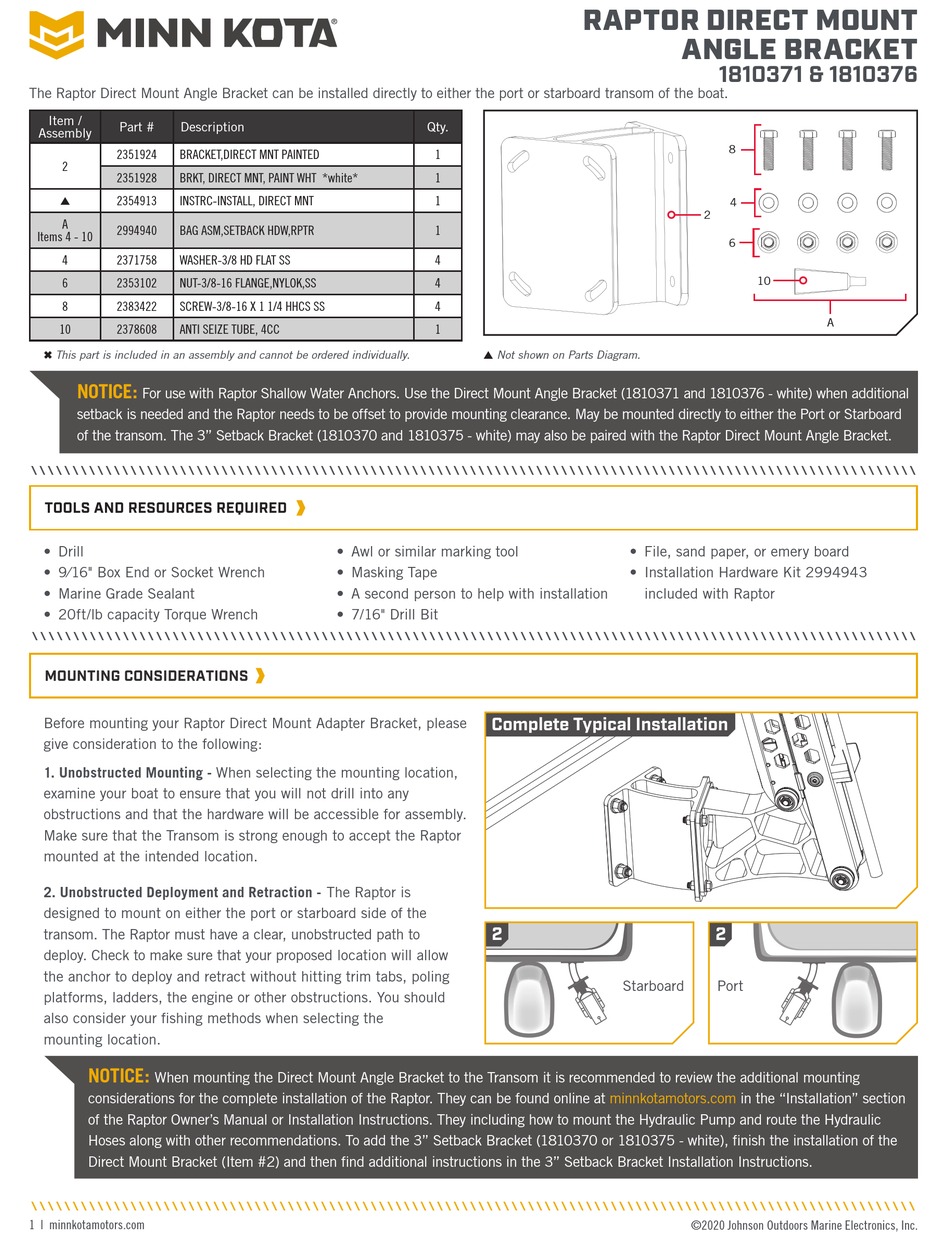

The Raptor Direct Mount Angle Bracket can be installed directly to either the port or starboard transom of the boat.
Item /
Part #
Description
Assembly
2351924
BRACKET,DIRECT MNT PAINTED
2
2351928
BRKT, DIRECT MNT, PAINT WHT *white*
2354913
INSTRC-INSTALL, DIRECT MNT
s
A
2994940
BAG ASM,SETBACK HDW,RPTR
Items 4 - 10
4
2371758
WASHER-3/8 HD FLAT SS
6
2353102
NUT-3/8-16 FLANGE,NYLOK,SS
8
2383422
SCREW-3/8-16 X 1 1/4 HHCS SS
10
2378608
ANTI SEIZE TUBE, 4CC
This part is included in an assembly and cannot be ordered individually.
NOTICE:
For use with Raptor Shallow Water Anchors. Use the Direct Mount Angle Bracket (1810371 and 1810376 - white) when additional
setback is needed and the Raptor needs to be offset to provide mounting clearance. May be mounted directly to either the Port or Starboard
of the transom. The 3" Setback Bracket (1810370 and 1810375 - white) may also be paired with the Raptor Direct Mount Angle Bracket.
TOOLS AND RESOURCES REQUIRED
• Drill
• 9⁄16" Box End or Socket Wrench
• Marine Grade Sealant
• 20ft/lb capacity Torque Wrench
MOUNTING CONSIDERATIONS
Before mounting your Raptor Direct Mount Adapter Bracket, please
give consideration to the following:
1. Unobstructed Mounting - When selecting the mounting location,
examine your boat to ensure that you will not drill into any
obstructions and that the hardware will be accessible for assembly.
Make sure that the Transom is strong enough to accept the Raptor
mounted at the intended location.
2. Unobstructed Deployment and Retraction - The Raptor is
designed to mount on either the port or starboard side of the
transom. The Raptor must have a clear, unobstructed path to
deploy. Check to make sure that your proposed location will allow
the anchor to deploy and retract without hitting trim tabs, poling
platforms, ladders, the engine or other obstructions. You should
also consider your fishing methods when selecting the
mounting location.
NOTICE:
When mounting the Direct Mount Angle Bracket to the Transom it is recommended to review the additional mounting
considerations for the complete installation of the Raptor. They can be found online at
of the Raptor Owner's Manual or Installation Instructions. They including how to mount the Hydraulic Pump and route the Hydraulic
Hoses along with other recommendations. To add the 3" Setback Bracket (1810370 or 1810375 - white), finish the installation of the
Direct Mount Bracket (Item #2) and then find additional instructions in the 3" Setback Bracket Installation Instructions.
1 | minnkotamotors.com
Qty.
1
1
1
1
4
4
4
1
Not shown on Parts Diagram.
s
• Awl or similar marking tool
• Masking Tape
• A second person to help with installation
• 7/16" Drill Bit
Complete Typical Installation
2
RAPTOR DIRECT MOUNT
ANGLE BRACKET
1810371 & 1810376
8
4
2
6
10
• File, sand paper, or emery board
• Installation Hardware Kit 2994943
included with Raptor
2
Starboard
Port
minnkotamotors.com
in the "Installation" section
©2020 Johnson Outdoors Marine Electronics, Inc.
A
