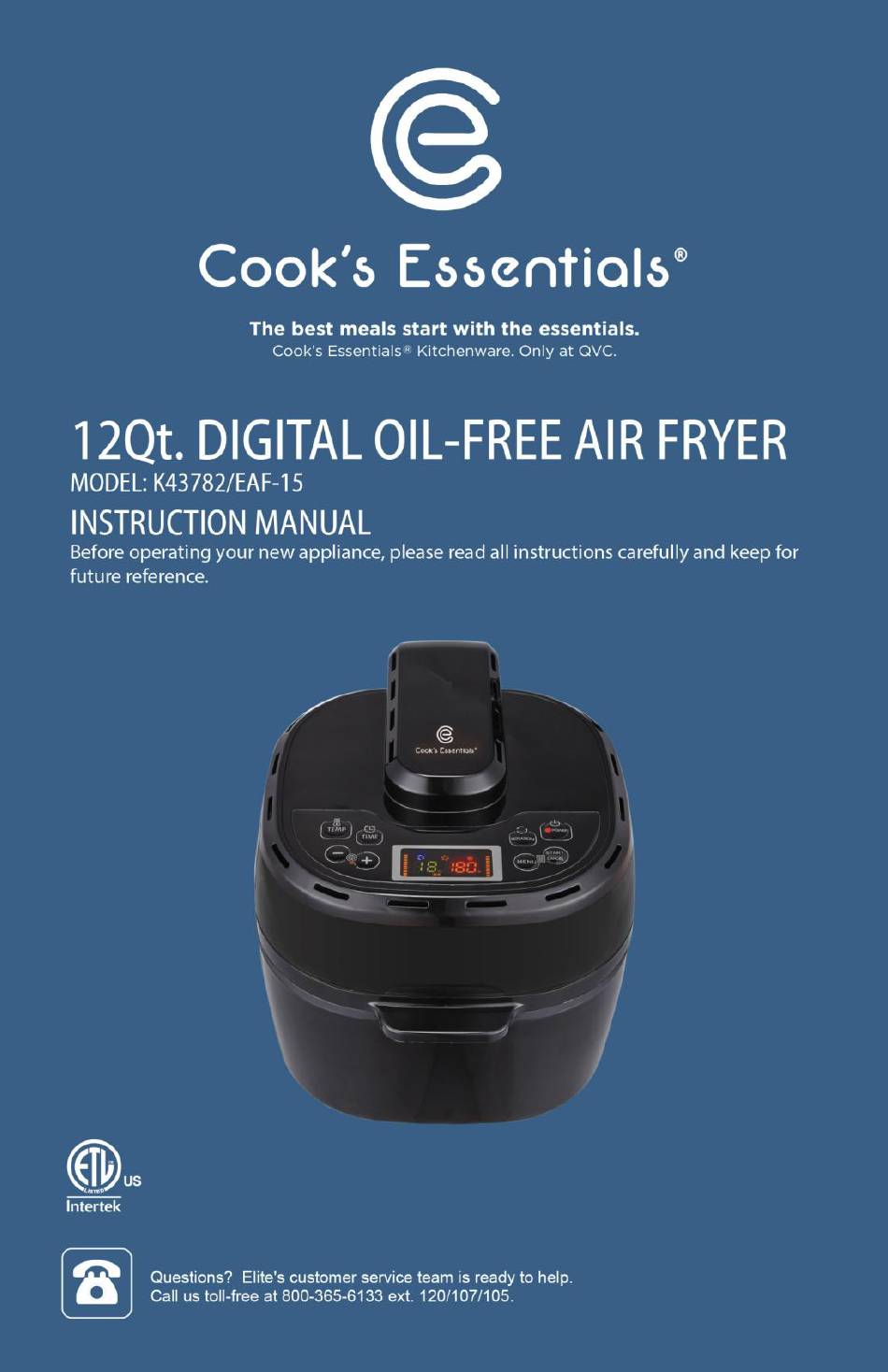

- Page 1 12Qt. DIGITAL OIL-FREE AIR FRYER MODEL: EAF-15 INSTRUCTION MANUAL Before operating your new appliance, please read all instructions carefully and keep for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS important safeguards parts identification how to use the control panel quick menu chart introduction preparing your air fryer for use how to use your air fryer 8 - rotisserie fork assembly 8 - basket assembly 9 - how to manually program frying time/temp 9 - how to select a quick menu function 9 - rotation function 9 - during the cooking/frying process... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions before using your Cook's Essentials Air Fryer. Danger Never immerse the power cord, plug or housing in water or under the tap. - Page 4 IMPORTANT SAFEGUARDS (cont.) Caution 27. After use, turn off power to the appliance then unplug from the wall outlet. 28. Unplug the appliance from outlet when it is not in use or before cleaning. Allow it to cool down first before cleaning. 29.
-
Page 5: Parts Identification
PARTS IDENTIFICATION Inner Glass Cover NOTE: The Inner pot Inner Pot consists of a non-stick Main Body surface. To avoid Lid Handle scratching the non-stick Top Cover surface, please use Outer Plastic Cover wooden or plastic Lid Unlock Button utensils. Inner Pot Handle Power Cord 10. -
Page 6: How To Use The Control Panel
HOW TO USE THE CONTROL PANEL Temperature button Time button Rotate button Quick Menu button POWER BUTTON: Powers the Digital Air Fryer ON/OFF. START/CANCEL BUTTON: Starts or Cancels selected cooking function. MENU BUTTON: Use this button to cycle through and select a QUICK MENU function - CUSTOM, FROZEN FRIES, FRESH FRIES, CHICKEN WINGS, ROTISSERIE CHICKEN, STEAK, FISH FILLET, FROZEN SNACKS. -
Page 7: Quick Menu Chart
INTRODUCTION Thank you for purchasing the Cook's Essentials Digital Air Fryer. Your new Digital Air Fryer has a variety of functions to handle a wide array of cooking tasks. With its easy to use digital display and 8 Quick Menu functions, you can fry, cook, or even bake your favorite meals and snacks with ease! Best of all you will be cooking healthier without the addition of oil. -
Page 8: Preparing Your Air Fryer For Use
PREPARING YOUR AIR FRYER FOR USE Before using your Digital Air Fryer for the first time, carefully remove all packaging material. Remove the parts from the box and wash the Inner pot (2), Wire rack (21), Bake Tray (22), Basket (23), Rotisserie Forks (24), and Skewer (25) with warm, soapy Figure 1 water and a non-abrasive sponge. -
Page 9: Rotisserie Fork Assembly
HOW TO USE YOUR AIR FRYER (cont). ROTISSERIE FORK ASSEMBLY Screw one Rotisserie fork (24) onto one end of the Skewer (25) as shown in Step ❶. Push the Skewer (25) through the center of the chicken or meat you wish to cook (see Step ❷) until the Rotisserie fork (24) pierces the food. -
Page 10: How To Select A Quick Menu Function
HOW TO USE YOUR AIR FRYER (cont). HOW TO MANUALLY PROGRAM FRYING TIME AND TEMPERATURE: Plug Power Cord (9) into an electrical outlet. The appliance will be in standby mode. Press the POWER button. Press the MENU button once and the CUSTOM function will flash on the display. Press the TIME button and 00 will flash on the display. -
Page 11: When Cooking/Frying Is Complete
HOW TO USE YOUR AIR FRYER (cont). Some recipes require stirring/mixing the contents mid-way through cooking (see Cooking Time Chart on page 12). You can do this in the middle of the cooking process by grasping the Lid handle (4) and lifting the Top Cover (5) which will PAUSE the cooking process. Allow the Top Cover (9) to click and lock into position and remain open on its own. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE The Digital Air Fryer should be cleaned thoroughly after every use. Make sure the Power cord (9) is disconnected from the electrical outlet and that the appliance has cooled down before attempting to clean. The Inner Pot (2) has a nonstick coating. Do not use metal utensils or abrasive cleaning materials on them, as this can damage the non-stick coating. -
Page 13: Cooking Time Chart
COOKING TIME CHART The chart on this page helps you to program basic times and temperatures for common foods. Please note that all of the information below is for your reference only and can be adjusted according to the user’s preference. They are approximations only as foods differ in size and density so cooking times and temperatures cannot be guaranteed. -
Page 14: Hints And Tips
HINTS AND TIPS TIPS - Smaller cuts of foods usually require a slightly shorter cooking time than larger foods. - A larger amount of foods only requires a slightly longer cooking time and a smaller amount of foods only requires a slightly shorter cooking time. - Stirring or shaking smaller foods mid-way through the cooking process will improve the end result and can help cook more evenly. -
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible cause Solution The airfryer does The appliance is not Plug the power cord (9) into an electrical not work. plugged in. outlet. You did not press START button. Contact customer service at 800-365- The appliance is defective. 6133 ext.
