Summary of Contents for Fulterer FR 6000 E-Lock

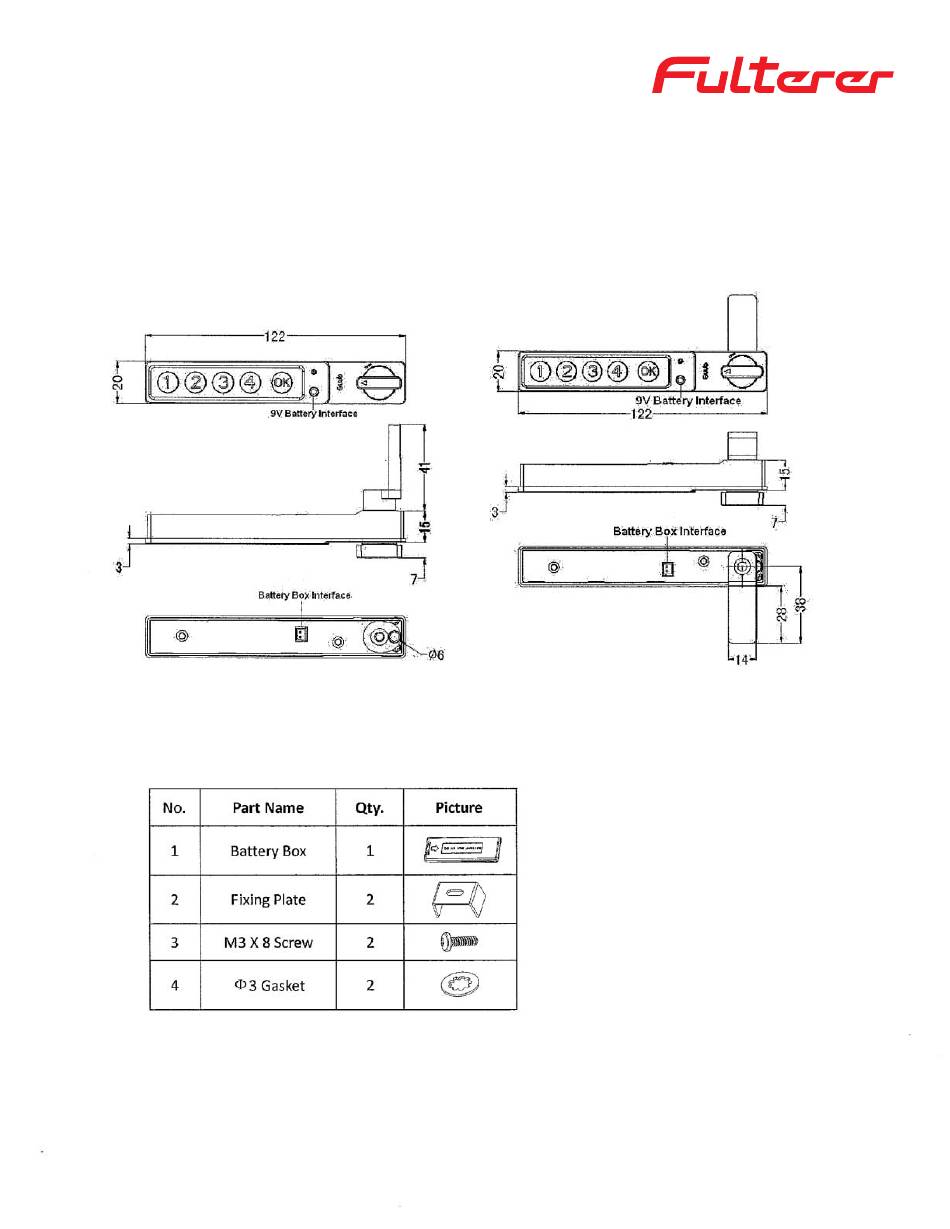

- Page 1 Installation Instructions Intelligent Drawer Lock FR 6000 E-Lock I. Product Dimensions a. Lock Body Dimensions (mm): b. Lock Body Dimensions (mm): II. Other Accessories III. Installation Conditions Metal Drawer Suggested, Metal Plate thickness: 0.5mm–3.0mm.
- Page 2 IV. Installation Example a. Install on Drawer Door 1. Mark the position on the drawer door. Drill the holes on the drawer front panel (outside) as following dimension (mm): 2. Cut the holes for installation of lock and battery box on the drawer interior panel (inside) as shown in the following drawings.
- Page 3 b. Install on Drawer Door 1. Cut door hole as above example (a). Put the lock into the hole and secure it with two M3 x 8 screws and M3 gasket. Connect battery box cable with the lock, and then put battery box into battery box hole. Drawings of completed instal- lation are as follows (for reference) C.
- Page 4 3. Drawing of completed installation is as follows (for reference): The battery box can be attached to the top inside by magnet. V. Important Installation Reminder a. Wrong Installation If the lock is installed in an improper way with a gap between the lock and the interior panel or fixing plate, the back plate of lock body maybe deformed during use as shown in the following drawing.
- Page 5 . Correct Installation Please make sure there is no gap between the lock and the interior panel or fixing plate when screws are tightened. To put washer through screws or bend the plate as following instruction diagram to eliminate the gap. Instruction Diagram I.
