Summary of Contents for Godrej & Khimji LFC Drawer

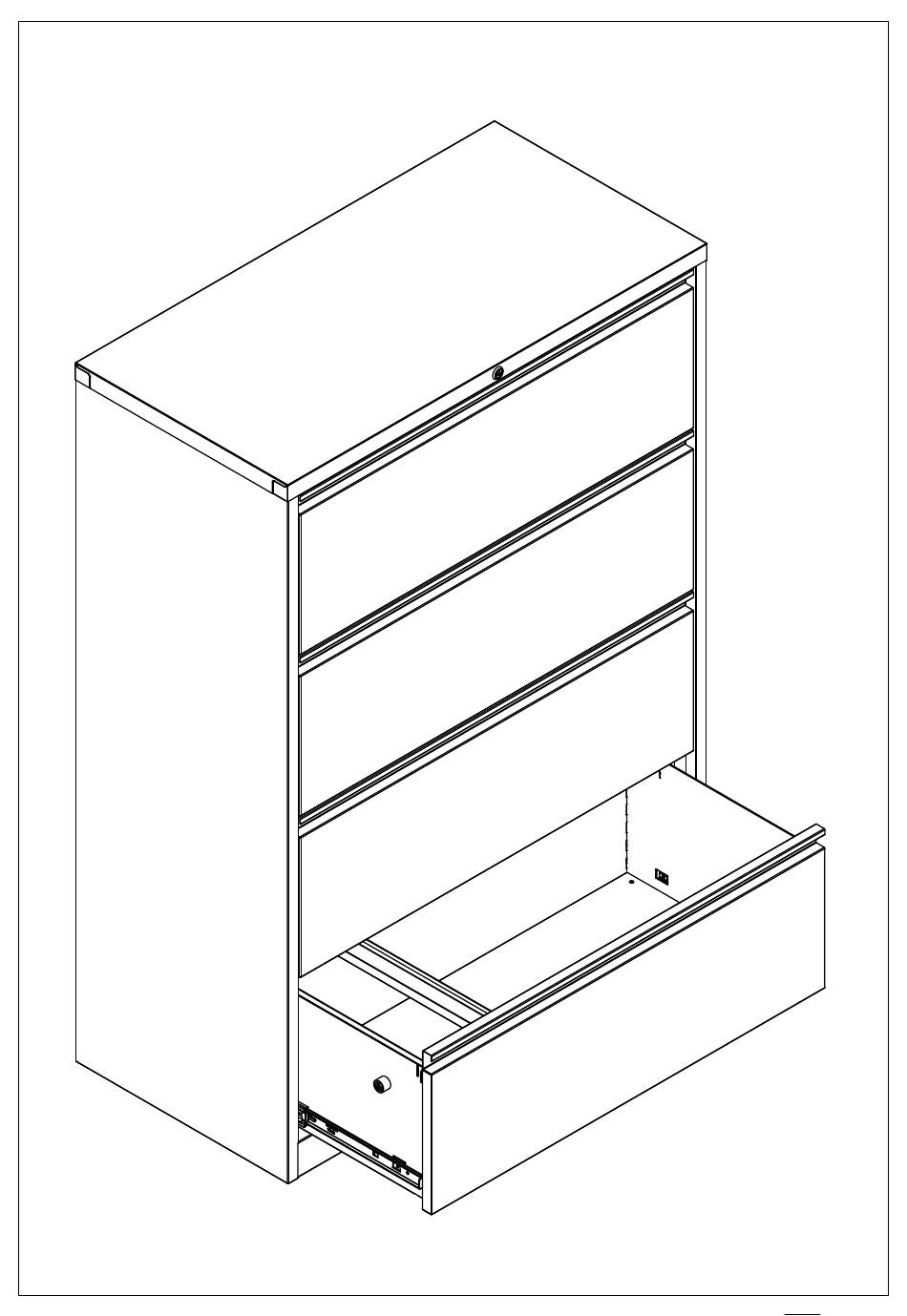

- Page 1 L ateral F iling C abinet (LFC) Assembly Instructions Draft :- Rprajh 03.11.16...
- Page 2 Assembly of Drawer Components of each Drawer Drawer Front Panel Side Back Side (SBS) Panel Assembled Drawer Drawer Bottom Panel Rivet (7 Nos.) Page No. of 14...
- Page 3 Folding of Side Back Side (SBS) Panel 90° 90° Page No. of 14...
- Page 4 Insertion of SBS into the Drawer Front Drawer Front 2° Before inserting SBS, fold sides 2° further inwards from its right angle fold. 2° After insertion, all four flaps into the relevant slots on the sides and fold them firmly towards the drawer front.
- Page 5 Fixing of Drawer Bottom Drawer Bottom Place drawer bottom panel at an inclined position and lower the panel towards drawer front as shown. Thereafter, the drawer bottom into the folded gap in the SBS and press it down till the six lancing's click and get locked. Locking of lancings at 6 positions Page No.
- Page 6 Riveting of Drawer Rivet the drawer front to the sides Rivet (4Nos.) Rivet 3Nos. Invert the drawer for riveting the bottom panel to the drawer front Page No. of 14...
- Page 7 Assembly of LFC Body Components of LFC Body Bottom Counter Weight Panel Holding Section (LH&RH) Body Back Panel Top Panel Counter Weight File Bar 2 No. per Drawer Unit Drawer Side Panel. Hanging Folder Rail LH&RH Optional) Triangle Plate with Glide 'L' Piece 4 Nos.
- Page 8 Hooking two side panels with back panel Fixing & Riveting of Kick Plate Inverted Kick Plate RH Side Inner View Back Panel Panel Kick Plate LH Side Panel Mounting of 'L' Piece 'L' Piece Inverted Kick Plate Inner View Page No. of 14...
- Page 9 Fixing of Body Bottom Panel Body Bottom Notch While inserting the body bottom panel, keep big notch at back side and small notch at front side Page No. of 14...
- Page 10 Counter Weight Holding Section & Slide Fixing Counter weight holding section Fold the lower flap of Place the counter wt. holding counter wt. holding section as shown. section as shown. 5 Nos. per Side To align the slide & body back vertically, Rivet together the side, back &...
- Page 11 Triangle Plate Mounting & Riveting Inverted Kick Plate Inner View Rivet 2Nos. These rivets are affixed after triangle plate riveting as shown. Rivet 14Nos. Place 3 rivets as shown. While Triangle riveting lift the kick plate and push the Plate two sides inwards.
- Page 12 Adding Counter Weight Before adding the counter weight, remove all slides. Add 1st counter wt. into the counter wt. holding section. Counter Weight Keep the recased side or step at Front Side Counter Weight Holding Section Add 2nd counter wt as shown. After adding the counter wt., mount all (4 pairs) slides.
- Page 13 Fixing of Top Panel Shooting Insert the top panel into the back & side panel and hold at an angle as shown. Shooting Bracket After 'L' piece insertion, turn the key in Panel counterclockwise (Unlock position) and insert the shooting rods into the shooting bracket of R.H.
- Page 14 LFC DRAWER UNIT CAUTION PRECAUTION To prevent tipping and possible injury Each cabinet is equipped with interlock mechanism so that only one drawer can be opened at a time. However, for added safety, always close the drawer in use before opening another drawer.
- Page 15 Before Drawer Mounting Mounting of Drawer Unit Drawer Unit RH & LH Knobs are in closed position and pointing inwards Ensure SBS lancing's dimples are clicks in with bayonets on drawer sides 3 Pairs of knobs are in Close each mounted drawer unit for mounting of closed position subsequent drawer units.
