The Source inStudio 8018049 User Manual

Multimedia Bluetooth
®
speaker system
user Manual

InTRoDuCTIon

Thank you for purchasing the inStudio
System. The speaker produces rich sound that will be ideal for your PC,
iPod , iPhone , MP3 player and other portable audio devices enabled with
® ®
a 3.5mm jack. Now you can seamlessly stream music from your iPad
iPhone , Android™ device, laptop, or other Bluetooth
®

PaCkaGe ConTenTs

• Subwoofer x 1
• Satellite speakers x 2
• User Manual x 1
• Audio cable x 1

waRnInGs

Caution! Read these instructions. Keep these instructions for future
reference. Heed all warnings. Follow all instructions.
• Do not use this apparatus near water–the appliance should not be used
near water or moisture (i.e. In a wet basement or near a swimming pool)
• Clean only with a dry cloth
• Do not install near any hear sources such as radiators, heat registers,
stoves, or other apparatus (including amplifi ers) that produce heat
• Only use attachments/accessories specifi ed by the manufacturer
• Unplug the apparatus during lightning storms or when unused for long
periods of time
• Refer all servicing to qualifi ed personnel
sPeCIFICaTIons:
output Power: 28W + 14W x 2 (RMS)
Full-Range speaker: 2.5", 4 Ohms
speaker unit:
subwoofer: 6.5", 8 Ohms
Impedance: 8 Ohms/4 Ohms
Frequency Response: satellite amplifi er: 250-20 kHz
subwoofer amplifi er: 30-100 Hz
Power supply: 120V ~ 60Hz
RCA jack
signal Input:
s/n Ratio: ≥70dB
≥ 40dB
separation:
unit size: subwoofer: 235 x 245 x 235 mm (WxDxH)
satellite: 140 x 138 x 134 mm (WxDxH)

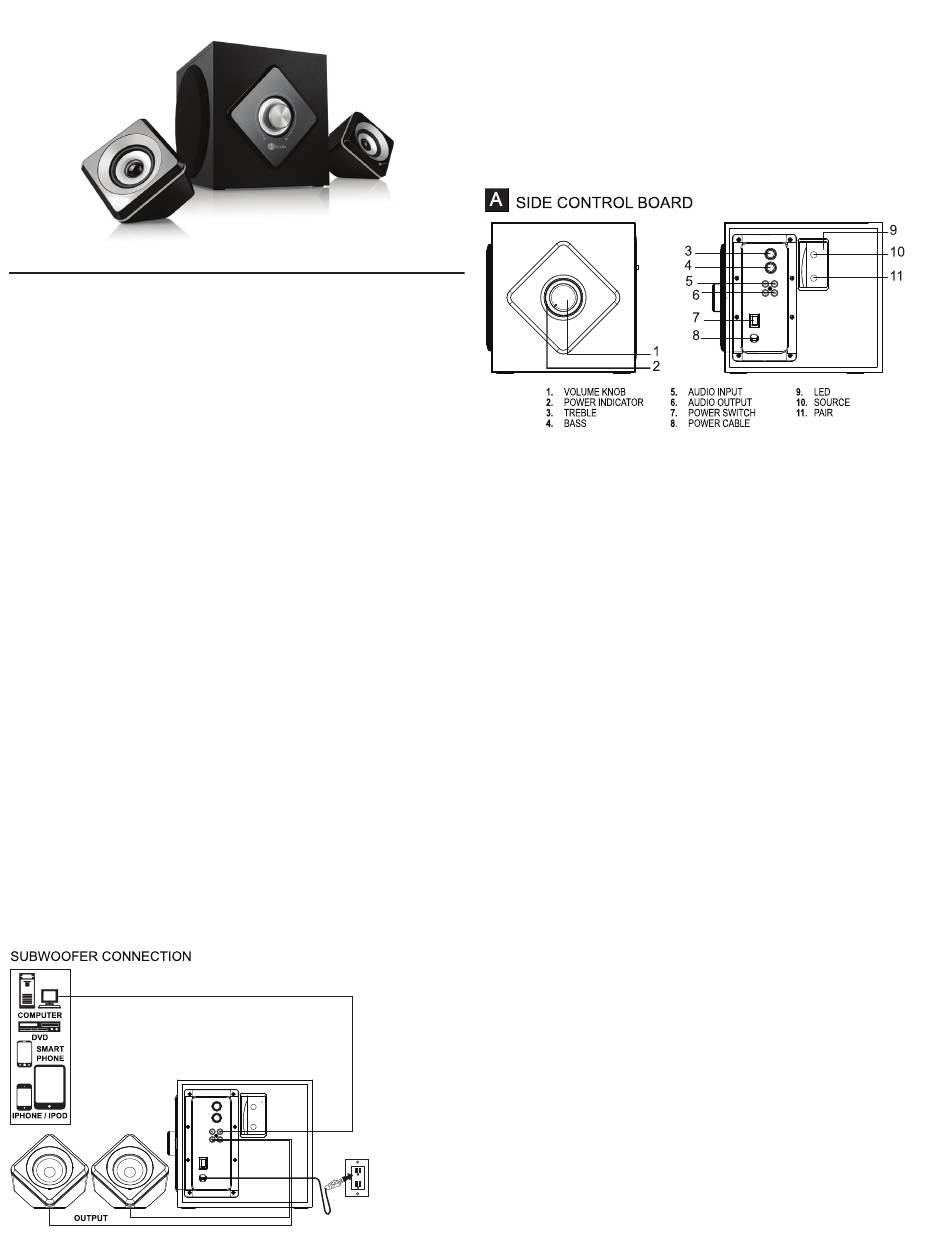

sPeakeR ConneCTIons

8018049
Multimedia Bluetooth Speaker
™ ®
-enabled devices.
®
InsTRuCTIons
1. Connect each satellite speaker to the subwoofer–red RCA plug into the
red audio output, and the white plug into the white audio output.
2. Connect the RCA cables into the input jacks matching red to red and
white to white. Connect the green adapter to your device.
3. Turn on the power and adjust the volume level to your desired
preference. A blue LED light surrounding the volume control glows
when power is turned on.
sPeakeR ConneCTIons
,
®
InsTRuCTIons FoR wIReD ConTRoLs
1. source selection:
Press SOURCE button (10) to switch between Bluetooth
LED light for Bluetooth
2. Bluetooth Pairing:
®
a) For every new Bluetooth
unit the fi rst time. When you press the PAIR button (11), the blue LED
will fl ash quickly. Activate the Bluetooth
search for "inStudio 8018049" on the list. After pairing successfully, the
blue light will stay lit.
b) The unit will pair with your device automatically after the fi rst pairing.
3. nFC Pairing:
Note: Please make sure that your smartphone/tablet supports NFC an
Bluetooth over NFC.
®
a) Activate the NFC functionality in your smartphone or tablet.
b) Place the device on the NFC mark on the top side of the subwoofer and
keep it there until the speaker is paired and connected.
c) Move the smartphone or tablet and start playing your music.
input and red LED for AUX.
®
device, you should pair the device with the
®
function on your device and
®
or AUX input. Blue
®
