Summary of Contents for Tobii Dynavox EM-12

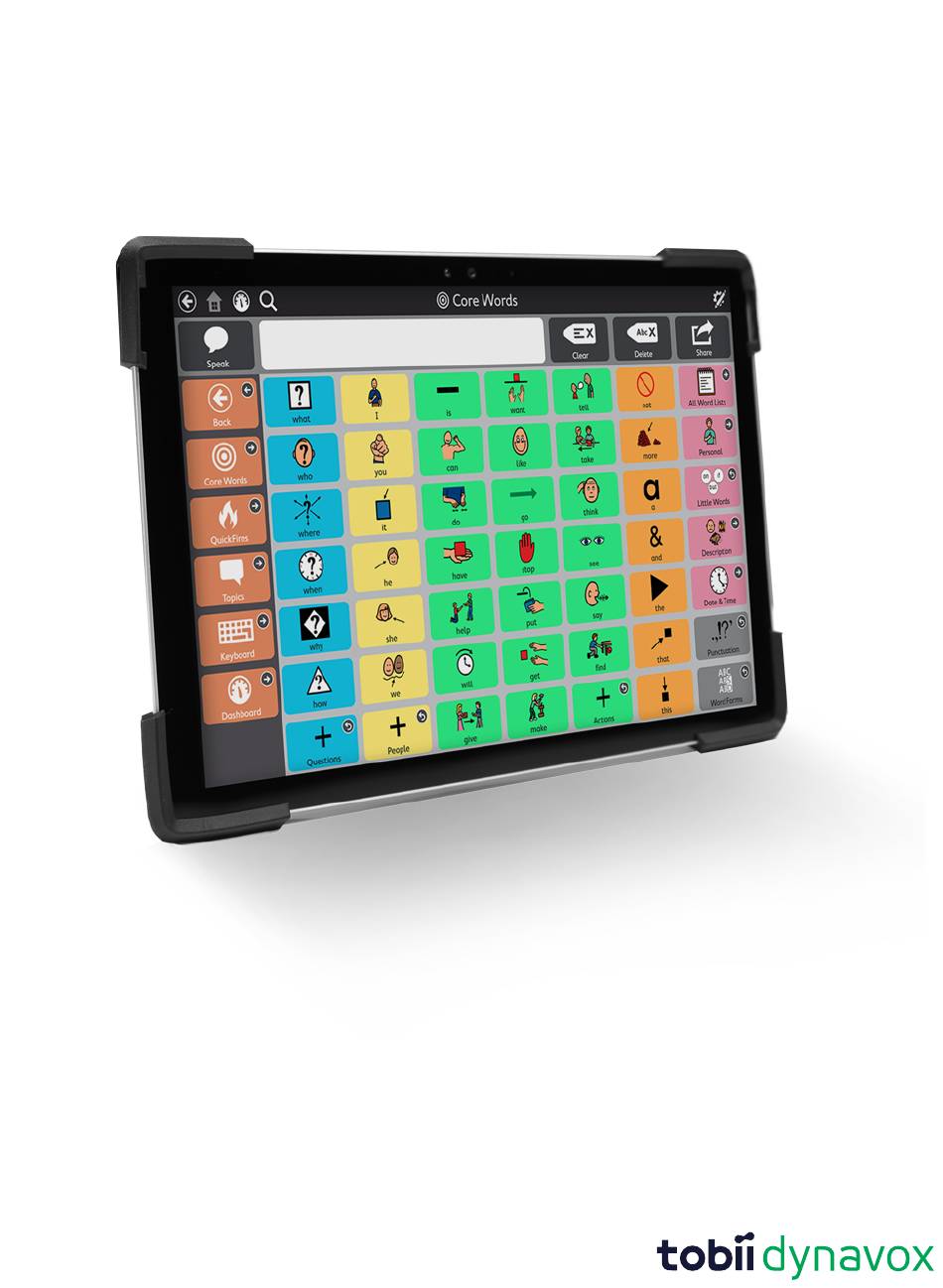

- Page 1 Tobii Dynavox EM-12 User’s Manual...
- Page 2 The information contained in this document is proprietary to Tobii Dynavox. Any reproduction in part or whole without prior written authorization by Tobii Dynavox is prohibited. Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
-
Page 3: Table Of Contents
1.3.2 Mounted Use......................6 Package Contents........................6 1.4.1 Tobii Dynavox EM-12....................7 Safety ............................8 Overview of the Tobii Dynavox EM-12 .................... 9 Key Features..........................9 Product Layout........................9 3.2.1 Ports, Sensors and Device Buttons .................10 Preinstalled Software ......................11 Batteries in the Tobii Dynavox EM-12................... 12 Batteries ..........................12... -
Page 4: Introduction
Is used to inform of something in which there is a conceivable risk of harm to the user if the Warning is ignored. Is used to inform of something that can cause damage to hearing. Symbols and Markings This section provides information about the symbols that are used on the Tobii Dynavox EM-12, its accessories, or packaging. Symbol or Markings Description Compliance with the WEEE directive. - Page 5 California Energy Commission (CEC) compliant. Approved by Taiwan Communications Communications Commission (The National Communications Commission) Regulatory mark which represent compliant Russia, Kazakh- stan, Belarus regulatory requirement. For indoor use only. 1 Introduction #12006492 Tobii Dynavox EM-12 User’s manual v.1.1 - en-US...
-
Page 6: Intended Use
With the Tobii Dynavox EM-12, the device user has the freedom and flexibility to use the communication features and functions or built-in pre-programmed page sets that best suit his or her communication needs based on cognitive or physical ability, age or language skill level. -
Page 7: Tobii Dynavox Em-12
– Tobii Dynavox Communicator 5 – Tobii Dynavox Snap™ + Core First ® 1 Tobii Dynavox EM-12 User’s Manual (on the device as a PDF document) ● ● 1 Tobii Dynavox EM-12 Quick Start Manual (printed) ● 1 Microsoft Surface Pro Cleaning & Usage Instructions (printed) ●... -
Page 8: Safety
Use only the power supply unit, plug adapters, and AC power cord that came with your device or that you received from an authorized Microsoft retailer. The Tobii Dynavox EM-12 is not to be used as a life supporting Device, and it shall not be relied on in case of loss of function due to power loss or other causes. -
Page 9: Overview Of The Tobii Dynavox Em-12
1 × WLAN (Wireless Local Area Network) 1 × Durable Case for Surface Pro ● Product Layout The Tobii Dynavox EM-12 device has an 12.3″ color 10 point multi-touch PixelSense ™ display with a 2736 × 1824 pixel resolution. 3 Overview of the Tobii Dynavox EM-12... -
Page 10: Ports, Sensors And Device Buttons
Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Be extra careful with the USB connectors. 3 Overview of the Tobii Dynavox EM-12 #12006492 Tobii Dynavox EM-12 User’s manual v.1.1 - en-US... -
Page 11: Preinstalled Software
Preinstalled Software The Tobii Dynavox EM-12 device is delivered with all pre-ordered and required software installed and ready to use. Should a re- installation become necessary at any stage, perform a factory reset using Windows 10 built in factory restore options. For more information, see 5.8 Reset the Tobii Dynavox EM-12, page 15. -
Page 12: Batteries In The Tobii Dynavox Em-12
The Tobii Dynavox EM-12 device has one built-in battery and a battery indicator. The battery indicator will send out a warning of Low battery when the battery drops below 10% of its capacity. If the Tobii Dynavox EM-12 device is not powered up by the power supply for charging, the Tobii Dynavox EM-12 device will shut down automatically. -
Page 13: Using The Tobii Dynavox Em-12
No skill other then reading is necessary for setting up the Tobii Dynavox EM-12 device. Follow this User´s Manual and the Quick Start Manual. Starting the Device Press the power button on the top of the device. (Position 2 in Figure 3.1 Tobii Dynavox EM-12 Tablet, page 10) to start the To- bii Dynavox EM-12. 5.1.1... -
Page 14: Shutting Down The Tobii Dynavox Em-12
Use Tobii Dynavox Communication Software or other relevant software to operate the cameras. Adjusting the Volume To adjust the volume use the Volume Up and Down buttons (Position 3 in Figure 3.1 Tobii Dynavox EM-12 Tablet, page 10) on top side of the Tobii Dynavox EM-12 device. -
Page 15: Reset The Tobii Dynavox Em-12
Enable Home Button — Not valid for the Tobii Dynavox EM-12 Reset the Tobii Dynavox EM-12 If you have made a lot of different changes to the Tobii Dynavox EM-12 and would like to start over, perform a Recovery from within Windows. - Page 16 ● – Reinstalls Windows 10 and removes all your personal files. – Removes apps and drivers you installed. – Removes changes you made to settings. 5 Using the Tobii Dynavox EM-12 #12006492 Tobii Dynavox EM-12 User’s manual v.1.1 - en-US...
- Page 17 Select Next to continue or Cancel to abort. Select Reset to continue or Cancel to abort. This will take several minutes. When finished, the Tobii Dynavox EM-12 will reboot and you will be presented with the Manual key entry menu.
-
Page 18: Product Care
The cleaning should be done using a wipe style product only. Wipe only outer surfaces of the Tobii Dynavox EM-12 device and allow the product to dry naturally or follow the wipe instructions. Do not use spray product which may saturate the Tobii Dynavox EM-12 device or allow moisture into the unit. -
Page 19: Appendix A Support, Warranty, Training Resources
For support, please contact your local representative or Support at Tobii Dynavox. In order to receive assistance as quickly as possible, make sure you have access to your Tobii Dynavox EM-12 device and, if possible, an Internet connection. You should also be able to supply the serial number of the device, which you will find on the Service tag label. -
Page 20: Appendix B Compliance Information
Appendix B Compliance Information For compliance information, see the printed Microsoft document provided in the box with the Surface Pro hardware. The infor- mation can also be found at: https://support.microsoft.com/en-us/help/4023454/surface-safety-and-regulatory-information. Appendix B Compliance Information Tobii Dynavox EM-12 User’s manual v.1.1 - en-US... -
Page 21: Appendix C Technical Specifications
Rear-facing: 8.0 MP autofocus camera with 1080p Full HD video Front-facing: 5.0 MP camera with 1080p Skype HD video, Windows Hello face authentication Battery Item Specification Battery Technology Li-ion rechargeable battery Battery Capacity 45.0 Wh Appendix C Technical Specifications Tobii Dynavox EM-12 User’s manual v.1.1 - en-US... -
Page 22: C3 Power Adapter
Battery Charge Time < 4 hours Power Adapter Item Specification Model Name Microsoft Model 1800 Rated Input 100–240V~50-60Hz, 1.16 A Rated Output 15VDC, 2.58A, 5VDC 1A Output Plug Surface Connect Appendix C Technical Specifications Tobii Dynavox EM-12 User’s manual v.1.1 - en-US... -
Page 23: Appendix D Approved Accessories
Tobii Dynavox Part No. 12005021 Eye tracker with bracket EyeMobile Plus For information about the latest approved Accessories for the Tobii Dynavox EM-12, please visit www.TobiiDynavox.com contact your local Tobii Dynavox reseller. Appendix D Approved Accessories Tobii Dynavox EM-12 User’s manual v.1.1 - en-US... - Page 24 Copyright ©Tobii AB (publ). Not all products and services offered in each local market. Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device.
