Summary of Contents for Sollae EZI-10

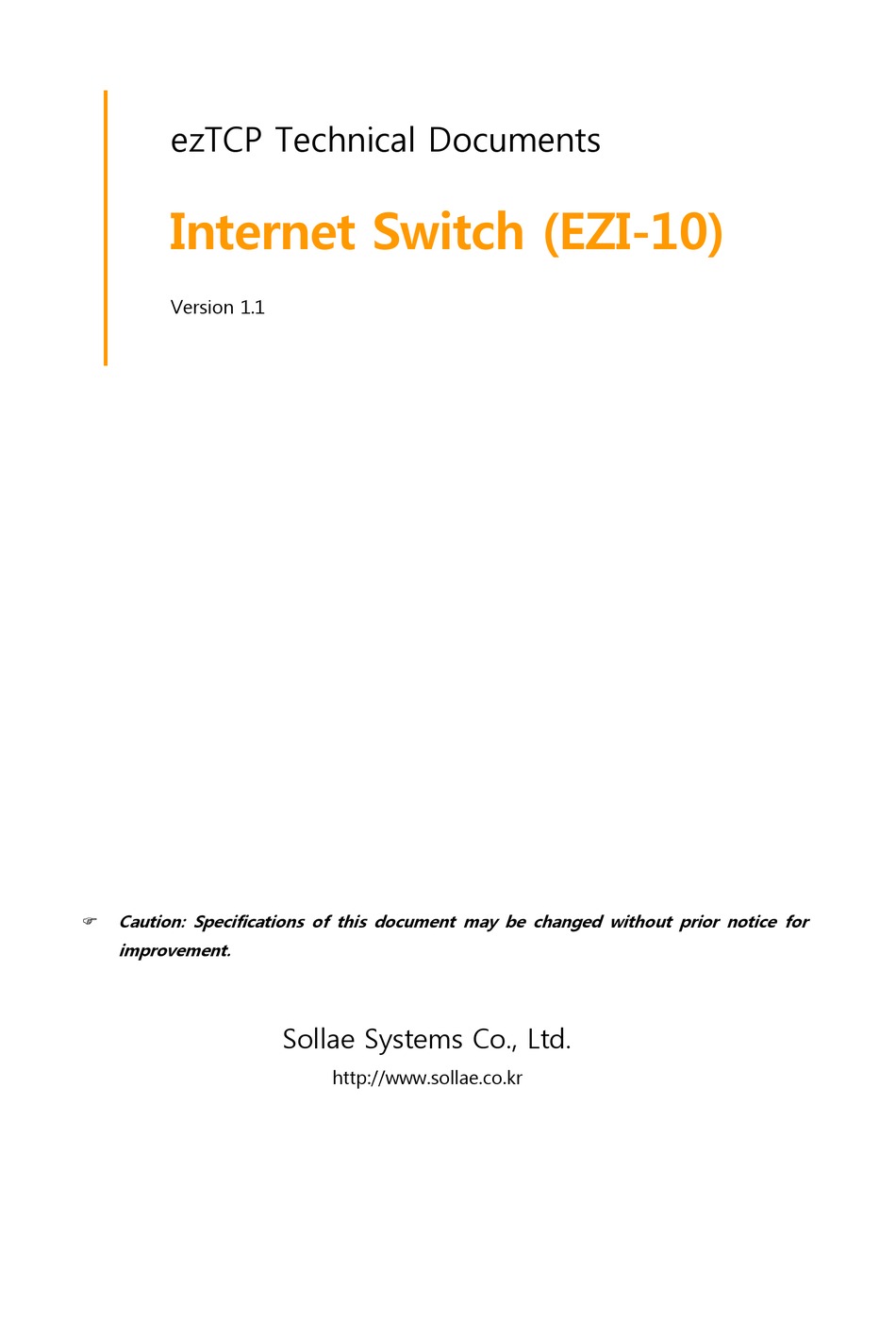

- Page 1 Technical Documents Internet Switch (EZI-10) Version 1.1 Caution: Specifications of this document may be changed without prior notice for improvement. Sollae Systems Co., Ltd. http://www.sollae.co.kr...
-
Page 2: Table Of Contents
Internet Switch (EZI-10) Ver. 1.1 Contents Overview ..........................- 2 - Configuration .......................... - 3 - 2.1 Master ..................................- 3 - 2.1.1 Setting Network Parameters ....................... - 3 - 2.1.2 Setting TCP/IP Parameters ........................- 4 - 2.2 Slave ..................................- 5 - 2.2.1 Setting Network Parameters ....................... -
Page 3: Overview
Figure 1-1 an application of Internet Switch (switch ON) Figure 1-2 an application of Internet Switch (switch OFF) You are allowed to control remote digital output by using two of EZI-10 as you can see in the above systems. - 2 - Sollae Systems Co., Ltd. -
Page 4: Configuration
2.1.1 Setting Network Parameters ezConfigIO is the tool for configuring parameters of EZI-10. Connect EZI-10 to your network and run ezConfgIO on your PC. Referring to the below figure, set network parameters. Figure 2-1 network configuration of the master ① Press the [Search All] button. -
Page 5: Setting Tcp/Ip Parameters
Internet Switch (EZI-10) Ver. 1.1 2.1.2 Setting TCP/IP Parameters To communicate on Modbus/TCP, a master and a slave should be connected on TCP. The one which tries to make connection sending [SYN] segments is called TCP client and the one which waiting connection request segments from clients is called TCP server. Usually, a master is set to a TCP client. -
Page 6: Slave
Internet Switch (EZI-10) Ver. 1.1 2.2 Slave 2.2.1 Setting Network Parameters The way of setting network parameters of slaves is the same with the master’s. Figure 2-3 network configuration of the slave ① Press the [Search All] button. ② Set network parameters. -
Page 7: Setting Tcp/Ip Parameters
Internet Switch (EZI-10) Ver. 1.1 2.2.1 Setting TCP/IP Parameters Usually, a slave is set to a TCP server. (Modbus / Passive) In case that the master is set to a TCP server, the slave should be a TCP client. ... -
Page 8: Operation
Internet Switch (EZI-10) Ver. 1.1 Operation 3.1 Basic Operation There are two basic operations in this application. Automatic Control of the Master’s OUTPUT by the Slave’s INPUT Figure 3-1 basic operation 1 Automatic Control of the Slave’s “OUTPUT by the Master’s INPUT... -
Page 9: Advanced Operation
Figure 3-3 advanced operation Valid Time EZI-10 recognizes that the input signal is valid only if the signal keeps HIGH for the value of [Valid Time]. That means all shorter signals than the value of [Valid Time] are ignored. The unit is 10ms. -
Page 10: Revision History
Internet Switch (EZI-10) Ver. 1.1 Revision History Date Version Description Author 2011.04.07 ○ This document has been initially released. Roy LEE 2013.02.07 ○ Update some figures(specifying Power type) Roy LEE - 9 - Sollae Systems Co., Ltd. http://www.sollae.co.kr...
