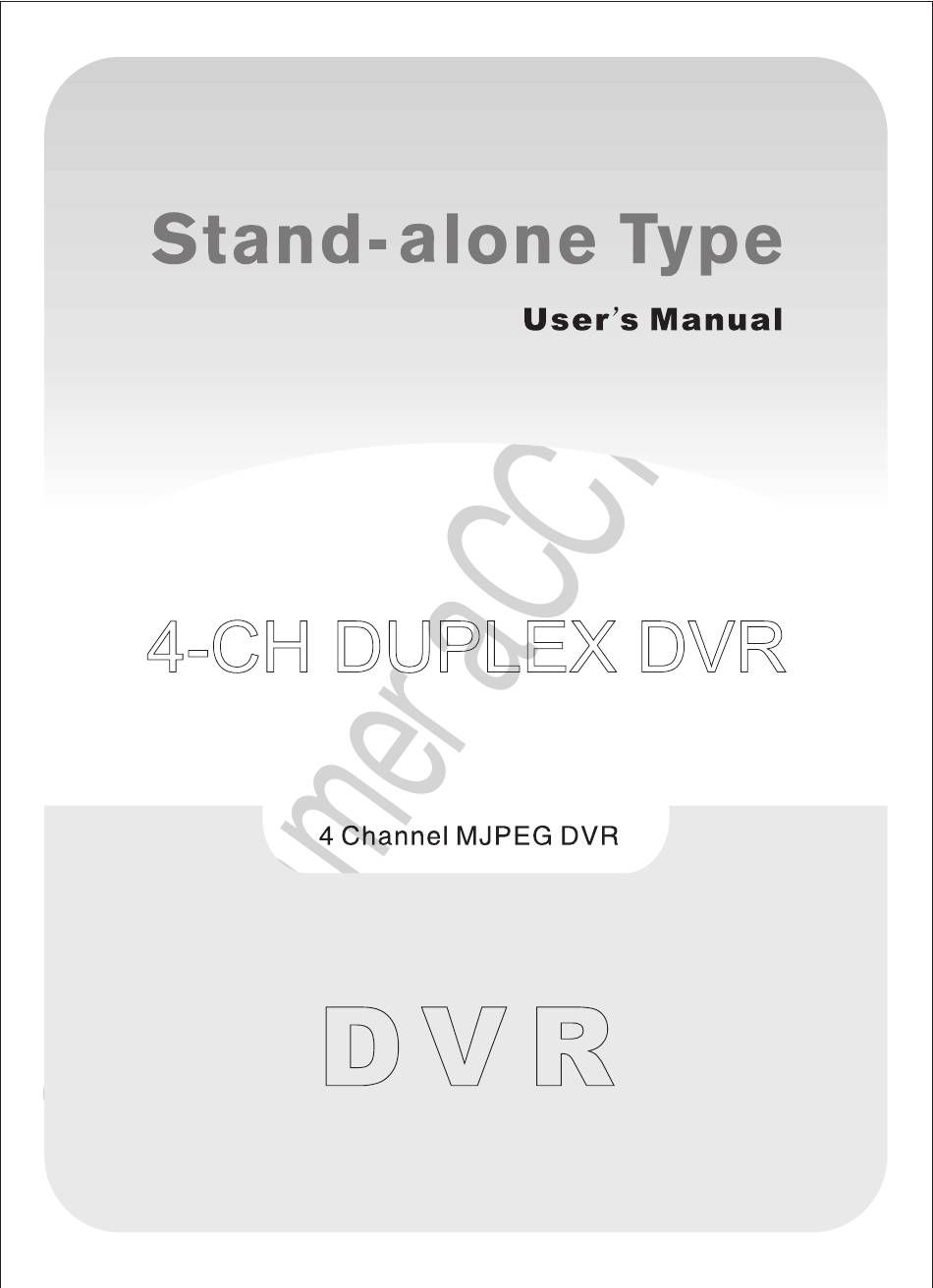

SpyCameraCCTV VX4SL User Manual

Stand-alone type 4 channel mjpeg dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX4SL and is the answer not in the manual?

Questions and answers

Related Manuals for SpyCameraCCTV VX4SL

Summary of Contents for SpyCameraCCTV VX4SL

  • Page 2 Thank you for purchasing our 4CH duplex DVR. Please read this User Manual carefully to ensure that you can use the device correctly and safely. Please take actual machine model number as quasi to validate DVR specification. The contents of this Manual are subject to change without notice.

  • Page 3: Table Of Contents

    Operation Manual-4CH Duplex DVR TABLE OF CONTENTS 1. INTRODUCTION ............... 3 2. DVR FEATURES ............... 3 3. PHYSICAL UNIT .............. 3 3.1 Front Panels (Please take actual machine model as quasi)....3 3.2 Rear Panel (Please take actual machine model number as quasi)..4 3.3 Remote Control (optional)..........
  • Page 4 Operation Manual-4CH Duplex DVR 6.6.9 F/W Upgrade ....................20 6.7 Language....................... 21 6.8 Logout........................21 6.9 Exit......................... 21 7. VGA SET (optional) ......................22 8. PLAYBACK WITH TIME SEARCH FUNCTION.............. 22 9. BACKUP via USB memory stick ..................22 10. RECORDING LENGTH ....................24 11.

  • Page 5: Introduction

    Operation Manual-4CH Duplex DVR 1. INTRODUCTION THE VX4SL system provides total video security solution for 4-channel digital surveillance system supporting duplex (simultaneous playback and record) functionality. Either front panel buttons or remote control unit or mouse can operate all DVR menu setting.

  • Page 6: Rear Panel (Please Take Actual Machine Model Number As Quasi)

    Operation Manual-4CH Duplex DVR (a) GREEN (PWR): The DVR unit is powered up and running. (b) RED (HDD): System is in Recording Mode or in Playback Mode. ● USB PORT Use this port to backup with USB disk. Note: For some machine model USB port is on the rear panel. ●...

  • Page 7: Remote Control (Optional)

    Operation Manual-4CH Duplex DVR each (CH1-CH4) camera connection. ● VIDEO OUTPUT Use this port to connect DVR to the monitor. ● AC-DC POWER ADAPTER JACK Connect the power adapter into DVR and plug the power cable into the wall. Some DVR models do not have a power adapter so you may not see this. In case, just plug power cable from the behind the DVR into the wall.
  • Page 8 Operation Manual-4CH Duplex DVR Also user can press this button to increase value when adjust parameters. ⑸ Quad Use this button for full screen display for quad display on the monitor screen. If you push this button, DVR will display all 4 channels (cameras) at the same time in quad screen. ⑹...

  • Page 9: Getting Started

    Operation Manual-4CH Duplex DVR stopped. To continue playback, push the “PLAY” button. ⑿ Menu / ESC It displays menu option or will be to the previous. ⒀ UP / DOWN To change a menu field, use the “UP” or “DOWN” buttons. ⒁...

  • Page 10: Hardware Setup

    Operation Manual-4CH Duplex DVR 5. HARDWARE SETUP 5.1 Hard Disk Drive Installation The method of hard disk drive installation is different according to different DVR. Some DVR is built in fixed HDD rack and some DVR is built in removable HDD rack. If building in fixed HDD rack, user must draw out the cover of DVR first.

  • Page 11: Mouse Connection (Only For Some Models)

    Operation Manual-4CH Duplex DVR and plug in the camera’s power adapter. “VIDEO OUT” on CAMERA “VIDEO IN” on DVR (Only for some models) 5.4 Mouse Connection Connect PS/2 mouse with the port below on the system. And PS/2 Mouse must be connected to DVR before startup system.

  • Page 12: Setup

    Operation Manual-4CH Duplex DVR 6. SETUP After installing a new hard drive on the system, user had better to format the hard drive first. If the system includes login window, and there are three password levels in the system, including admin (highest), operator, and guest (lowest). If the user does not login the system, he can only view live video display.
  • Page 13 Operation Manual-4CH Duplex DVR use it to login the system for the first time. After system boot-up, hold a right mouse click button and there will be suggestive window options on the monitor (Fig (a)). Hold a left mouse button to click the icon “ ”. You will see the screen below on the monitor (Fig (b)).

  • Page 14: Camera

    Operation Manual-4CH Duplex DVR 6.1 Camera Use this option for video color adjustment for each channel (1,2,3,4). Go to DISPLAY option to enable or disable for screen display of each camera. Modify camera name of each channel that user wants to. 6.2 Record Use this option to choose the channel (1,2,3,4) for recording.
  • Page 15 Operation Manual-4CH Duplex DVR can set frame rate as 3~30 frames per second with each channel. The max value of total frames per second with all channels is 60 frames. Press button [SEL]/[CH4] or hold the left mouse button to click icon “►” to increase the record frame rate for each channel.

  • Page 16: Alarm (Optional)

    Operation Manual-4CH Duplex DVR the following chapter “MOTION DETECTION”) (Optional) 6.3 Alarm Using [SELECT] button or hold a left mouse button to click icon “◄” / “►”, adjust parameters of each option. A: [BUZZER DURATION] It sets the buzzer duration time (in seconds) after alarm is activated.

  • Page 17: Screen

    Operation Manual-4CH Duplex DVR The keypad and mouse control instructions are below. [Using keypad or remote control button] Press [SEL] once to pitch on the area, pr ess [SEL] twice to cancel the area. CH1 - Up / CH2 - Down / CH3 - Left / CH4 - Right [Using Mouse button] While holding a left mo use click button, move the mouse to select, deselect or reselect the...

  • Page 18: Audio (Only For Some Models)

    Operation Manual-4CH Duplex DVR Hold a right mouse clic k button, there will be some irons on the screen as follows “ ”. Hold a left mouse button to click each iron to select. －“▲”for up, “▼” for down, “◄” for left, “►” for right, “ ”...

  • Page 19: Hard Disk Setup

    Operation Manual-4CH Duplex DVR 6.6.1 Hard Disk Setup [OVERWRITE ENABLED] If you choose Yes, recording continues and overwrites previous recording when hard disk drive space is full. If you choose No, the recording stops when the hard disk drive is full. It won’t record until “overwrite enable”...

  • Page 20: Account Setup

    Operation Manual-4CH Duplex DVR .6.2 Account Setup Only user log in the system at admin level, the Account Setup allows the administrator to add new users, delete existing ones and modify the user’s name/password/and level. The system allows up to 4 user accounts.

  • Page 21: Clear Account Info

    Operation Manual-4CH Duplex DVR — CH1 for up, CH2 for down , CH3 for left, CH4 for right. And the same operation measure to input new passw ord and confirm password. When password change succeed, user will see the below message blowing.

  • Page 22: Event List

    Operation Manual-4CH Duplex DVR To move the cursor on the screen, use “UP” and “DOWN” key on the DVR front panel or remote control and then press “SELEC T” button to change the numeric value. Once you finish time setting, press “MENU” button. Then press “DOWN” key and “SELECT” button to apply the new time set.

  • Page 23: Language

    Operation Manual-4CH Duplex DVR that contains a firmware file. [CAUTION]: 1. Do not turn off the system while the system is upgrading. Otherwise, it will cause the breakdown of the system that needs a special recovery process. 2. If you don’t in stall a HDD in the DVR, the system can’t be upgrade.

  • Page 24: Vga Set (Optional)

    Operation Manual-4CH Duplex DVR 7. VGA SET tional) Some machine mode l number has VGA output port. User can press button [Resolution] on the panel to adjust VGA resolution (1600 *1200,1280*1024, 1024*768, 800*600). 8. PLAYBACK WITH TIME SEARCH FUNCTION This is an enhanced playback option, which enables the user manual ly to...
  • Page 25 Operation Manual-4CH Duplex DVR playback. And then press “MENU” button. Use “UP” key or “DOWN” key to move the prompt, then press “SELECT” button to set the start time and the end time of the recorded video data, which will be saved on back-up devices. If you want to setup the end time faster, you can press the button [►...

  • Page 26: Recording Length

    Operation Manual-4CH Duplex DVR 10. RECORDING LENGTH Video System is “PAL”. Estimate record time basing on 320G Byte HDD. The best record quality is 3, and the lowest recor d quality is 1. DATA RATE Record Time Record Speed REC Quality (GB/Hour) (Hour) 50F/Sec...

  • Page 27: Button Function

    Operation Manual-4CH Duplex DVR 11.3 Button Function 1. Open File 2. Fast Backward 3. Play Reverse 4. Previous Frame 5. Pause 6. Next Frame 7. Play 8. Fast forward 9. Still Capture 10. Split 1 11. Split 4 12. Volume Scroll Bar 13.
  • Page 28 Operation Manual-4CH Duplex DVR still capture. Click the left mouse button to select folder that you want to, for example select the folder as “E: \VOC 4CH\backup”. ) In “Options” window, you can setup other menu selection such as “General & On screen isplay date/time format”.
  • Page 29 Operation Manual-4CH Duplex DVR Thirdly click “ ” to select input file and output file, and click “ ” to select video compression mode. Finally click “ ” to start, and progress will be showed at percentage. Note: 1、When selecting video compression mode, user had better to test the compression that he selects is matching with his computer whether or not.
  • Page 30 Operation Manual-4CH Duplex DVR “Capture” on screen. The “Output Size” is the size of output file. Left click “ ” to setup save path. Then left click “ ”.

  • Page 31: Appendix

    Operation Manual-4CH Duplex DVR 12. APPENDIX 12.1 Fitting Come Along With DVR (Please take actual machine model number as quasi) 1. Power Adapter 1pcs 2. Power Cord 1pcs 3. Remote Control (optional) 1pcs 4. User Manual 1pcs 5. USB Drive CD 1pcs 6.

  • Page 32: Model Voc 4Ch Dvr Series Used The Compatible Usb Stick

    Operation Manual-4CH Duplex DVR 12.2 Model VOC 4CH DVR series used the compatible USB Stick. In case the noise occurs on USB line due to a variety of reasons such as power noise, it might cause the error while data transferring process. In this case, it require re-transfer the date on memory stick.

  • Page 33: Specification

    Operation Manual-4CH Duplex DVR HD Brand HD Model No. Capacity Origin WD7500AAKS-00RBA0 Western Digital 750GB Thailand (5VDC 0.7A/12VDC 0.55A) WD5001ABYS Western Digital 500GB Thailand (5VDC 0.7A/12VDC 0.55A) WD10EACS-00D6B0 Western Digital 1.0TB Thailand （5VDC 0.7A/12VDC 0.55A） WD20EADS-00R6B0 Western Digital 2.0TB Thailand （5VDC 0.6A/12VDC 0.45A）...
