Sharp LMV Series Operations & Parts Manual

Hide thumbs Also See for LMV Series:
Table of Contents

Advertisement

Quick Links

OPERATION & PARTS
MANUAL
LMV
Sharp Industries, Inc.
3501 Challenger Street
Torrance, CA 90503
(310) 370-5990 Fax: (542-6162)
www.sharp-industries.com

Advertisement

Table of Contents
loading

Related Manuals for Sharp LMV Series

Summary of Contents for Sharp LMV Series

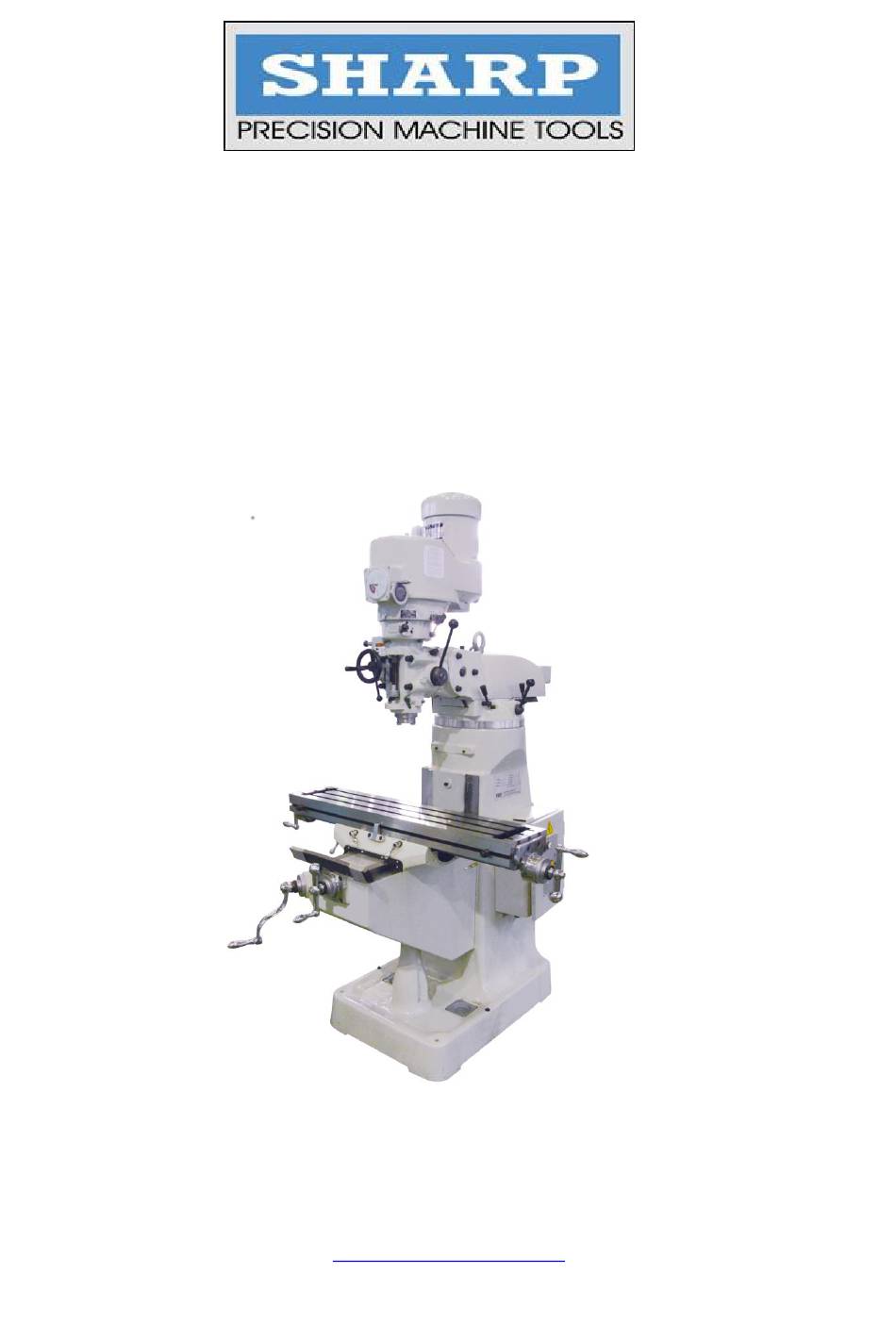

  • Page 1 OPERATION & PARTS MANUAL Sharp Industries, Inc. 3501 Challenger Street Torrance, CA 90503 (310) 370-5990 Fax: (542-6162) www.sharp-industries.com...

  • Page 2: Table Of Contents

    CONTENTS Forward ........................ 1 Safety Rules and Regulations ................1 MODEL LMV VERTICAL VARIABLE SPEED MILL..........Specifications ........................Uses ........................... Machine Parts........................Headstock Cooling System ..................... Lubrication ........................Operation Instructions: Headstock ........................Mill Body........................Unpacking, Moving, and Floor Space ................. Alignment ........................

  • Page 3: Forward

    4. Caution should be taken when removing chips from work surface. 3. Notice: Retrofitting the Sharp Mill with a CNC control, such as Sony, AcuTire, Anilam or other similar controls without the installation of an approved auto-lube system will void the warranty on that machine.

  • Page 4: Specifications

    SHARP VARIABLE SPEED MILLING MACHINE 1. Specifications: STANDARD SPECIFICATION INCH SPECIFICATION INCH Spindle speed 50HZ 50-3750 rpm WORK TABLE 60HZ 60-4500 rpm Working area of table 49 x 9 Machine Net Weight 1.01 kg Table Travel 36.6 Saddle Travel Knee Travel...

  • Page 5: Machine Parts

    3. Machine parts: 1. Headstock: Power Feed Engagement Crank (I) High/Low Lever (J) Speed Selector (G) Quill Feed Lever (H) Brake Quill Feed Selector (C) Micrometer Adjustment Feed Nut (K) Reverse Knob (D) Quill Lock Feed Handwheel Feed Control Lever (F)
  • Page 6 DVS HEAD Emergency Stop Speed Meter Forward/Reverse Switch Speed Knob Brake...
  • Page 7 2. Machine Body: 1. Columns, Turret, and Ram: Adaptor Lock Bolts (B) Vertical Adjusting Worm Ram Lock Ram (F) Turret (D) Column Gib Bolt (I) Figure 4...
  • Page 8 2. Tables, Saddle, and Knee: Vertical Travel Stop (A) Work Table Lock (J) Saddle Lock Knee (L) Knee Lock Lever (G) Knee Elevating Lever (F) Ball Crank Handle (K) Figure 5...

  • Page 9: Lubrication

    5. Lubrication: 1. Head: Mobilux Alvania Cornex Grease Listan Grease Grease Grease E.P.NO1...
  • Page 10 2. Table, Saddle, and Knee The ways, saddle, knee and leadscrews are oiled by means of Position a manually operated pump, located on the back side of knee. Frequency 2 pumps 3 to 5 times daily Lubricant Shell Tonna 33 Figure 8...

  • Page 11: Headstock

    6. Operation: 1. Headstock: Power to the motor is controlled by a three way switch, forward, reverse, and off (Fig. 9). When the high-low speed change lever (Fig. 3 (J), Page 3) is in high gear position and the switch is in FOR., the spindle rotation is clockwise.
  • Page 12 Manual Feed: The manual feed lever is located on the right side of the headstock (Fig. 3 (H), Page 3). This lever controls the vertical movement of the spindle. For the operator’s convenience the lever can be adjusted as needed. Note: in manual feed, the feed control handle “F”...
  • Page 13 Automatic feed: Procedure for using this function is: Loosen the quill lock “L” (Fig. 3, Page 3) Place the power feed transmission lever “I” (Fig. 3, page 3) in the “IN” position. Place feed speed lever “C” (Fig. 3, Page 3) in the desired position.
  • Page 14 g. Spindle speed change: The speed of spindle is controlled by a set of sliding belt pulleys and a counter shaft gear. There are two options (High and low). High gear is for RPM from 500 to 3,000 and low gear for RPM from 60 and 580. When high-low lever “J”...
  • Page 15 Tilting the headstock (Fig. 14): To tilt the head up or down, evenly loosen the three adapter locking bolts (P) and move to desired angle using adjusting worm shaft “Q”. Re-tighten the adapter bolts. NOTE: do not remove adapter bolts. Cross tilting the headstock (Fig.
  • Page 16 2. Machine Body Operation: 1. Ram movement (Fig. 17): To move ram in or out, loosen Ram lock levers “A” and move to desired position using handle “B” and retighten levers. To swivel ram, loosen the four bolts “C”, move to desired position and retighten bolts “C”.
  • Page 17 2. Setting handwheel dials to zero (Fig. 18): a. Loosen lock ring “D”. b. Turn dial “E” to zero and tighten lock ring “D”. 3. Locking the table, saddle, and knee: To increase the stability of the mill and maintain a good workpiece finish, all non-feeding surfaces should be locked down.

  • Page 18: Unpacking, Moving, And Floor Space

    7. Unpacking, moving, and floor space: a. Methods of moving machine: Prior to unpacking or removing from skid, the machine should be moved by the use of a forklift or reinforced cable (Fig. 20 & 21). Removal from the skid and any further movement of the machine should be done by the use of a reinforced cable or by the eye bolt located in the top of the ram.
  • Page 20 b. Unpacking: To protect the machine while in transit it is necessary to cover it with a rust proof coating and a crate or plastic wrapping. In the event, there is damage due to moisture, please contact our agent or the transporter. After unpacking, make sure all tools and accessories are intact.
  • Page 22 7. Machine Alignment: Maintaining close tolerances and proper alignment of the machine is critical to producing quality-machining results. Please see the following table of Precision Inspection.
  • Page 23 Variable Speed Head Trouble shooting Problem Possible Cause Solution Align Upper and lower head not Replace either to match Consistent noise in both aligned Replace H348 spindle High and Low gear (Quiet Spindle spline and hub do bearing set or H349 top in Neutral) not match bearing if no chatter is...
  • Page 24 Variable Speed Head Trouble shooting Problem Possible Cause Solution Intermittent Noise (Comes Drive belt stiff from Normal & goes) sitting overnight Noisy on first start up, goes away after 10 to 20 minutes High pitch shriek when Motor shaft needs Lubricate motor shaft (Do start up over 2,500 RPM lubrication...
  • Page 25 Variable Speed Head Trouble shooting Problem Possible Cause Solution Auto Quill Feed does not work: Wheel responds to feed Damaged worm gear Replace worm gear (H060) reverse knob nut does not and check for alignment feed Auto feed only works in Broken bevel gear Replace bevel gear (H115 one direction...

  • Page 26: Trouble Shooting

    8. Trouble Shooting: 1. Removing Motor (Fig. 25): While running motor reduce speed to 60 RPM. This will lower the stationary motor vari-disc to its lowest position. Temporarily disconnect the power source. Remove motor pulley cover “B” under the motor shaft, remove grease fitting.
  • Page 28 2. Replacing the Speed Change Belt Refer to steps a. to g. on page 24 for removing motor. Remove drawbar. Remove bolts “J” from bearing housing “K”. Use 2 of the bolts to push housing off of the housing “T”. Remove the 2 bolts “L”...
  • Page 30 3. Brake Block Replacement (Fig. 27): Refer to steps a. to g. on page 24 and steps b. to g. on page 26. Remove the four bolts “V” (Fig. 28) so housing “T1” can be removed. It may be necessary to use a soft mallet. (Housing “T1”...
  • Page 31 4. Replacing Timing Belt: Follow disassembling procedures outlined in steps a. to g. on page 24 and steps b. to g. on page 26 and steps b. on page 28. Change the timing belt as shown in Fig. 28. Reverse above order to re-assemble.
  • Page 32 5. Adjusting leadscrew backlash: A. Y-axis backlash adjustment: Move saddle to the middle of its travel. Remove 4 bolts “I” on bearing bracket “G”. Lock saddle and turn hand crank “F” clockwise to separate bracket “G” from the knee. Unlock saddle and move screw until adjusting tool fits into the space.
  • Page 33 B. X axis backlash adjustment; Move the work table to the center of the saddle. Insert large end of adjusting tool into the left side of the saddle and turn lock nut “J” counter clockwise approximately one turn. Using small end of tool tighten adjusting nut “K”. After adjusting nut “K”, use large end of tool to re-tighten lock nut “J”.
  • Page 34 6. Adjusting Gibs: After a period of time the gibs may become loose or worn and may need to be adjusted to maintain the integrity of the mill. A. Table Gib (Fig. 32): The table gib is located between the saddle seat and the table dovetail.
  • Page 35 B. Saddle Gib (Fig. 33) The saddle gib is located between the left side of the saddle and knee dovetail, and it can be adjusted as follows: Loosen saddle lock “A”. Move saddle to the front of knee. Remove wiper holder “B” on saddle. Clean and lubricate sideways.
  • Page 36 C. Knee Gib (Fig. 34) The knee gib is located between the left side of knee and column dovetail, and it can be adjusted as follows: Loosen knee clamp (Fig. 5, Page 5). Remove wiper holder “Q”. Clean and lubricate sideways. Raise knee to its uppermost position.
  • Page 37 E. Collet Alignment Screw Replacement: First mark the location of nose piece “B” to its position to quill “A”. b. Remove set screw “C” located on nose piece. Remove nose piece by inserting an adjustable spanner in two holes in the bottom of nose piece.

  • Page 38: Maintenance

    10. Maintenance “Maintenance is more important than repair, and repair is better than purchase.” The life of a machine can be greatly reduced if it has been properly maintained and operated. The result will be premature wear, inability to hold tolerance and poor finish on the workpiece.
  • Page 39 11. Notice: 1. Machine Operation: Machine must be installed on a solid base. b. Be sure the machine base and surface have proper contact before tightening anchor bolts. c. Be sure motor voltage conforms to the source voltage and properly grounded. d.
  • Page 40 PARTS LIST...
  • Page 42 PART NO. DESCRIPTION SPECIFICATION Q'TY 1500-C035 9"×49" Table 1500-D011 Left Bearing Bracket HADA-W10141 3/8"×1" Bolt HPB-0530 Ø 6×25 Overload Clutch Lever Spring Plunger BR-51105 51105 Bearing AW05-25MM AW05 Lock Washer HAN05 AN05 Locknut Washer 1500-D021 Dial Holder 1500-D016 Dial (Mertic Graduation 250mm) 1500-D006 Dial Nut 1500-D026...
  • Page 43 1500-C049 Saddle Knee Gib 1500-C059A Saddle Lock Plunger 1500-C037A Table Lock Bolt Handle 1500-C039 Saddle Lock Plunger 1500-C044 Felt Wipers HADA-W10141 3/16" ×5/8" Cross-Recessed Head Screw 1500-C042 Table Stop Bracket HADA-W10030 3/8" ×5/8" Bolt 1500-C155 Front Rubber Chip Cover Shaft Bracket HAEC-W150050 Cross-Recessed Head Screw HCAP-M05010...
  • Page 45 PART NO. DESCRIPTION SPECIFICATION Q'TY L-C271 Body 1500-C125 Back cover HCAP-M06015 M6× 15 Hex-Soket Head Cap Screw 1500-C130 Filter Oil Net HCAP-M05010 M5 × 10 Hex-Soket Head Cap Screw 1500-C170B Level Screw And Nut HBBE-W070 W7/8*32*18 1800-C146 Leveling Pads 1500-C103 Elevating Screw Housing 1500-C139 Elevating Screw Nut(Metric)
  • Page 46 1500-C088 Dial Holder 1500-C138 Dial With 125 Graduation(Metric) 1500-D006 Dial Nut 1500-C085 Gear Shaft Clutch Insert 1500-C084 Elevating Crank 1500-C083 Ball Crank Handle Lever 1500-C118 Spider 1500-C124 Turret 1500-C111 Turret-Ram Gib 1500-C127 Locking Bolt 1500-C128 Ram Pinion Set 1500-C110 Gib Lock Screw HWS-3/8 3/8"...
  • Page 47 1500-C142 Rubber Chip Cover ( Front, Wave) HAEC-M05010 M5×10 Cross-Recessed Head Screw 1500-C135 Rubber Chip Cover ( Rear, Flat )
  • Page 49 PART NO. DESCRIPTION SPECIFICATION Q'TY 1500-B192 Milling Head L-H166 Spindle 1500-B026 Stop Block 5/16"x5/8" 5/16"x5/8" Hex Socket Head Cap Screw 1500-B194 NT30 L-H172 1500-B134 Spindle Dirt Shield BR-7207 7207 Bearing 1500-B137 Bearing Spacer (Large) 1500-B136 Bearing Spacer (Large) L-H176 Sleeve BR-6206 6206 Bearing...
  • Page 50 1500-B091 Washer 1500-B092+B093 Overload Clutch Worm Gear HSTW-S15 S-15 Snap Ring C-Type 1500-B081 Over Load Clutch 1500-B080 Overload Clutch 1800-B079 Safety Clutch Spring 1500-B078 Overload Clutch Locknut HSET-M05005 M5×5 Set Screw 1500-B075 Clutch Ring 1500-B096 Overload Clutch Trip Lever 1500-B074 Clutch Ring Pin HPB-0518 Ø...
  • Page 51 1500-B104 Trip Handle 1500-A046 1/4" Black Plastic Ball 1/4" Dia HPB-0520 Ø 5×20 Overload Clutch Lever Spring Plunger 1500-B123 Trip Plunger Bushing 1500-B113 Hand wheel Clutch 1500-B115 Compression Spring 1500-B116 Hand wheel Clutch Spring Screw HSET-W020020 1/4"×1/4" Set Screw HSTW-E5 SNAP RING E-Type 1500-B111 Feed Reverse Knob Stud...
  • Page 52 HKE-2R-3310 3×3×10 Flat Key 1500-B015 Feed Reverse Bevel Gear 1500-B013 Washer HCAP-M08016 M8×16 Hex Socket Head Cap Screw BR-BA0606 BA66 Bearing 1500-B054 Set Screw M6x25 HSET-M06006 M6×6 Set Screw 1500-B016 Feed Engage Pin 1500-B018 Worm Gear Cradle Throw-Out 1500-B019 Shift Sleeve 1500-B020 Gear Shift Plunger 1500-B021...
  • Page 53 1500-B183 Reverse Trip Ball Lever 1500-B185 Reverse Trip Ball Lever Screw 1500-B147 Indicator Rod 1500-B154 Indicator Rod Screw N1500-B159 Micrometer Scale N1500-B195 Micrometer Scale(Inch) 149 HAEC-W100015 1/8"×3/16" Cross-Recessed Head Screw 1500-B155 1/2"-12 Nc Tee Bolt 1500-B156 Lower Clamping Bolt Spacer HWA-N4 1/2"...
  • Page 55 PART NO. DESCRIPTION SPECIFICATION Q'TY Motor HCAP-W030100 3/8"×1" Hex Socket Head Cap Screw L-H658 Up COVER #8-32×3/8" Hex Socket Head Cap Screw L-H505 Upper Pulley Box L-H669 REAR COVER HCAP-W015040 #10-24×1/2" Hex Socket Head Cap Screw 1510-G087 (R8) Draw Bar L-H515 Top Bearing Bracket HCAP-W020040...
  • Page 56 HBBE-W050-10 5/8" L-H563 Pullet Set 1500-A025 230H Timing Belt 1500-A024 Timing Belt Pulley Flange L-H565 Cover HCAP-W015040 #10-24×1/2" Hex Socket Head Cap Screw BR-6203 BR-6203 Bearing L-H564 Bull Gear Pinion Counter Shaft HKE-2R-0515 5×15 HKE-2R-0620 6×20 L-H569 Bull Gear Pinion Counter Gear L-H554 Brake cam L-H550...
  • Page 57 HAAF-W015100 #10-24×1" Screw 1510-T093 Spring Supported Pin 1510-T055 Spring L-H503 Gear Housing Belt HAAF-W015030 #10-24×3/8" Hex Socket Head Cap Screw L-H572 Spindle Pulley Hub L-H571 Spindle Bull Gear Assembly L-H576 Bull Gear Bearing Sleeve 1510-T048 Bull Gear Bearing Sleeve Washer BR-6908 BR-6908 Bearing...
  • Page 58 E-OPB-02004 Emergent Switch E-OPA-01025 Emergent Switch 1510-T090 Spacer L-H682 Nameplate Sharp L-H659...
