BOTTLE-FREE WATER DISPENSER
OWNER'S MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOTTLE-FREE WATER DISPENSER and is the answer not in the manual?

Questions and answers

Summary of Contents for Permatech BOTTLE-FREE WATER DISPENSER

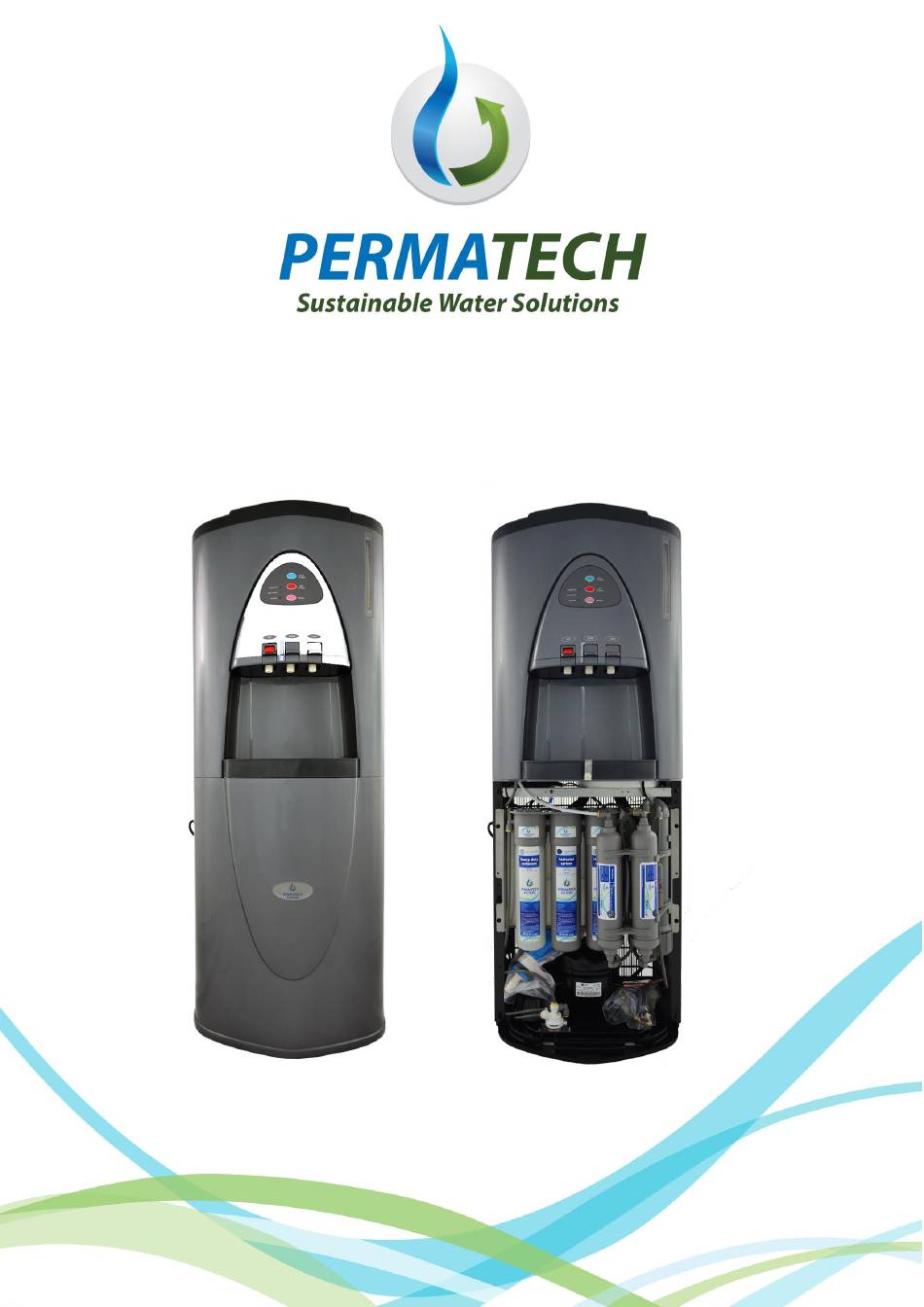

  • Page 1 BOTTLE-FREE WATER DISPENSER OWNER’S MANUAL...
  • Page 2 This Bottle-Free Water Dispenser is based on Reverse Osmosis System and is a perfect source of crystal clear cold, warm and hot water to be installed at home or office. You have now become the owner of the highest quality Water Distributor, which will provide you with crystal clear water without the necessity to use water bottles.

  • Page 3: Table Of Contents

    CONTENTS Page BEFORE YOU INSTALL THE WATER DISPENSER SAFETY ISSUES WATER DISPENSER BASIC ELEMENTS OPERATING FUNCTIONS OF WATER DISPENSER EQUIPPED WITH AN RO SYSTEM Water filtration Tank filling Water cooling system Flow restrictor WATER DISPENSER BASIC TECHNICAL PARAMETERS INSTALLATION SCHEMES Water installation scheme Electrical installation scheme USEFUL INSTALLATION TIPS...

  • Page 4: Before You Install The Water Dispenser

    BEFORE YOU INSTALL THE BOTTLE-FREE WATER DISPENSER CAUTION: Do not push the “HOT POWER” button until the main water tank is filled with water. CHECK RAW WATER INLET: COLD raw water must fulfill certain conditions. Please refer to the specificaton outlined on p.8. If raw water does not fulfill the required technical parameters, then the Moelcular Reverse Osmosis system will not work properly and cartridges and membrane lifetime may be substantially reduced.

  • Page 5: Water Dispenser Basic Elements

    3. WATER DISPENSER BASIC ELEMENTS Water level indicator Cold water tank Control panel Cooling system condenser Hot water tap Water release mechanism Cool water tap Refrigerating compressor Cold water tap Water feeder Cup coaster Drain saddle Top cover Power supply cable Front cover...

  • Page 6: Operating Functions Of Water Dispenser Equipped With An Ro System

    1. Top cover 2. Outside cool water tank cover 3. Inside cool water tank cover 4. Steam outlet opening 5. Steam outlet cover 6. Hot water tank 7. Cool water tank 8. Electric floating valve 4. OPERATING FUNCTIONS OF WATER DISPENSER EQUIPPED WITH AN RO SYSTEM WATER FILTRATION Sediment cartridge (prefilter) –...

  • Page 7: Tank Filling

    Reverse Osmosis Membrane – STAGE 4 The RO membrane is a tightly wound special membrane. The membrane removes the dissolved solids such as calcium carbonate, chlorides, nitrates etc. and organic matter when the water is forced through the cartridge. High quality product water exits the RO cartridge and goes to the storage tank or to the postfilter and RO faucet. Rejected water with the dissolved solids and organic matter is routed through the flow control valve and to the drain.

  • Page 8: Water Dispenser Basic Technical Parameters

    5. WATER DISPENSER BASIC TECHNICAL PARAMETERS 2,2 – 6,0 bar Raw water pressure range 2 – 38 °C Raw water temperature range Cooling system Freon-free Max inlet TDS 1500 ppm Max chlorine concentration level 2.0 ppm Content of minerals in raw water min.

  • Page 9: Installation Schemes

    6. INSTALLATION SCHEMES WATER INSTALLATION SCHEME 1 – Water feeder (3/8” , 1/2” , 3/4”) A – Sediment cartridge (prefilter) B – Sediment cartridge (prefilter) 2 – Drain saddle C – Activated carbon cartridge (prefilter) 3 – Flow restrictor (QC-type) D –...

  • Page 10: Electrical Installation Scheme

    ELECTRICAL INSTALLATION SCHEME Electrical scheme Electrovalve CNC Low pressure switch Floating valve with a switch Power supply socket - Voltage ~230 V; 50Hz Power supply cable with plug WATER DISTRIBUTOR CW-929 Control panel a- LED POWER diode e- microswitch COLD POWER b- LED KEEP WARM f- microswitch HOT POWER diode...

  • Page 11: Useful Installation Tips

    7. USEFUL INSTALLATION TIPS Filter System uses Quick Connection type style fittings. These fittings only require you to simply push the tubing firmly into each fitting. Connecting standard the QC push-in fitting 1. Remove yellow locking clip from the fitting. 2.

  • Page 12: Installation Of Drain Saddle

    5. Close the ball valve and then open the main shut-off valve or cold water inlet valve in order to check for possible leakages. 6. Use teflon tape to seal th threaded connections. 7. Connect the ball valve with the filter by the use of 1/4” elastic tube, which is included in the filter set. INSTALLATION OF DRAIN SADDLE 1.

  • Page 13: Rinsing Prefilters

    RINSING PREFILTERS 1. Remove the front cover. 2. Disconnect 1/4” tube from solenoid valve (scheme on page 9) and put into the bucket. 3. Open the cold water valve. 4. Rinsing for 5 minutes. 5. Then close the cold water valve. 6.

  • Page 14: Water Dispenser Operation Conditions

    9. WATER DISPENSER OPERATION CONDITIONS PRECAUTIONS Make sure that the space Do not install the distributor close to any between the wall and distributor is at least 10cm sources of heat or places exposed to sun Do not pour coffee, tea, milk or any Keep away from children similar liquids to the water tank.

  • Page 15: How To Get Water Of A Required Temperature

    HOW TO GET WATER OF A REQUIRED TEMPERATURE 1. After you connect Water Distributor to power supply press “HOT POWER” button. “POWER ON” light will be When water is boiled to 100 °C, the light on the control panel will change from “HEATING” to “KEEP WARM”. Water Distributor fills in the main water tank and keeps it warm even at different intervals, without the necessity to press “REBOIL”...

  • Page 16: Membrane Exchange

    CAUTION: Replacement period depends on raw water quality. It is advisable to periodically control prefilters' condition in between the required period of filter replacement and record the results. These results will allow to prepare an individual service programme adjusted to particular raw water conditions 10.3 MEMBRANE EXCHANGE Follow the instructions below in order to exchange membrane.

  • Page 17: Trouble Shooting

    11. TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Lack of power supply in the main Check the connection to electrical electrical system system and all cables. Fill in the main water tank with water The system switches on and press “HOT POWER” and/or LACK OF POWER SUPPLY automatically when water level is “COLD POWER”...
