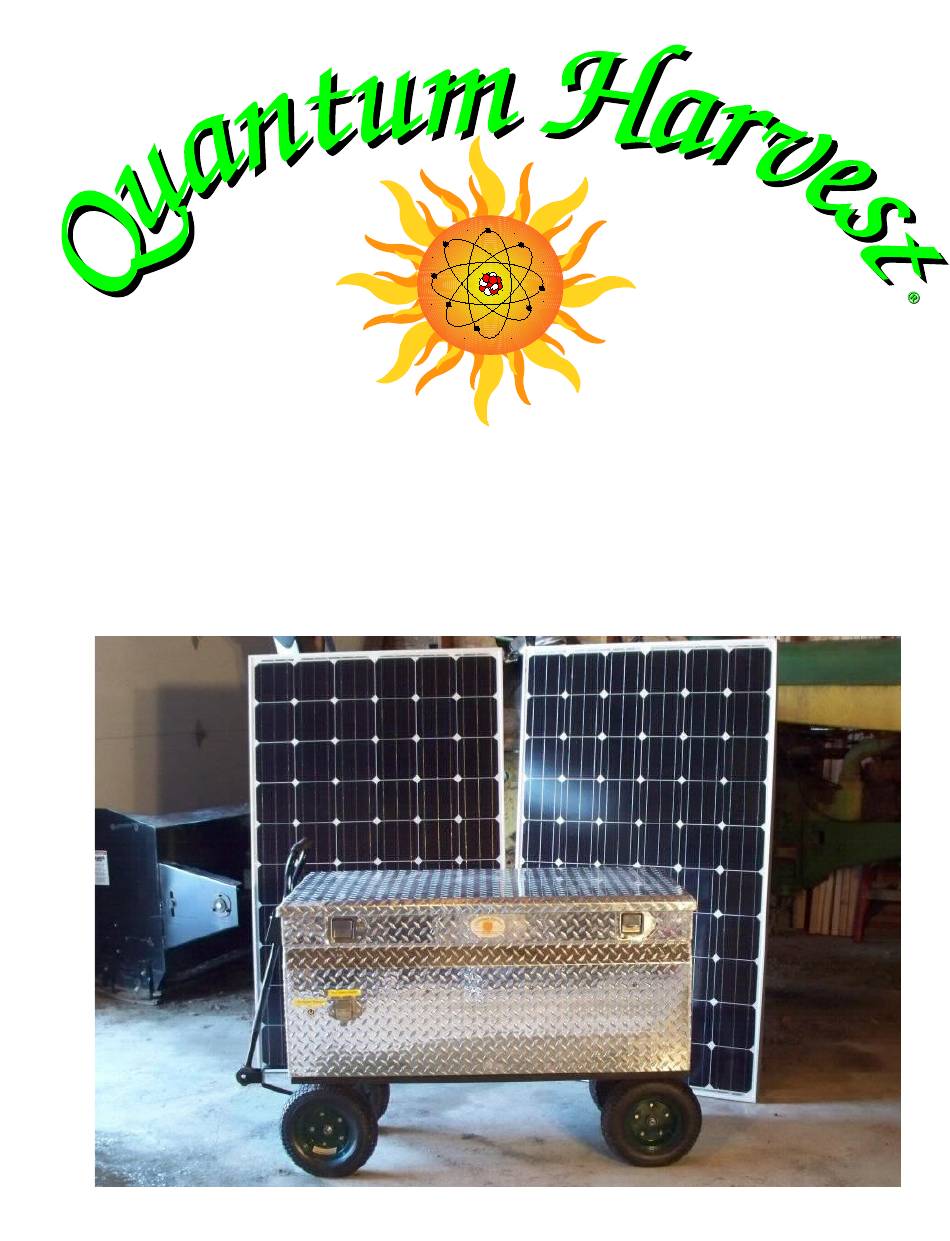

- Page 1 Portable Solar Faraday Power Stations Enclosures Owner's Manual Quantum Harvest Model 5000-60 TSW quantumharvest.net...
- Page 3 DC current from the batteries into the high voltage AC current that we are familiar with. (All Quantum Harvest power stations also have 12 volt DC receptacles and USB charging sockets for the appropriate devices, in addition to standard 120 volt AC house current.) The inverter is protected internally from overheating and low battery voltage, and externally from over-current draw by a 300 ampere ANL type fuse.
- Page 4 Coronal Mass Ejection, or CME. All Quantum Harvest power units are built into a specially designed enclosure, more properly called a Faraday Cage, named after Michael Faraday, an early pioneer in electromagnetic research.
-
Page 5: Table Of Contents
Table of Contents Specifications..................Page 4 Note on Batteries.................Page 5 Section 1....Capacities and recommended usages.....Page 6-7 Section 2....Controls/Circuit Protection Devices.......Page 8-10 Section 3....External Ports and Connectors......Page 11-12 Section 4A..General Operation and Routine Maintenance..Page 13 Section 4B..Connecting and Using the Solar Panels....Page 14 Section 4C..Charger..............Page 15 Section 5A..Power Board Removal, Re-installation....Page 16-18 Section 5B..Battery Removal, Re-installation......Page 19-25... -
Page 6: Specifications
Base Unit Specifications Assembled Dimensions: 57.5” Long (includes wagon tongue, base cabinet is 47” Long), 24.75” Wide by 34.75” High Assembled Weight: 800 lbs. Inverter: AIMS PICOGLF60W24V230VS True sine-wave, 24 volt Battery Bank: 8 AGM Deep-Cycle Batteries, 110 amp/hrs each. Battery Bank Capacity: Amp/hours;... -
Page 7: Note On Batteries
In this manual, the following symbols are used to highlight important facts: Denotes circumstances where failure to follow the procedures outlined in the manual may result in property damage. Denotes circumstances where failure to follow the procedures outlined in the manual may result in personal injury or death. Always remember that electricity is utterly devoid of mercy and never grants second chances! Note on Batteries... - Page 8 Section 1: Capacities and recommended usages This 5,000 watt model is the next-to-largest true sine-wave unit we currently produce, and with it's premium, marine-grade AIMS inverter with proven soft-start technology, will reliably start and power anything within it's capability, even fussy items that will not run with cheaper, modified sine-wave inverters.
-
Page 10: Section 1
Section 2: Controls/Circuit Protection Devices There is one main fuse, a 300 ampere ANL type fuse, shown to the right, located beside the inverter. There is one spare fuse included in the spare parts kit. To replace the fuse, first, be sure the main switch is turned off, then, using a 9/16”... - Page 11 Detail of Main Panel Circuit Breakers 15 amp breakers (3) for 120 volt outlets. 10 amp (2) for 12 volt DC outlets 5 amp for USB charger, 220 volt AC breaker Detail of AC Charger 40 amp automotive-style fuses There are no adjustments or maintenance required for the AC charger; all it's functions are fully automatic.
- Page 12 Detail of Solar Charger/Controller and related circuit-breakers There are no adjustments or maintenance required for the solar charger; all it's functions are fully automatic. Right; The solar charge controller is protected by 2, 70-amp circuit-breakers. To avoid damage to the solar controller, it is important that it be used in accordance with the instructions on page 14.
-
Page 13: Section 2
Section 3: External Ports and Connectors The external ports/connectors for attaching the power cord for the AC charger and the solar panels are located on the latch side of the unit. External Connector Location (Model 3000 shown, but Model 5000 ports and location are the same.) AC Charger port Insert the plug into the socket with the silver tab on top, and turned slightly to the left. - Page 14 Solar Panel Connector Port To connect, lift the cover, and oriented as shown with the boss on top, slide the connector into the socket. Please note that the cover has a latch-pawl to prevent the jack from creeping out. To remove, lift the cover slightly to disengage the latch, and remove the jack.
-
Page 15: Section 4A
Section 4A: General Operation and Maintenance WARNING! The base unit is NOT water-proof, and must be stored and used in a dry location. Wind-driven rain will ruin the inverter, and worse, set up conditions where people or pets may be electrocuted. Also, please take note that in addition to the above very real danger, the warranty does not cover water or other weather-related damage to any of the components! -
Page 16: Section 4B
Section 4B: Connecting and using solar panels. Step 1: Be sure both circuit-breakers to the solar charge controller are switched off. Step 2: Connect the jack from the panels into the port on the generator base unit. Step 3: It is very important to switch the charge controller to battery bank circuit-breaker (bottom one) on first, then the charge controller to solar panel circuit-breaker (upper one) on next. -
Page 17: Section 4C
Section 4C: AC Charger When you are finished with the unit, unplug the solar panel assembly, coil the cable on the brackets and stow the assembly in a safe place. Switch off the inverter, then turn the main switch to the off position. Wheel the unit to a safe, indoor location, and plug the AC charger cord into a wall socket and plug the other end into the appropriate socket on the side of the base unit. -
Page 18: Section 5A
Power Board Assembly Removal and Re- installation All Quantum Harvest power stations feature a modular construction that allows faulty components to be easily removed and returned to us for repair, without the necessity of having to crate up the entire heavy unit and paying the costly shipping charges for an 800+ lb. - Page 19 Step 3: Below; Remove the screws securing the plastic cable guards on the end of the inverter closest to the control panel, and remove the guards. Using a 1/2” wrench or socket, remove the nuts and cables from the DC side of the inverter. Step 4: Right;, Disconnect the 4 connectors detailed below, and place all the cables up and...
- Page 20 Reverse the above steps to re-install. IT IS VERY IMPORTANT THAT THE INVERTER CABLES NOT BE CROSSED. BE ABSOLUTELY SURE THAT THE RED CABLE CONNECTS TO THE RED TERMINAL AND THE BLACK CABLE TO THE BLACK TERMINAL. THE INVERTER IS NOT PROTECTED FROM CROSS-POLARITY OF THE DC INPUTS, AND SEVERE EQUIPMENT DAMAGE WILL RESULT IF THEY ARE CROSSED!
-
Page 21: Section 5B
Section 6B: Battery Removal/Re-installation Tools Required: 9/16” socket or wrench, 7/16” socket or wrench, #2 Phillips screwdriver, pair of pliers or 2 9/16” wrench. *Caution* Although the low voltage at the battery terminals means that electrical shock or electrocution is impossible, nonetheless, batteries store an enormous amount of potential energy, that if accidentally released by a short-circuit, can melt metal tools, start fires and cause personal injury. - Page 22 Battery numbering schematic Battery #1 Battery #2 Battery #3 Control panel end. Control panel removed for clarity. Battery #4 Battery #5 Battery #6 Battery #7 Battery #8 NOTE: The battery cables are all labeled with either white or yellow labels. Please note that the 4 white-labeled cables, A, B, C, D are black, and are the only ones that go to both red (positive), and black (negative) battery terminals.
- Page 23 Battery Installation Instructions *Caution* Although the low voltage at the battery terminals means that electrical shock or electrocution is impossible, nonetheless, batteries store an enormous amount of potential energy, that if accidentally released by a short-circuit, can melt metal tools, start fires and cause personal injury.
- Page 24 Battery cable placement chart Cable letter cable color goes between battery terminals Black/white label Battery #4 (+) to Battery #5 (-) Black/white label Battery #6 (+) to Battery #7 (-) Black/white label Battery #2 (+) to Battery #1 (-) Black/white label Battery #8 (+) to Battery #3 (-) Red/yellow label Battery #3 (+) to Battery #7 (+)
- Page 25 Cable A Cable B Cable C Cable E Cable D Cable F...
- Page 26 Cable G Cable H Cable I...
- Page 27 Cable J Cable L Cable K Step 3: Install the flat washers, lock washers, and nuts onto the bolts, ans tighten securely. Double check that the cables are routed and connected properly, and all 16 nuts are tight. Step 4: Reinstall the plastic battery shield, and power board support; tighten the support nuts securely, and reinstall the power board.
-
Page 28: Section 5C
Section 6C: Control Panel Removal/Replacement The only reason this assembly would have to be removed is for repair. Tools needed: 9/16” socket or wrench; 3/8” wrench; #2 Phillips screwdriver Step 1: Remove the power board. (Pages 16-18) Step 2: Remove the batteries. (Pages 19-25) Step 3: Right: Remove the nut securing the black cables to the... - Page 29 Step 5: Right; There is a single, smaller red wire connected to the battery #1 positive terminal that supplies 12 volts to the USB ports and the 2, 12VDC outlets. It may be disconnected without removing the battery wires by pulling apart the single black connector.
-
Page 30: Contact Information
Contact Information Quantum Harvest, LLC 89 Chapman Ridge Rd. Athens, ME 04912 Email: support@quantumharvest.net... -
Page 31: Warranty Information
Warranty Information All Quantum Harvest power station base units and mobile solar panel units are warranted to be free of defects in materials and workmanship for: Batteries, if provided by us...............1 year Inverters, AC chargers and solar charger/controllers......3 years Everything else, including solar panels...........5 years To obtain warranty service, contact us at: support@quantumharvest.net... -
Page 32: Addendum A
Addendum A Solar Panel Diode Replacement Note that each panel has a diode junction box, thus, the 300 watt triple panel assembly has 3 boxes and 6 diodes in total. To gain access to the blocking diodes, remove the cover by inserting a thin-bladed screwdriver into the slot and gently prying inward to release the catch. - Page 33 Loosen the 3 screws, and slip the replacement diodes in as shown. It is VERY IMPORTANT to orient the diodes properly. The silver stripe goes in the direction of the arrow. Snug the screws back up, being very careful not to strip the threads.
