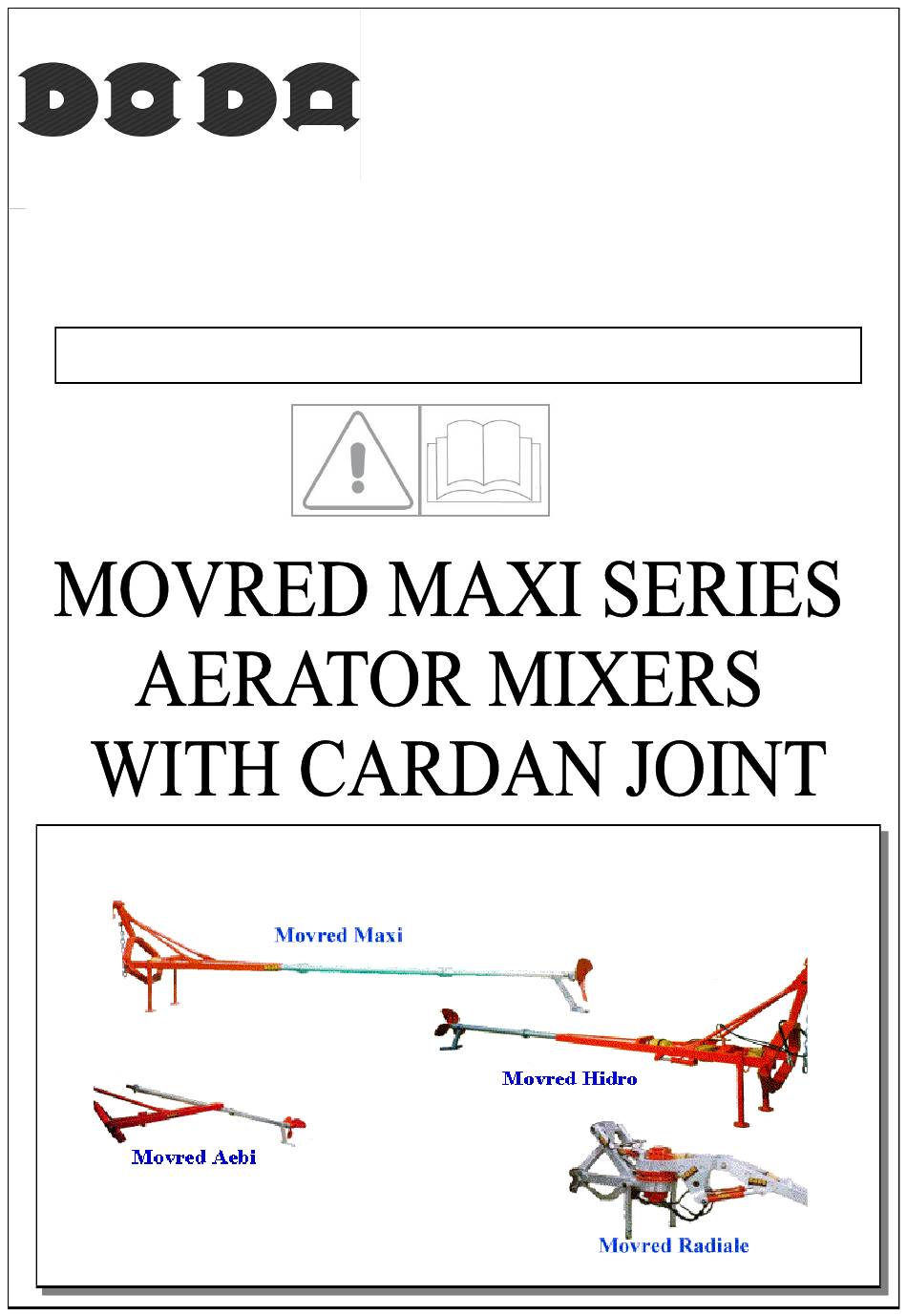

- Page 1 ® COSTRUZIONE MACCHINE AGRICOLE di DODA ALDO & C SNC Via Sante Salmaso 18/20 46010 BUSCOLDO (MN) ITALY Tel. +39 0376/410043 - Fax. +39 0376/410032 http://www.doda.com Email: doda@doda.com USE AND MAINTENANCE BOOKLET...
- Page 2 The data, images and performances identified in this booklet are purely indicative. The manufacturer reserves the right to make any change or modification, without providing any notice to users.
- Page 3 SYMBOLS USED IN THE MANUAL The following symbols will be used in the manual to highlight information and warnings of particular im- portance: MEANING SYMBOL NOTE This symbol indicates that it is prohibited to perform manoeuvres and operations with the machine which may, under certain condi- PROHIBITION tions, pose a risk to the safety of the operator, to the machine itself, or to adjacent parts/structures.
-
Page 4: Table Of Contents
DODA thanks you for purchasing a product in its range and invites you to read this booklet. Inside you will find the necessary information for correct use of the machine you have purchased. Please, therefore, follow the instructions contained herein and read the booklet in all its parts. -
Page 5: Introduction
The galvanised structure, oil bath transmission system and quality of the materials used guarantee the long life of the machine and its simple maintenance. Technologically, we have also applied the concept adopted for other DODA products to this machine: "Highest quality to obtain the maximum reliability and durability."... - Page 6 pg. 2 MOVRED MAXI GAZZO fig. 2 MOVRED MAXI AEBI fig. 3 This machine is a variant of the Movred Maxi, and as such the technical and manufacturing specifications are the same; the difference is that this model offers the option to rotate the transmission pipe, for better insertion in narrower tanks.
- Page 7 pg. 3 MOVRED RADIALE fig. 5 This machine is a variant of the Movred Maxi, and so the technical and manufacturing specifications are the same; the difference is that this model offers the option to rotate the transmission pipe both horizontally and vertically, for better insertion in narrower tanks. Thanks to the hydraulic pistons and the fifth wheel with hydraulic motor, the mixing propeller can be positioned while the operator remains seated on the tractor.
-
Page 8: Machine Loading And Unloading
pg. 4 2. MACHINE LOADING AND UNLOADING fig. 6 The machine loading-unloading operation can be carried out: - using a forklift truck; - using a hoisting crane. N.B.: the carrying capacity of the sling must be at least seven times the total weight of the machine (if it is made from textile fibre). -
Page 9: General Warnings
(by connecting the cables of the electric motor to the power to the power or the pump to the tractor by cardan shaft). DODA is in no way responsible for the electrical connections (please follow the instructions on the motor plate and the sticker which indicates rotation direction). -
Page 10: Preliminary Checks
pg. 6 Before operating the machine, it is essential to read the instructions contained in the Use and Maintenance Booklet. In par ticular, ensure that you have fully under - stood the operation of the machine. The machine was designed and constructed to treat water and sewage, but not chemical products. -
Page 11: Positioning And Transportation
pg. 7 5. POSITIONING AND TRANSPORTATION N.B.: for all car dan joint machines, connect the car dan shaft between the tr actor 's power take off and the machine unit. In order to operate properly, the cardan shaft must be parallel to the ground during operation. Also ensure that the chain, supplied to protect the cardan joint, is attached to the dedicated ring. -
Page 12: Operation
pg. 8 MOVRED AEBI This machine enables insertion in even narrower tanks, thanks to the independent rotation of the transmission pipe: unscrew the handwheel (A), open the hose clamp (B), rotate the transmission pipe until it is in a vertical position, position the mixing propeller inside the tank, return pipe 1 to the hose clamp and tighten the handwheel. - Page 13 IMPORTANT! pg. 9 -Ensure that the length of the cardan shaft can compensate for the machine movements (tilting and height differences); in all working conditions, the telescopic pipes must overlap by at least 1/3 of their length when fully ex- tended, or by at least 1/2 of their length when fully compressed, and must retain at least 10 cm of play...
-
Page 14: Working And Safety Guidelines
pg. 10 7. WORKING AND SAFETY GUIDELINES During working and inspections of the machine, wear appropriate clothing (overalls, gloves, helmet, safety shoes, fastened clothes, etc..). The machine should be used in appropriately lit areas. Given that gases emitted by sewage are poisonous, check that: -the work area is adequately ventilated;... -
Page 15: Maintenance
Change the oil in the two units of the Movred Radiale every 100 hours, using 3 lt of SAE 90 for each see figure 16 . fig. 16 fig. 15 Contact DODA authorised dealers directly for all spare parts . 9. STICKERS The stickers found on the machine are the following: IMPORTANT: prior to use, fill with oil up to the level (SAE 90). -
Page 16: Performance And Technical Data
3) PRODUCT IDENTIFICATION CODE 4) MACHINE TYPE 10. PERFORMANCE AND TECHNICAL DATA There are numerous technical details which guarantee the high reliability and long life of a DODA pump: - Fully hot-galvanised structure. - Oil bath transmission. - Widia-Widia mechanical seal. -
Page 17: Ec Declaration Of Conformity Directive 2006/42/Ec As Amended
EC DECLARATION OF CONFORMITY DIRECTIVE 2006/42/EC AS AMENDED DODA di Doda Aldo & C. S.n.c. Via Sante Salmaso, 18/20 46010 Buscoldo (Mantova) DECLARE UNDER OUR EXCLUSIVE RESPONSIBILITY THAT THE PRODUCTS MOVRED MAXI SERIES AERATOR MIXERS TO WHICH THIS DECLARATION REFERS CONFORM TO THE REQUIREMENTS OF DIRECTIVE 2006/42/EC AS AMENDED. - Page 18 ® COSTRUZIONE MACCHINE AGRICOLE di DODA ALDO & C SNC Via Sante Salmaso 18/20 46010 BUSCOLDO (MN) ITALY Tel. +39 0376/410043 - Fax. +39 0376/410032 http://www.doda.com Email doda@doda.com...
