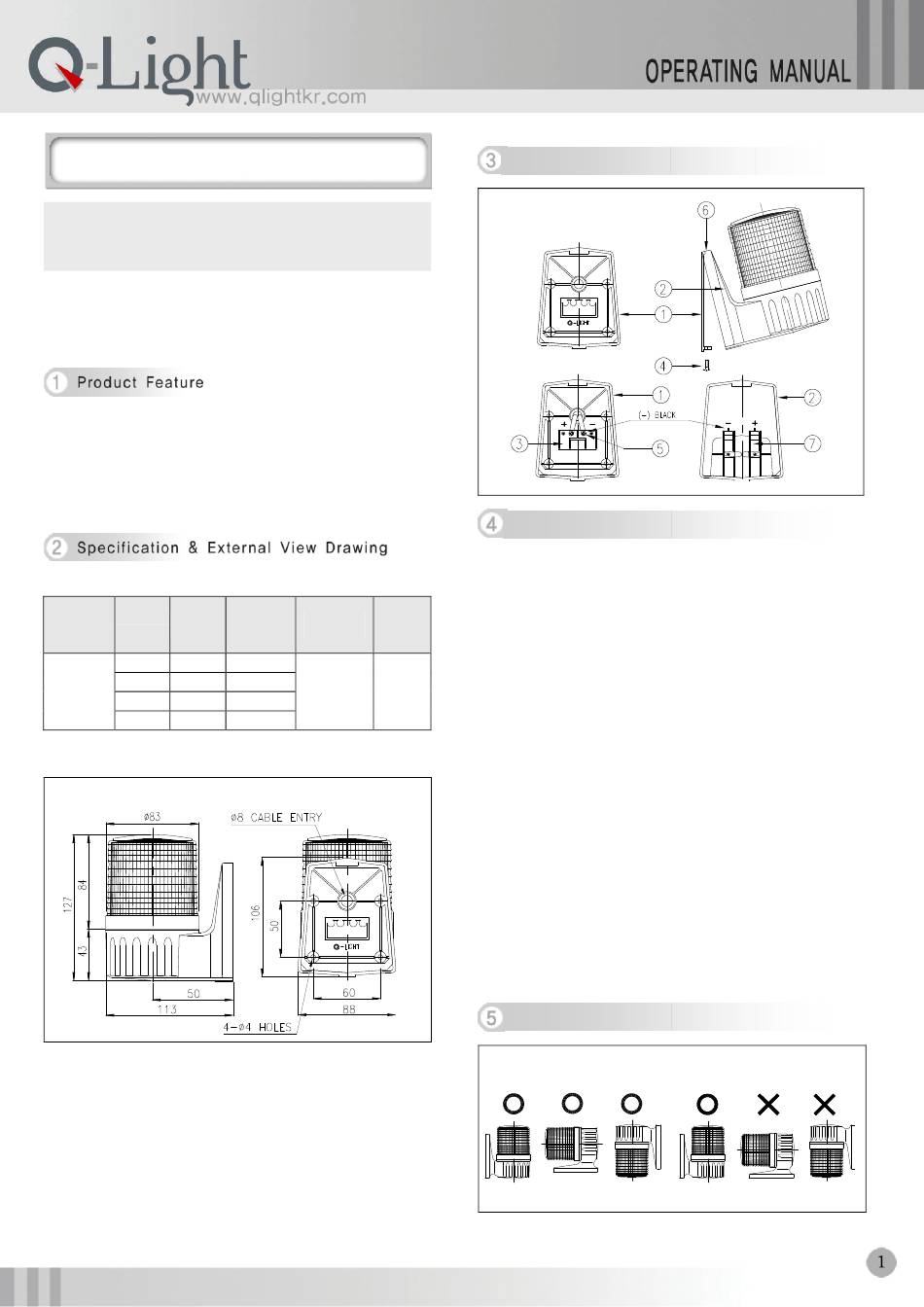

Q-Light S80AS Operating Manual

S80AS
OPERATING MANUAL
Xenon Lamp Strobe Light
Thank you for purchasing Q.Light product. Please read this
manual carefully before installing this product for safe and long
use.
▪ Suitable for a bright place and a signal transfer for a long
distance with a strong strobe signal light.
▪ Easy to change its lamp by taking a connector type lamp.
▪ Material : Lens-AS, Body-ABS
▪ Flashes : 60-80/Min.
▪ Protection Class : IP44
▪ General Specification
Rated
Model Current
Voltage
DC12V 0.433A
DC24V 0.216A
S80AS
AC110V 0.076A
AC220V 0.061A
▪ External View Drawing
Weight Flashes Color
0.28Kg
RED-R
0.28Kg
AMBER-A
60~80/min.
GREEN-G
0.26Kg
BLUE-B
0.26Kg
S80AS

Product Structure

Wiring Instruction

This item can connect power lines to the plate element located
at the bottom board of this item. Please read carefully this
instruction to wire.
1).Separating the bottom board and the body
Releasing the bolts(M4-1EA)④ which connected the bottom
board. and separate the bottom board① and the body② then
check inside.
2).Connecting power lines
Please connect power lines refer to the upper product structure.
Releasing the bolts(M4-2EA)⑤ attached on the plate element③
and connecting O type terminal or Y type terminal linked with the
power lines outside.
▪ In case of product using AC voltage, connect the line without
Polarity(wire color).
▪ In case of product using DC voltage, black line is negative(-).
※ After finishing the power lines connection and attached the
product well, the electric power supplies by the plate element⑦
on the body②.

Mounting

Indoor Outdoor
