Dawner Prince Electronics RED ROX Owner's Manual

w w w . d a w n e r p r i n c e . c o m
TM
RED ROX OWNER'S MANUAL
Congratulations! You have just purchased a RED ROX from Dawner Prince E
It is an effect pedal capable of delivering anything from ultra clean tones all the way to a 'grease-melting' distortion.
Red Rox is a top quality guitar effect pedal
with audiophile quality components and true bypass switching system incorporated.
MASTER (potentiometer) 1
controls the output volume level. You can adjust your Red Rox to the same volume
as your bypass signal (unity gain) or volume it up for a fatter tone - there is plenty volume on tap!
CONTOUR (potentiometer) 2
controls the frequency emphasis overall. In the middle position is a balanced presentation of the
overall frequencies; clockwise it becomes midrange pronounced and counterclockwise
it becomes midrange scooped.
TONE (potentiometer) 3
controls the frequency emphasis on the highs coming out of the distortion section. You can easily cut or
add the upper frequences to the tone.
PREAMP (potentiometer) 4
controls the amount of distortion in the signal and can take your guitar tone from completely clean
all the way to a full, fat and thick distortion - there is a great deal of flexibility.
TRUE BYPASS SWITCHING SYSTEM with STATUS LED (footswitch) 5, 6
switches the effect ON and OFF. When in ON mode, status LED will glow red.
IN and OUT (jack) 7, 8
IN jack (7) takes signal from guitar or previous effect pedal in chain. OUT jack (8) delivers signal to the
amplifier or to the next effect pedal in the chain.
POWER SUPPLY (jack) 9
Unit operates at voltages from V DC up to 18V DC. Use regulated adapter 9V DC-18V DC/100mA. 9
Red Rox has built in reverse polarity power protection circuitry.
Dawner Prince E
Zmijavci, Croatia
info@dawnerprince.com
www.dawnerprince.com
lectronics !
, fully professionally designed and handmade
lectronics Ltd

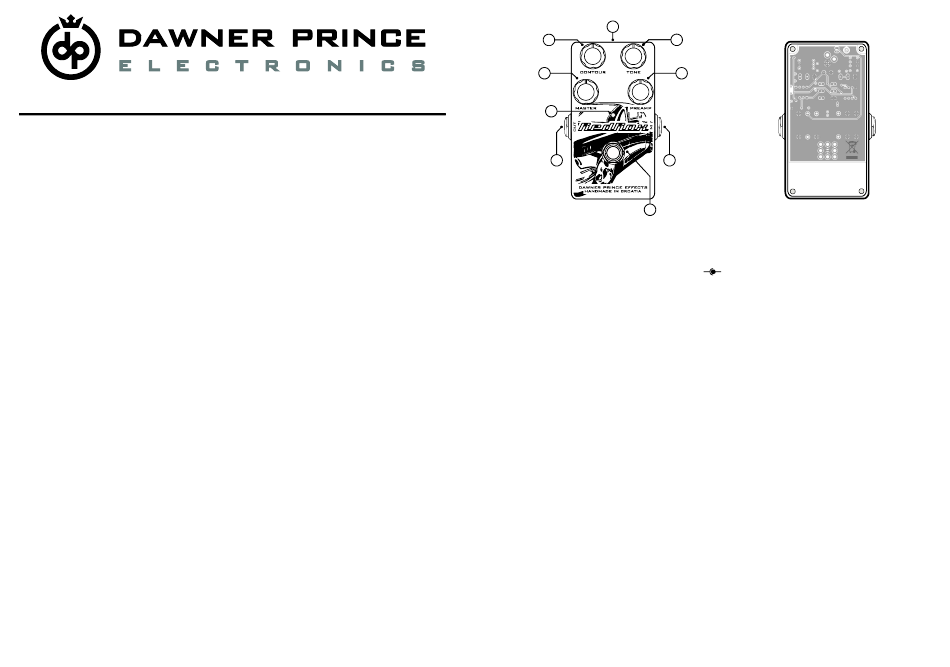

FRONT PANEL VIEW
9
2 3
1 4
6
8 7
5
SPECIFICATIONS:
Input impedance: 1 Mohm
Output impedance: 1 Kohm
Power supply:
Adapter 9V-18V DC, 9V battery
Power supply connector type: Barrel, 5.5mm/2.1mm, center negative,
Current draw (typical at 9VDC): ~ 9.5 mA
Lenght: 91 mm / 3.58 inch
Width (W/O jacks):
116 mm / 4.17 inch
Height (W/O potentiometers): 34 mm / 1.33 inch
Weight (W/O packaging): 0.245 kg / 0.54 lb
Weight (with packaging): 0.310 kg / 0.68 lb
Standard colour:
Mirror Red
WARRANTY:
Dawner Prince E lectronics warrant this product to be free from defects in materials and workmanship under normal
use and service. Dawner Prince E lectronics liability under this warranty is limited to repairing or replacing defective
materials that show evidence of defect, provided the product is returned to Dawner Prince E
RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of
Authorization number can be obtained from Dawner Prince E
service within the warranty period are paid by the owner of goods.
This warranty does not cover loss or theft of products, and excludes failures caused by misuse,
mechanical damage, liquid damage of any kind, device falling, unauthorized modification, shock surge in electricity
supply, lightning, improper storage and natural disasters. Dawner Prince E
damages resulting from the use of this product. Using the product, the customer accepts all conditions set forth
hereby. Dawner Prince E lectronics reserves the right to make changes in design, or make additions to, or
improvements upon this product without incurring any obligation to install the same on products previously
manufactured.
NOTE: The information contained in this manual is subject to change at any time without notification. Some
information contained in this manual my also be inaccurate due to undocumented changes in the product after
this version of the manual was completed. The information in this version of the owner's manual supersedes all
previous versions.
Dawner Prince E
info@dawnerprince.com
www.dawnerprince.com
INSIDE VIEW
-
+
lectronic s WITH
two 2 ( ) year . A Return s
lectronics by e-mail. Return transportation costs for the
lectronics assumes no liability for any
lectronics Ltd
Zmijavci, Croatia
