Summary of Contents for Chauvet Professional W-DMX Micro T-1 TRX G5

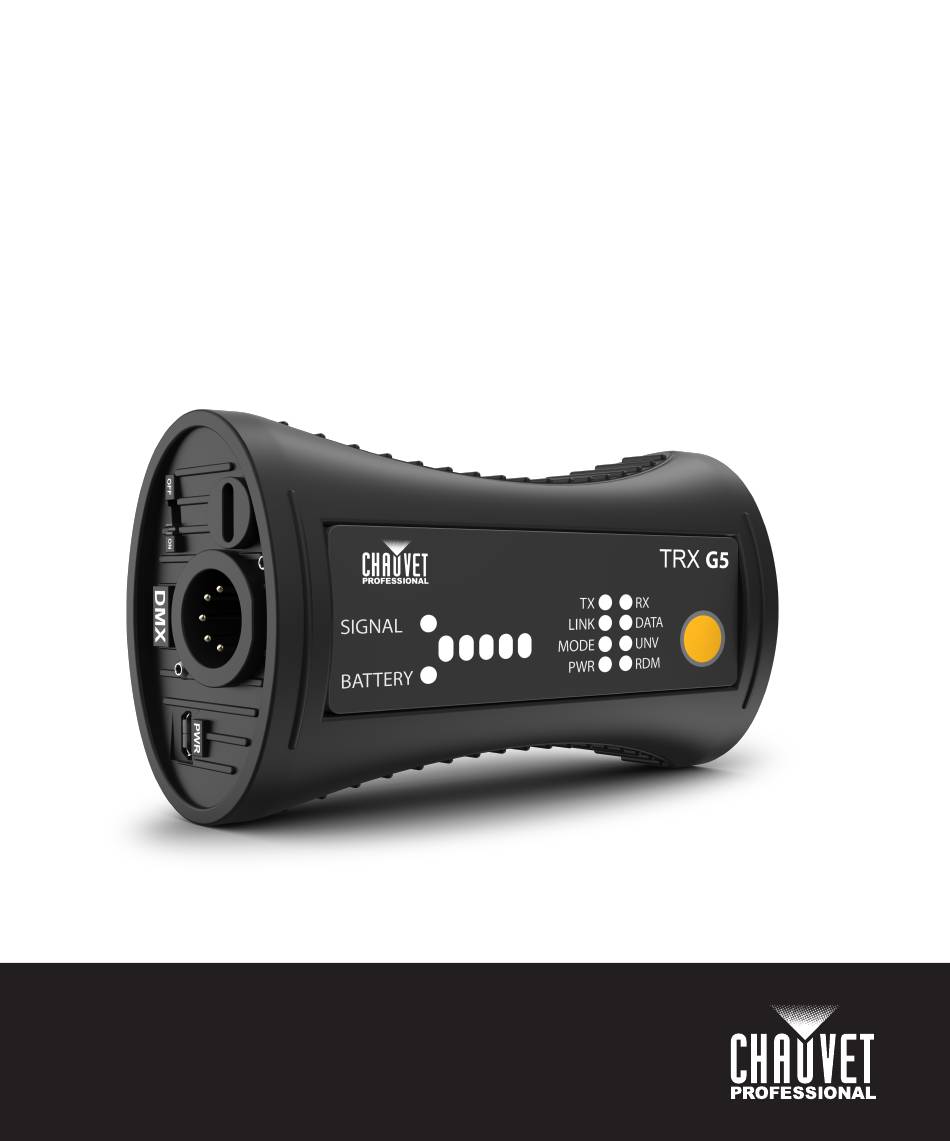

- Page 1 USER MANUAL W-DMX Micro T-1 TRX G5...
- Page 2 Edition Notes The W-DMX Micro T-1 TRX G5 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the W-DMX Micro T-1 TRX G5 as of the release date of this edition. Trademarks CHAUVET and the Chauvet logo are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
4. Operation ..................User Interface....................Basic Setup ....................Linking Devices ......................Unlinking Devices......................Flex Mode ..................... 5. Technical Information ..............Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................W-DMX Micro T-1 TRX G5 User Manual Rev. 1... -
Page 4: Before You Begin
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Page 1 of 12 W-DMX Micro T-1 TRX G5 User Manual Rev. 1... -
Page 5: Safety Notes
The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures. • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Page 2 of 12 W-DMX Micro T-1 TRX G5 User Manual... -
Page 6: Introduction
2. Introduction Description The W-DMX Micro T-1 TRX G5 Transceiver works with W-DMX wireless wash lights, including all WELL and Maverick fixtures, to generate a wireless control signal for both DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX signals to make any fixture or rig wireless. -
Page 7: Product Dimensions
Introduction Product Dimensions 3.94 in 100 mm 2.56 in 65 mm 1.57 in 40 mm Page 4 of 12 W-DMX Micro T-1 TRX G5 User Manual Rev. -
Page 8: Setup
The W-DMX Micro T-1 TRX G5 comes with 5 GHz disabled from front-interface control. To scroll through and use all the modes available for the W-DMX Micro T-1 TRX G5, the 5 GHz must be enabled first. This can be done with the W-DMX Dongle and the downloadable W-DMX Configurator software available at: https://wirelessdmx.com/download/... -
Page 9: Operation
Operation 4. Operation User Interface This section explains the labels and information on the W-DMX Micro T-1 TRX G5 user interface (see also Introduction section). Label Description Shows whether the W-DMX Micro T-1 TRX G5 is receiving/sending a SIGNAL signal or not On a transmitter, indicates the power output in mW: •... -
Page 10: Basic Setup
Linking Devices In optimal conditions, the W-DMX Micro T-1 TRX G5 can operate up to 300 m (900 ft) away from any linked device. The W-DMX Micro T-1 TRX G5 transmitter must be paired with the W-DMX receiver of the compatible device for wireless operation. -
Page 11: Flex Mode
Flex Mode The W-DMX Micro T-1 TRX G5 is a transceiver capable of operating as a transmitter or receiver. The flex mode determines if the W-DMX Micro T-1 TRX G5 is used in Transmit mode (TX) or Receive mode (RX). -
Page 12: Technical Information
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 9 of 12 W-DMX Micro T-1 TRX G5 User Manual Rev. 1... -
Page 13: Technical Specifications
XLR 5-pin male Thermal Maximum External Temperature 113 °F (45 °C) Ordering Product Name Item Name Item Code UPC Number W-DMX Micro T-1 TRX G5 MICROF1G5WDMX 99111483 781462218137 Page 10 of 12 W-DMX Micro T-1 TRX G5 User Manual Rev. -
Page 14: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 11 of 12 W-DMX Micro T-1 TRX G5 User Manual Rev. 1... -
Page 15: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record. Page 12 of 12 W-DMX Micro T-1 TRX G5 User Manual Rev. 1...
