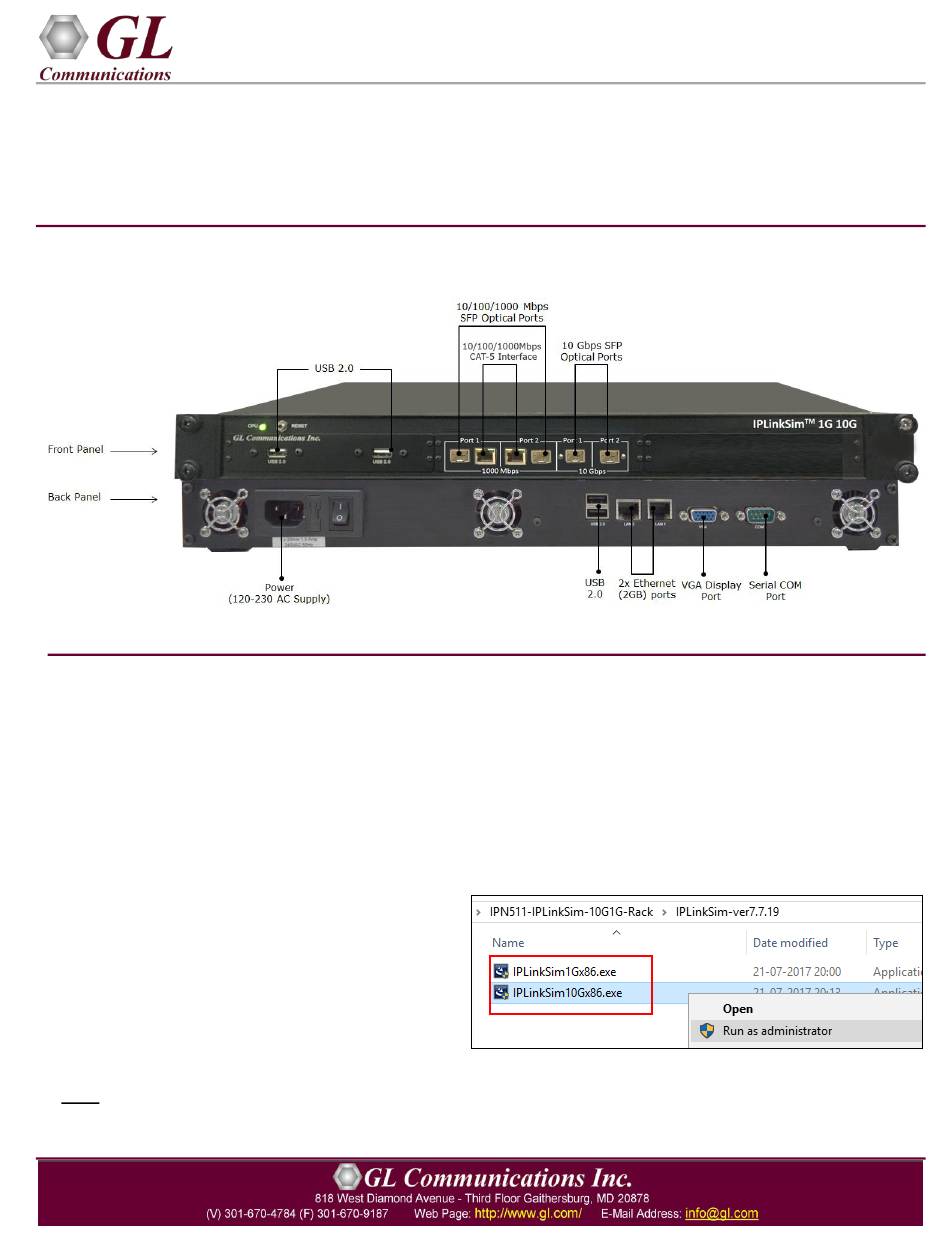

For the purchased IPLinkSim™ 10G1G (IPN511) product, you will receive a 1U rackmount network appliance
with all the necessary PC interface, Operating System, and IPLinkSim™ device. The appliance also includes
required IPLinkSim™ software, and licenses pre-installed. And therefore, you will need to only plug-in the
monitor, keyboard, mouse, connect the network appliance to the power outlet and then power on the appliance.
About IPLinkSim™ 1G10G
IPLinkSim™ (IPN511) has two 10G optical ports and two 1G (Electrical/ Optical) ports w/ Embedded Single Board Computer (SBC).
SBC Specs: 19" 1U Rackmount Enclosure, Intel Atom CPU, 4GB RAM, Windows 7 (32 bit), MSATA SSD, 2 USB Ports.
Software Upgrade
•
Connect IPLinkSim™ hardware appliance to power adapter and connect the power adapter to the AC power outlet.
•
Connect the Monitor-Keyboard-Mouse to the IPLinkSim™ appliance.
•
Switch ON the IPLinkSim™ hardware appliance.
•
Check that the CPU LED is glowing on the hardware appliance, indicating that power supply is correct
•
Plug-in the USB installation stick (pen drive) provided with the shipment package by GL Communications.
•
From the USB installation stick (pen drive), navigate to folder \IPN511-IPLinkSim-10G1G-Rack\IPLinkSim-Ver x.x-
Software.
For IPLinkSim™ 1G, right-click on IPLinkSim1Gx86.exe and select "Run as administrator".
For IPLinkSim™ 10G, right-click on IPLinkSim10Gx86.exe, and select "Run as administrator".
Note: DO NOT execute IPLinkSim*x64.exe as
IPLinkSim™ appliance is on Windows 7 32-bit OS
only.
•
Follow the onscreen instructions to complete the software installation.
Note: After IPLinkSim™ software installation, user may be prompted for additional Winpcap installation. Please make sure to
install it as well.
IPLinkSim™ 10G1G
Page 1
(IPN511)
Quick Install Guide
